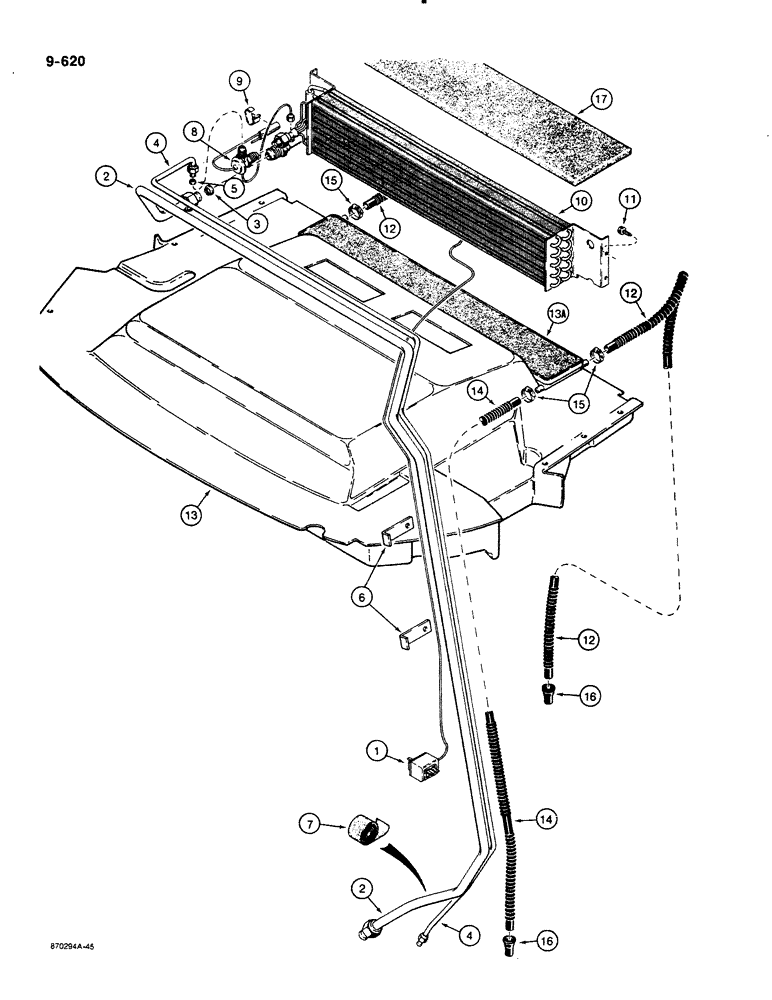

Запчасти Case 580K (09-620) - CAB AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

R52618

SWITCH

temperature control, air conditioning, see Figure 09-605 for mounting

1шт.

2

R52507

TUBE,19.05 mm OD

suction

1шт.

3

222-996

GASKET,3/4 Tube, Fl, Copper

copper, 3/4", 19 mm, tube OD, suction tube

1шт.

4

R52506

TUBE,9.33 mm OD

pressure

1шт.

5

222-993

GASKET,3/8 Tube, Fl, Copper

(9 mm), Pressure tube 3/8 Tube, Fl, Copper

1шт.

6

R53634

SHIN

CLAMP bracket, mounts to ROPS post stud with existing heater tube mounting nut

2шт.

7

A42902

SEALING STRIP

TAPE cork, insulating, bulk roll, 30 ft, 914 cm, long

1шт.

8

F64389

VALVE

expansion

1шт.

9

98156C1

CLAMP

valve sensor

1шт.

10

R52611

CORE

evaporator

1шт.

11

28286R1

SELF-TAP SCREW,Hex Washer, 1/4" x 3/4"

SCREW hex flange head, self-tapping, 1/4" - 20 NC x 3/4", plated

4шт.

12

F45410

TUBE

HOSE, 110", 2794 mm, long, cut to required length from F64508 bulk hose, front drain

2шт.

13

R54009

LINING

HEADLINER rear section, complete, with condensation pan and tubes, see Figure 09-610 for louvers, Includes: Ref. 13A

1шт.

Ref. 13, P/N R54009 headliner does not include the pan. The pan is Ref. 13A, P/N 1974613C1, and must be ordered separately

1шт.

13a

1974613C1

PAN

condensation drain, includes foam

1шт.

14

F45411

HOSE,2032.00 mm

cut to required length from F64508 bulk hose, rear drain 2032.00 mm

2шт.

15

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

16

F44790

VALVE

END rubber, drain hose

4шт.

17

F45457

INSULATOR

SEAL heater and air conditioner cores, foam, adhesive back

1шт.

F64508

HOSE,0.43" ID x 100' Bulk

drain 0.43" ID x 100' Bulk

1шт.
