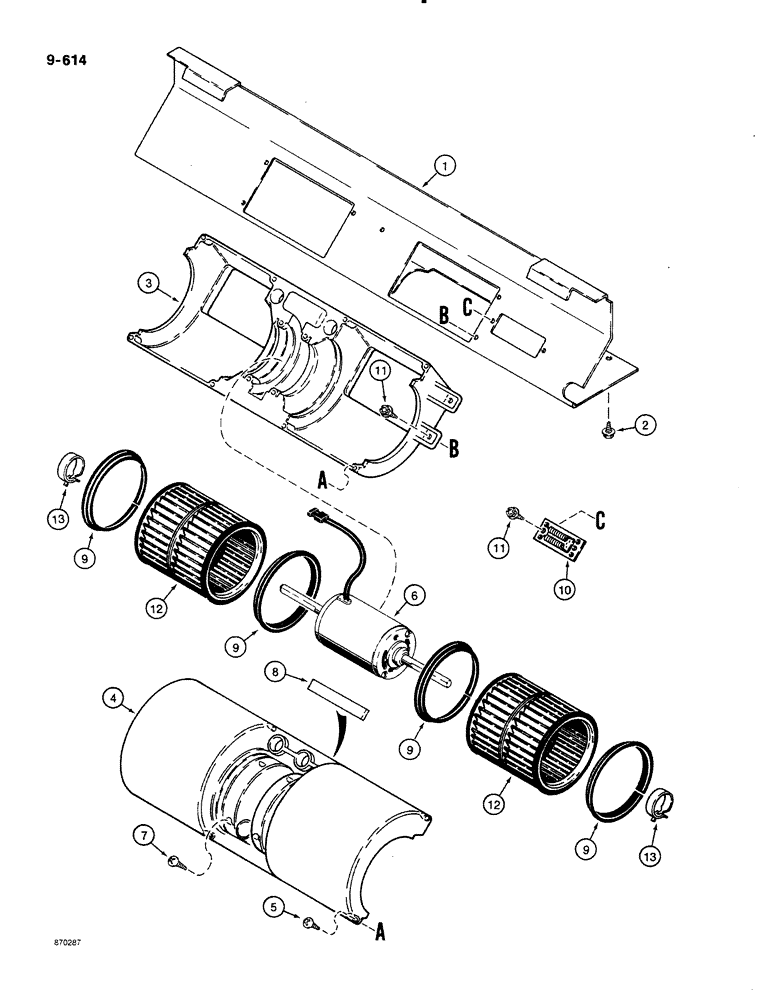

Запчасти Case 580K (09-614) - CAB BLOWER (09) - CHASSIS/ATTACHMENTS

1

D126301

BRACKET

blower mounting

1шт.

2

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

5шт.

3

F64740

HOUSING

fans, lower

1шт.

4

F64741

HOUSING

fans, upper

1шт.

5

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW pan head, self-tapping, No. 8 - 16 x 3/4", plated

8шт.

6

R54415

MOTOR, ELECTRIC

MOTOR blower, 12 volt

1шт.

7

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW pan head, self-tapping, No. 8 - 16 x 1", plated

4шт.

8

F64816

FOAM

SEAL, 3/4" wide x 1/8" thick x 4" long, cut from F64119 bulk seal, see below, foam, upper fan housing

1шт.

9

F64739

RING

plastic, fan retaining

4шт.

10

F44900

RESISTOR

blower

1шт.

11

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW hex washer head, slotted, self-tapping, No. 10 - 16 x 1/2", plated

6шт.

12

F64935

BLOWER,Fan

FAN blower

2шт.

13

F64936

CLAMP

steel spring

2шт.

F64119

SEALING STRIP

SEAL bulk, foam, 100 ft, 3048 cm, long

1шт.
