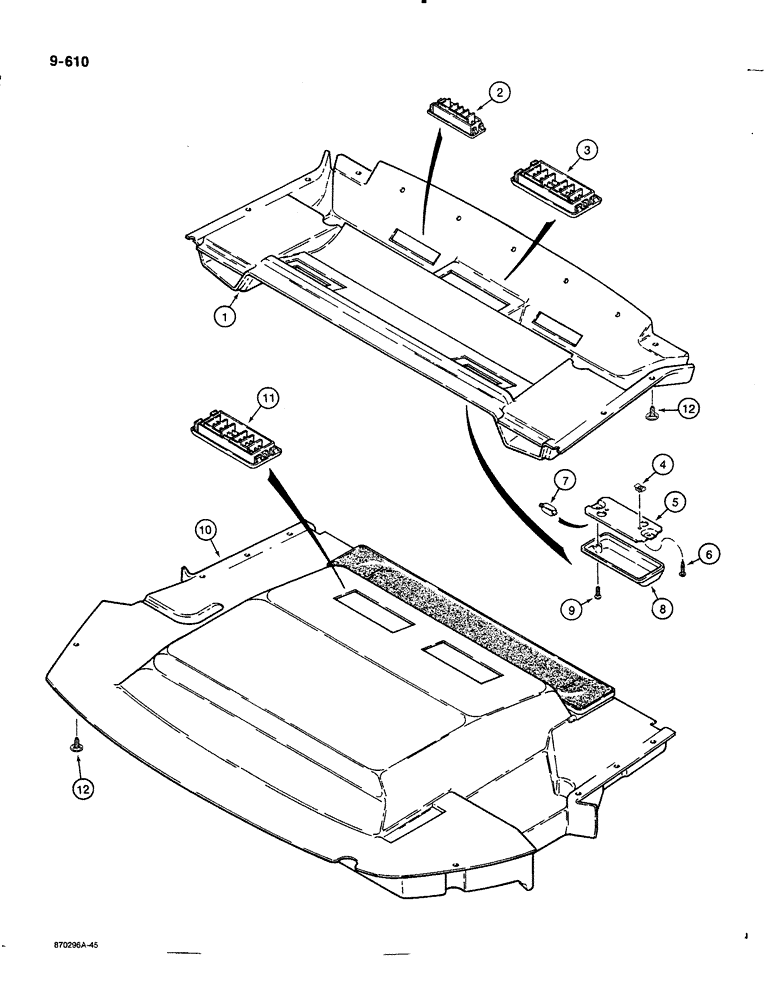

Запчасти Case 580K (09-610) - CAB HEADLINER, LOUVERS, AND DOME LAMPS (09) - CHASSIS/ATTACHMENTS

1

R54000

LINING

HEADLINER front section

1шт.

2

R54201

GUARD

LOUVER front defrost

2шт.

3

L109555

GUARD

LOUVER main, front headliner

3шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

Cab dome lamp retaining Tinn, U, #10-24

4шт.

Ref. 4, P/N 131-861 clip - Can substitute P/N 131-121 nut, if desired.

1шт.

R53755

LIGHT ASSY.,12V

DOME LAMP ASSEMBLY, 12 volt, front headliner, Includes: Ref. 5 thru 8

2шт.

5

NSS

NOT SOLD SEPARAT

BASE dome lamp

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW special, Serial Range: base-headliner

2шт.

7

N14466

BULB

dome lamp

1шт.

8

N14465

LENS

dome lamp

1шт.

9

182-526

SCREW,Cross Pan Hd, #10 - 24 x 3/8"

MACHINE SCREW pan Phillips head, No. 10 - 24 NC x 3/8", plated, base to lens

4шт.

10

R54009

LINING

HEADLINER rear section, complete, includes condensation pan and tubes

1шт.

Ref. 10, P/N R54009 headliner does not include the pan. The pan assy., which included the foam, is P/N 1974613C1 and has since subbed to it's primes, P/N 1971366C1 pan and P/N 1974623C1 foam

1шт.

11

L109555

GUARD

LOUVER recirculation and rear defrost, rear headliner

4шт.

12

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW self-tapping, Phillips head, with washer, No. 10 - 16 x 3/4", headliner to cab frame

17шт.

13

1954737C1

INSULATOR

HEADLINER cab, not shown, special parts used on models without air conditioning

1шт.

14

R54201

GUARD

LOUVER defrost, not shown, special parts used on models without air conditioning

2шт.

15

L109555

GUARD

LOUVER rectangular, not shown, special parts used on models without air conditioning

5шт.

16

1954784C1

BRACKET

headliner support, not shown, special parts used on models without air conditioning

1шт.

17

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex flange head, self-tapping, 1/4" - 20 NC x 3/4", plated, not shown, special parts used on models without air conditioning

4шт.
