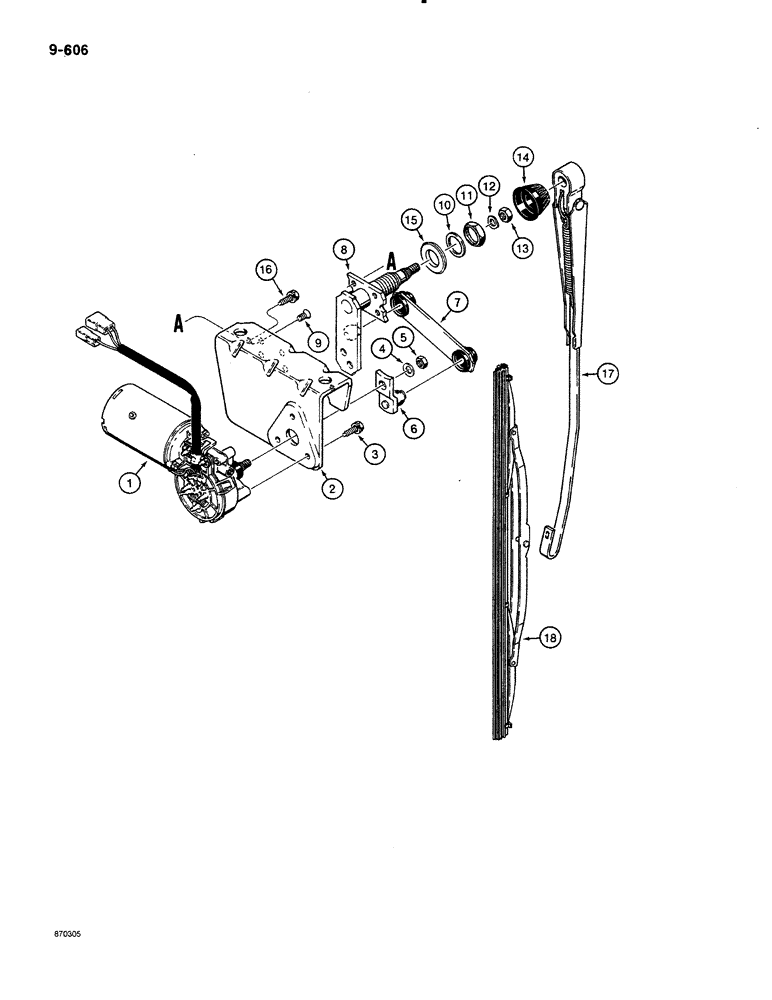

Запчасти Case 580K (09-606) - CAB FRONT WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS

D128744

WIPER MOTOR

MOTOR AND BRACKET ASSEMBLY complete, Includes Ref. 1-14, front windshield wiper, 12 volt, no longer used, order A186171 motor assembly for service

1шт.

A186171

WIPER MOTOR

MOTOR AND BRACKET ASSEMBLY front windshield wiper, 12 volt, Includes: Ref. 1 through 14

1шт.

1

N14110

WIPER MOTOR

MOTOR, 12 volt, windshield wiper, included in D128744 motor assembly

1шт.

1

A186256

WIPER MOTOR,12V

MOTOR, 12 volt, windshield wiper, included in A186171 motor assembly

1шт.

2

N8359

SUPPORT

BRACKET windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER special, motor to bracket

3шт.

4

N14111

WASHER

BELLEVILLE SPRING washer, included in D128744 motor assembly

1шт.

4

N8361

SPRING WASHER

BELLEVILLE SPRING washer, included in A186171 motor assembly

1шт.

5

L112090

NUT

hex, special, 8 mm

1шт.

6

N8360

SUPPORT

ARM drive

1шт.

7

N8358

LINK

LINK wiper

1шт.

8

N14112

SHAFT

pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

special, pivot shaft to bracket

4шт.

10

L112088

WASHER

special, large, shaft

1шт.

11

L112087

NUT

special, large, shaft

1шт.

12

L112089

WASHER

wave, special, shaft end

1шт.

13

L112090

NUT

hex, special, 8 mm, shaft end

1шт.

14

L112081

CAP

pivot shaft end

1шт.

15

R54241

SPACER

pivot shaft

1шт.

16

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER special, bracket to cab frame

2шт.

17

D128745

WIPER ARM

ARM windshield wiper, 22-7/16", 570 mm, long, complete

1шт.

18

D128746

WIPER BLADE

BLADE windshield wiper, 22", 560 mm, long

1шт.
