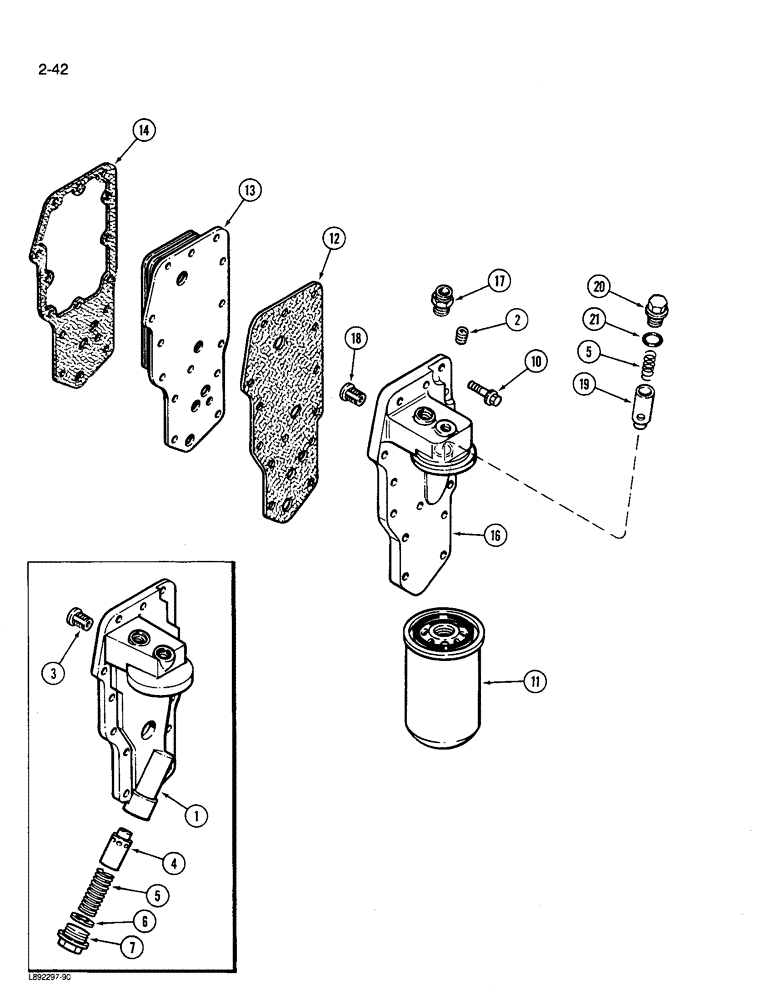

Запчасти Case 580K (02-042) - OIL FILTER AND COOLER, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J902295

HEAD ASSY.

HEAD filter, lube oil

1шт.

Used prior to engine S/N 44257900. For repairs.

1шт.

2

J906619

PLUG,1/8" - 27

hex socket pipe, 1/8"-27 PT

1шт.

3

J902338

VALVE, PRESSURE RELI

VALVE relief, pressure

1шт.

4

J909376

PLUNGER

regulator, pressure

1шт.

5

J903261

SPRING

compression

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug

1шт.

7

J904386

PLUG

pipe

1шт.

10

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

BOLT hex flange head, 8 mm-1.25 x 35 mm

14шт.

11

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER lube oil, cartridge

1шт.

12

J912532

GASKET

filter head, Replaces: P/N J912638

1шт.

13

J904320

COOLER

oil

1шт.

14

J914387

GASKET

cooler core, Replaces: P/N J904427

1шт.

J915766

KIT

oil cover, Includes: Ref. 16 thru 21, Start Serial: 44257900

1шт.

16

J909352

FILTER COVER

HEAD ASSEMBLY filter and cooler, order P/N J915243

1шт.

17

J909355

ADAPTER

filter head

1шт.

18

J902338

VALVE, PRESSURE RELI

VALVE relief, pressure

1шт.

19

J914084

VALVE

PLUNGER regulator, pressure

1шт.

20

J912618

PLUG

pipe

1шт.

21

J912818

O-RING

WASHER seal, plug

1шт.
