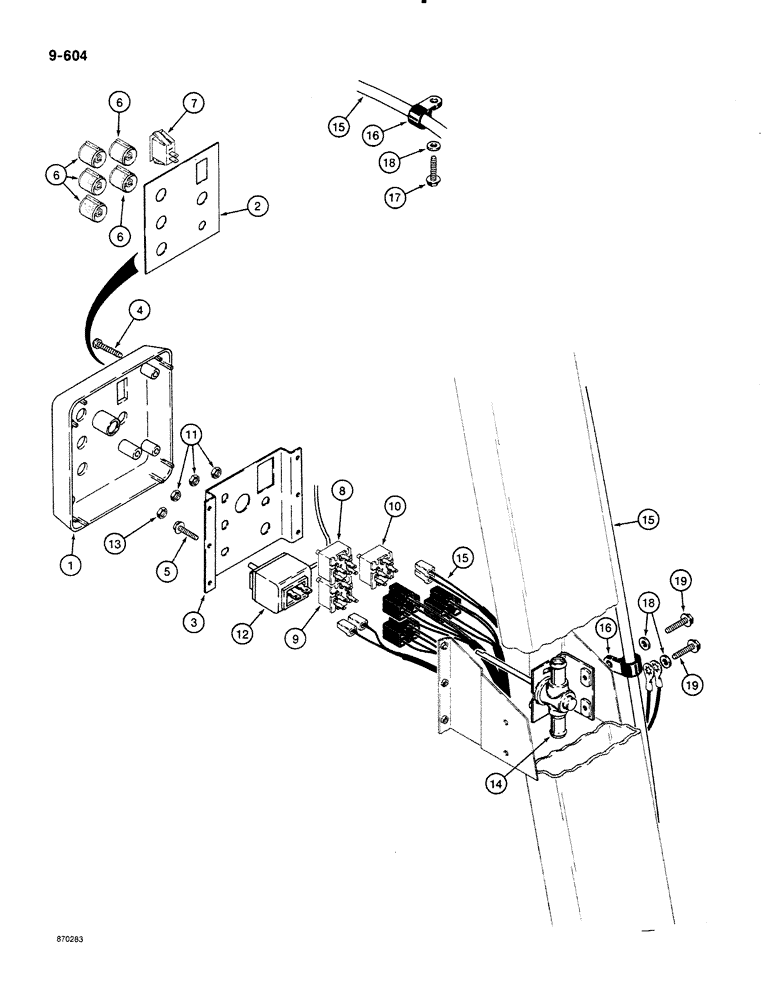

Запчасти Case 580K (09-604) - CAB CONTROL PANEL AND WIRING (09) - CHASSIS/ATTACHMENTS

1

R54202

PANEL

cab control, mounts on right-hand ROPS post

1шт.

2

REF

INSTRUCTION

DECAL instrument panel, cab control, see Figure 09-638 for decal

1шт.

3

R52436

BRACKET

switch support

1шт.

4

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

Fillister head, self-tapping, No. 10 - 24 NC x 1-1/4", black

4шт.

5

187-1309

SELF-TAP SCREW,Hex Flg Hd, #10 x 3/4"

SCREW hex flange head, No. 10 - 24 NC x 3/4", plated

2шт.

6

F66127

BUTTON

KNOB switch, front and rear wiper, heater, blower, and air conditioner

4-5шт.

7

F45393

SWITCH

cab lamp, dome

1шт.

8

A42622

SWITCH

blower

1шт.

9

R52440

SWITCH

rear wiper

1шт.

10

R52415

ROTARY SWITCH

front wiper

1шт.

11

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, switch

3шт.

12

R52618

SWITCH

temperature control, air conditioning

1шт.

13

25-157

JAM NUT,Jam, 7/16"-20, G5

hex, jam, 7/16" - 20 NF

1шт.

14

R52483

VALVE

temperature control, heater

1шт.

15

R54147

HARNESS

cab, main, used on models with two-position lamp switch for single control of front and rear lamps, if used, see Figure 04-126 for connecting harness

1шт.

15a

A187759

HARNESS

cab, main, used on models with four-position lamp switch for separate switching of front and rear lamps, if used, not shown, see Figure 04-126 for connecting harness

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, harness

2шт.

17

28286R1

SELF-TAP SCREW,Hex Washer, 1/4" x 3/4"

SCREW hex flange head, self-tapping, 1/4" - 20 NC x 3/4", plated, lower harness clamp uses existing heater temperature control valve mounting bolt

1шт.

18

195-102

WASHER,1/4"

flat, , plated 1/4"

3шт.

19

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Mounts heater temperature control valve to ROPS post Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

2шт.
