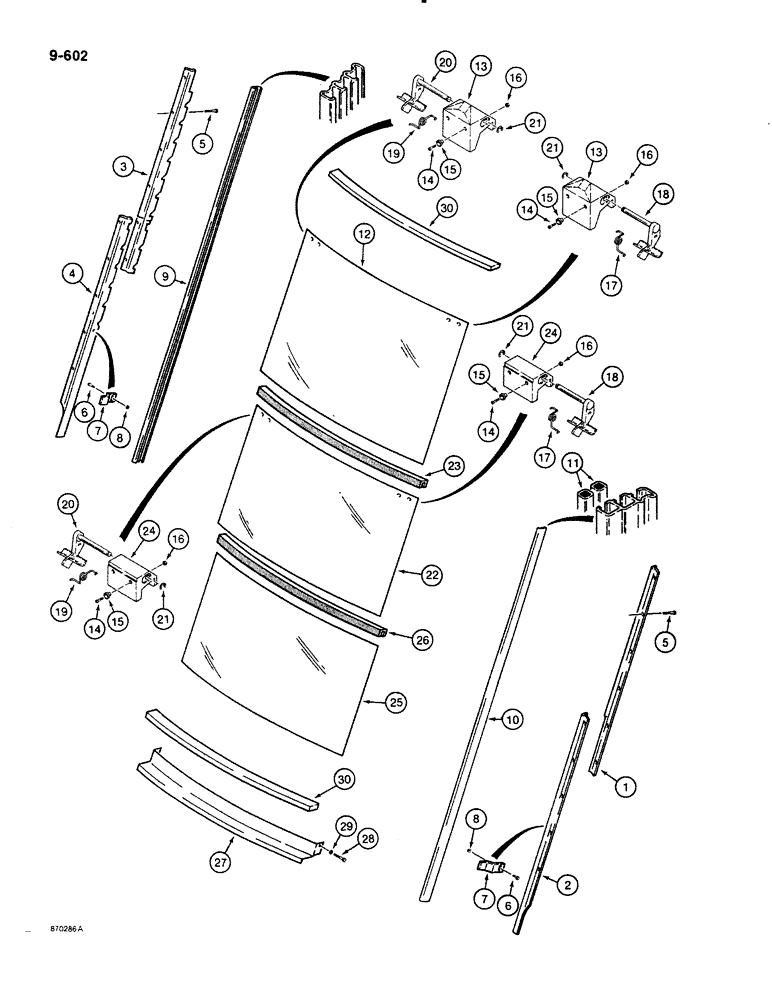

Запчасти Case 580K (09-602) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
97256C1
BRACKET
right-hand, upper
1шт.
2
97257C1
BRACKET
right-hand, lower
1шт.
3
97258C1
BRACKET
left-hand, upper
1шт.
4
97259C1
BRACKET
left-hand, lower
1шт.
5
187-1309
SELF-TAP SCREW,Hex Flg Hd, #10 x 3/4"
SCREW tri-roundular, self-tapping, No. 10 - 24 NC x 3/4", plated
18шт.
6
121-134
FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd
2шт.
7
D129974
BRACKET
lower rear window
2шт.
8
131-1351
FLANGE NUT,Flg, 1/4"-20
NUT, LOCK, Flg, 1/4"-20
2шт.
9
R52939
CHANNEL
track, left-hand side, stationary
1шт.
10
R52940
CHANNEL
track, right-hand side, retractable
1шт.
11
R52942
SEAL
SEAL, 60-15/32", 1536 mm, long, foam, adhesive back, special, right-hand track channel only
2шт.
12
D129967
GLASS
upper rear window only
1шт.
13
97278C1
LATCH
upper rear window only
2шт.
14
179-159
SCREW,Cross Oval Hd, #10 - 24 x 1"
MACHINE SCREW oval Phillips head, No. 10 - 24 NC x 1", plated
8шт.
16
131-1142
LOCK NUT,Hex, #10 - 24, Gr A
NUT, LOCK, #10-24, GA
8шт.
17
F45398
SPRING
right-hand latch
2шт.
18
97254C1
LEVER
latch, right-hand side
2шт.
19
F45399
SPRING
left-hand latch
2шт.
20
97255C1
LEVER
latch, left-hand side
2шт.
21
A27795
RING
RETAINING RING latch lever
4шт.
22
D129968
GLASS
center rear window only
1шт.
23
D126198
SEAL,894mm L
35-29/32", 912 mm, long, center window glass
1шт.
24
97277C1
LATCH
center window only
2шт.
25
D129969
GLASS
lower rear window only
1шт.
26
D126198
SEAL,894mm L
35-29/32", 912 mm, long, lower window glass
1шт.
27
D130002
BRACKET
horizontal, lower, mounts to cab frame
1шт.
28
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
2шт.
29
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
30
D126201
RUBBER SEAL,20mm W x 912mm L x 10mm Thk
SEAL, 25/32", 20 mm, wide x 13/32", 10 mm, thick x 35-29/32", 912 mm, long, adhesive back
2шт.
Выбрано товаров: 30
