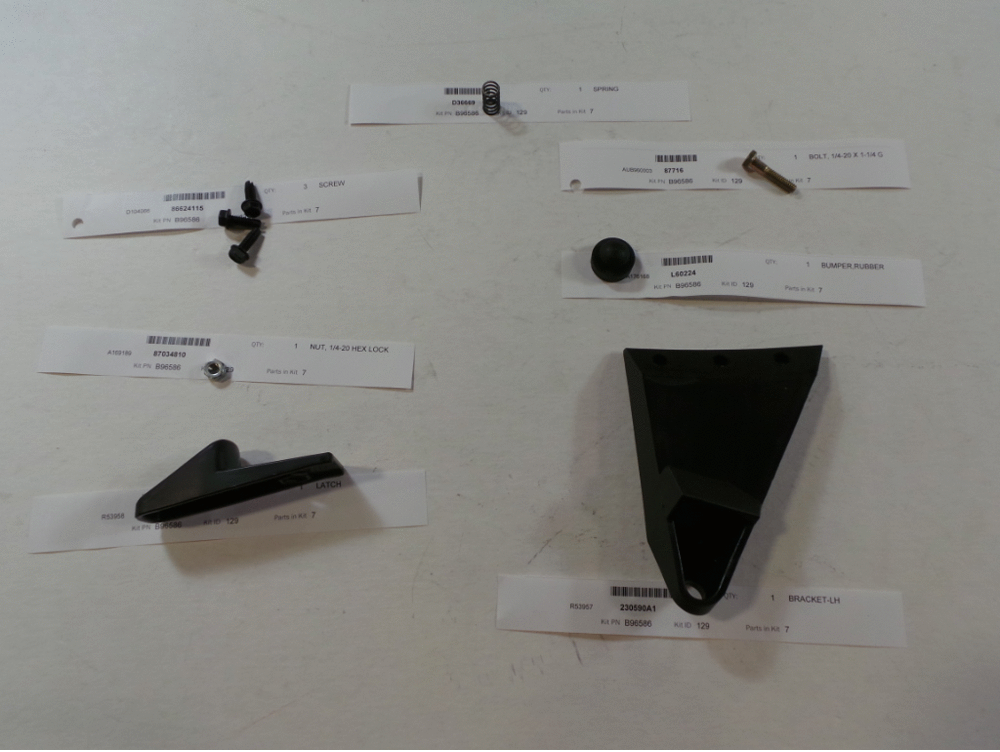

Запчасти Case 580K (09-601) - KIT HINGE WINDOW LH (09) - CHASSIS/ATTACHMENTS

1

B96586

KIT

Includes 2 - 8

1шт.

2

230590A1

SUPPORT

LH Window

1шт.

3

230588A1

LATCH

1шт.

4

87034810

NUT,1/4"-20, GA

1шт.

5

86624115

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

3шт.

6

L60224

BUMPER

1шт.

7

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

8

D36669

SPRING

1шт.
