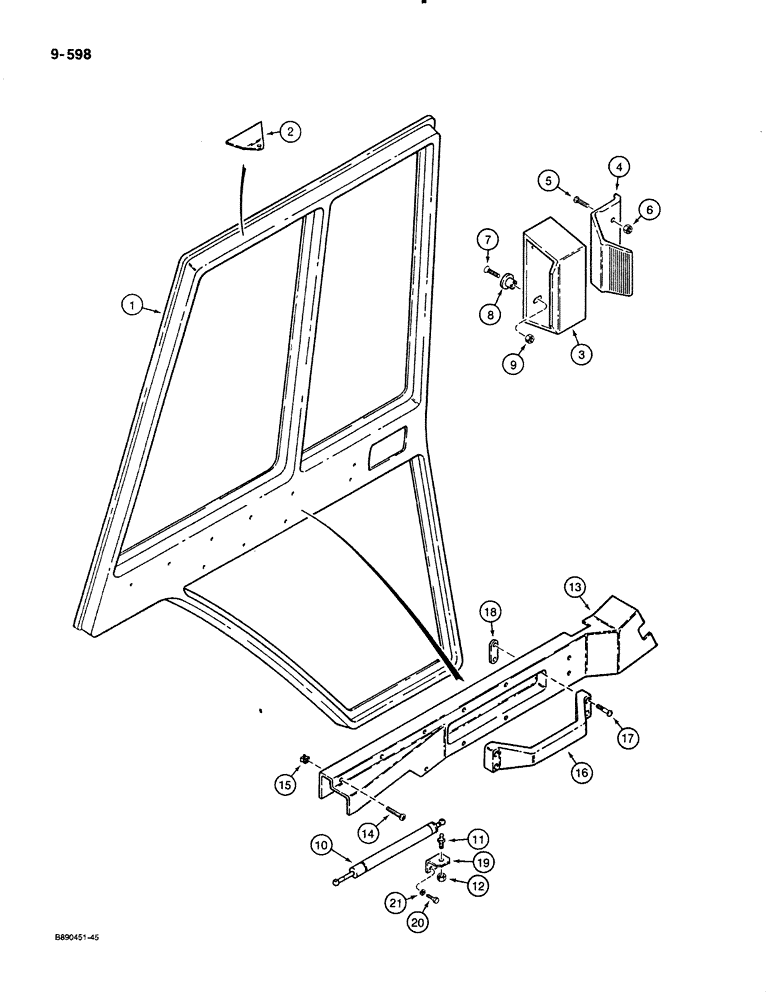

Запчасти Case 580K (09-598) - LEFT-HAND AND RIGHT-HAND CAB DOORS - INTERIOR, WITH PUSH TYPE LATCHES ON DOOR WINDOWS (09) - CHASSIS/ATTACHMENTS

1

97402C1

DOOR

FRAME left-hand door, Includes: Ref. 2

1шт.

1a

97401C1

DOOR ASSY.

FRAME right-hand door, not shown, Includes: Ref. 2

1шт.

2

R53562

BRACKET

cable, welded to left-hand or right-hand door frame

1шт.

3

97399C1

HANDLE

door window

2шт.

4

97398C1

LOCK ASSY

LATCH push type, door window

2шт.

5

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

machine, pan Phillips head, No. 10 - 24 NC x 3/4", black Teflon

4шт.

6

F45165

SPECIAL NUT,#10-24

NUT hex, self-locking, No. 10 - 24 NC, Teflon coated

4шт.

7

179-166

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW oval Phillips head, No. 10 - 24 NC x 3/4"

4шт.

8

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

nylon, black, Serial Range: glass-bracket

4шт.

9

F45165

SPECIAL NUT,#10-24

NUT hex, self-locking, No. 10 - 24 NC, Teflon coated

4шт.

10

F44881

CYLINDER ASSY.

CYLINDER left-hand and right-hand doors, mounting hardware for cylinders to cab frame shown in Figure 09-600

2шт.

11

1304648C1

STUD

ball, cylinder

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self-locking, 5/16" - 18 NC, plated

2шт.

13

R52938

PANEL

left-hand door

1шт.

13a

R52937

PANEL

right-hand door, not shown

1шт.

14

187-371

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

SCREW pan Phillips head, self-tapping, No. 10 - 16 x 1-1/2", black, left-hand and right-hand door panels

20шт.

15

R53000

GROMMET

RETAINER screw, left-hand and right-hand door panels

20шт.

16

1958970C1

HANDLE

left-hand and right-hand inner door

2шт.

17

165-129

HEX SOC SCREW,Self-Lkg, 1/4" - 20 x 3/4"

MACHINE SCREW pan head slotted, self-locking, 1/4" - 20 NC x 3/4", black, left-hand and right-hand inner door handles

8шт.

18

1971368C1

PLATE ASSY.

PLATE retainer, left-hand and right-hand inner door handles

4шт.

19

1977399C1

SUPPORT ASSY.

BRACKET cylinder

2шт.

20

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

hex head, 1/4" - 20 NC x 1/2", zinc plated

4шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
