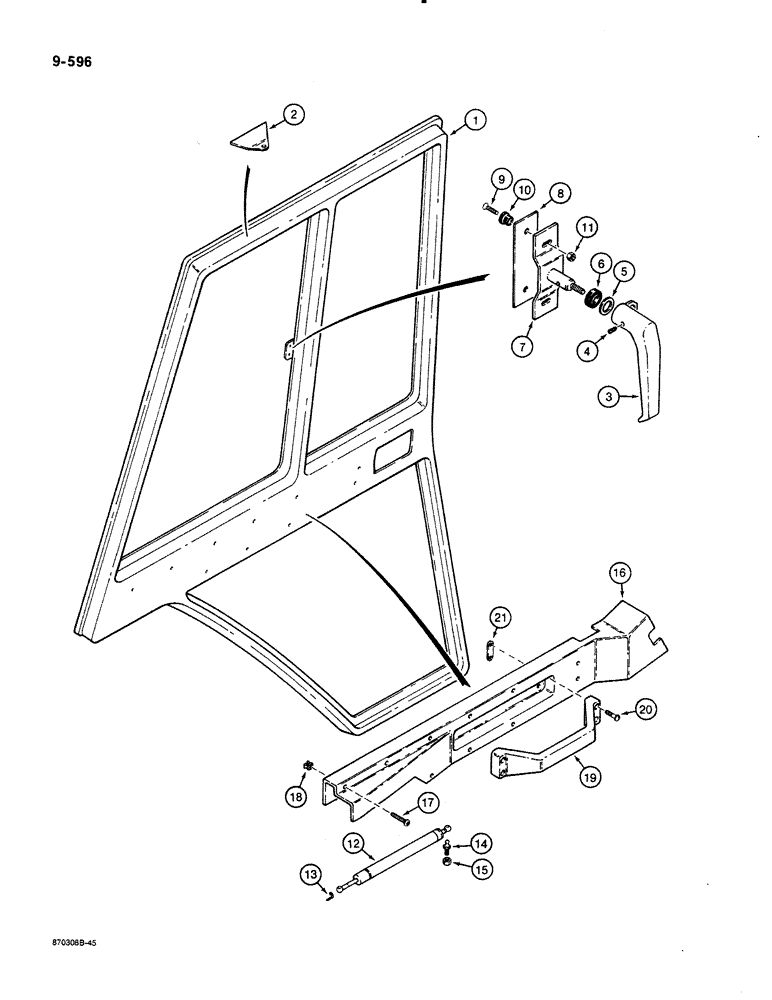

Запчасти Case 580K (09-596) - LEFT-HAND AND RIGHT-HAND CAB DOORS - INTERIOR, WITH LEVER TYPE LATCHES ON DOOR WINDOWS (09) - CHASSIS/ATTACHMENTS

1

R52553

FRAME

left-hand door, Includes: Ref. 2

1шт.

1a

R52554

FRAME

right-hand door, not shown, Includes: Ref. 2

1шт.

2

R53562

BRACKET

cable, welded to left-hand or right-hand door frame

1шт.

3

R52922

HANDLE

left-hand door window

1шт.

3a

R52921

HANDLE

right-hand door window, not shown

1шт.

4

178-7

SET SCREW,Hex Soc, #8-32 x 1/2"

hex socket headless, No. 8 - 32 NC x 1/2", cone point

2шт.

5

R53014

WASHER,12.7mm ID x 20mm OD x 2.06mm Thk

flat, special, left-hand and right-hand door window latches

2шт.

6

R54648

WASHER,12.7mm ID x 20mm OD x 5mm Thk

flat, rubber, left-hand and right-hand door windows

2шт.

7

R53010

BRACKET

left-hand and right-hand door window, Serial Range: window-glass

2шт.

8

R54047

PAD,30mm OD x 0.76mm Thk

SHIM latch bracket, left-hand and right-hand door window

2шт.

9

179-166

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW oval Phillips head, No. 10 - 24 NC x 3/4"

4шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

nylon, black, Serial Range: glass-bracket

4шт.

11

F45165

SPECIAL NUT,#10-24

NUT hex, self-locking, No. 10 - 24 NC, Teflon coated

4шт.

12

F44881

CYLINDER ASSY.

CYLINDER left-hand and right-hand doors

2шт.

Ref. 12, P/N F44881 cylinder - Optional cylinder P/N 1343883C1 may be ordered if desired

1шт.

13

F44883

CLIP,DIN 71805 - S10

lock, cylinder

2шт.

14

1304648C1

STUD

ball, cylinder

2шт.

Ref. 14 P/N 1304648C1 stud - Optional stud P/N 1340345C1 may be ordered if desired.

1шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self-locking, 5/16" - 18 NC, plated

2шт.

16

R52938

PANEL

left-hand door

1шт.

16a

R52937

PANEL

right-hand door, not shown

1шт.

17

187-461

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

SCREW pan Phillips head, self-tapping, No. 10 - 16 x 1-1/2", left-hand and right-hand door panels

20шт.

18

R53000

GROMMET

RETAINER screw, left-hand and right-hand door panels

20шт.

19

1958970C1

HANDLE

left-hand and right-hand inner door

2шт.

20

165-143

HEX SOC SCREW,1/4" - 20 x 3/4"

MACHINE SCREW pan head slotted, 1/4" - 20 NC x 3/4", left-hand and right-hand inner door handles

8шт.

21

1971368C1

PLATE ASSY.

PLATE retainer, left-hand and right-hand inner door handles

4шт.
