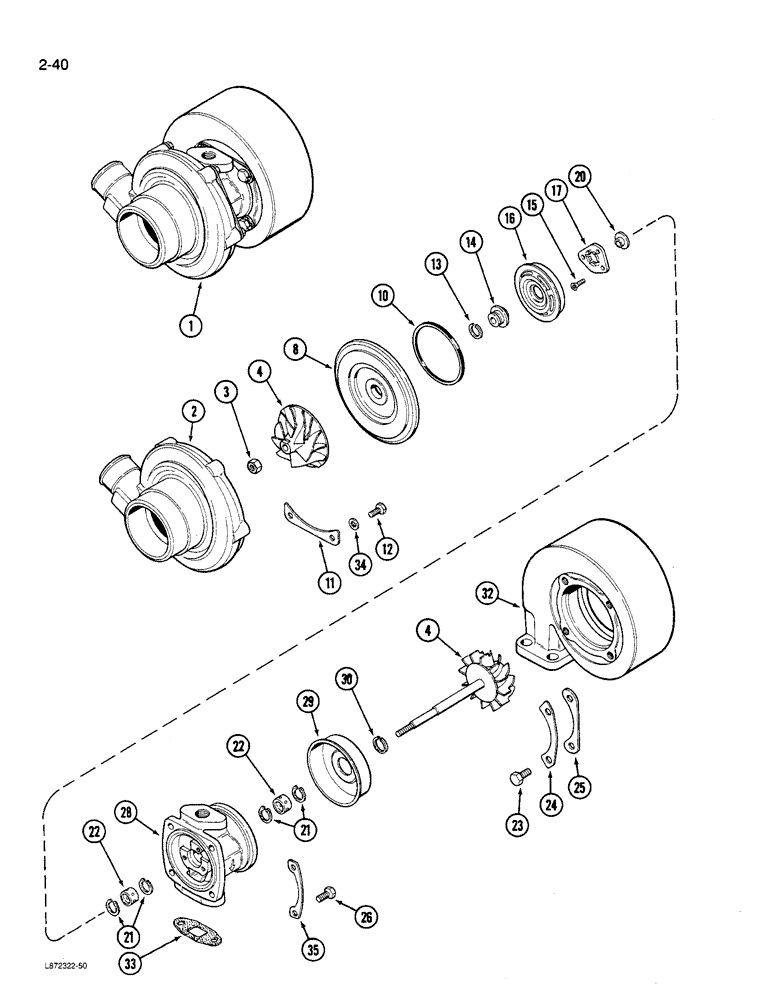

Запчасти Case 580K (02-040) - TURBOCHARGER ASSEMBLY, 4T-390 ENGINE (02) - ENGINE

1

J908293

TURBOCHARGER

TURBOCHARGER ASSEMBLY new, Includes: Ref. 2 thru 35

1шт.

1

JR908293

REMAN-TURBOCHARGER

Turbocharger Assembly\r\n Remanufactured

1шт.

1

JC908293

CORE

Return Part Number\r\n Use this part number to return turbocharger core for credit

1шт.

1

JR802290

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex lock

1шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY turbocharger

1шт.

8

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE diffuser

3шт.

12

NSS

NOT SOLD SEPARAT

BOLT AND WASHER ASSEMBLY hex lock

6шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL split ring, compressor

1шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

14

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW flat head torx

3шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

16

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

20

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

21

NSS

NOT SOLD SEPARAT

RING snap

4шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING impeller shaft

2шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT cap

4шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

2шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

26

NSS

NOT SOLD SEPARAT

BOLT AND WASHER ASSEMLBY hex lock

4шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING bearing, turbine

1шт.

29

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL piston, turbine

1шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET oil drain

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER lock

6шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

35

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

2шт.

Part of Turbocharger Overhaul Kit P/N J904772

1шт.

J904772

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes: Ref. 3, 10, 12, 13, 15, 17, 21, 22, 23, 24, 26, 30, 34 and 35

1шт.
