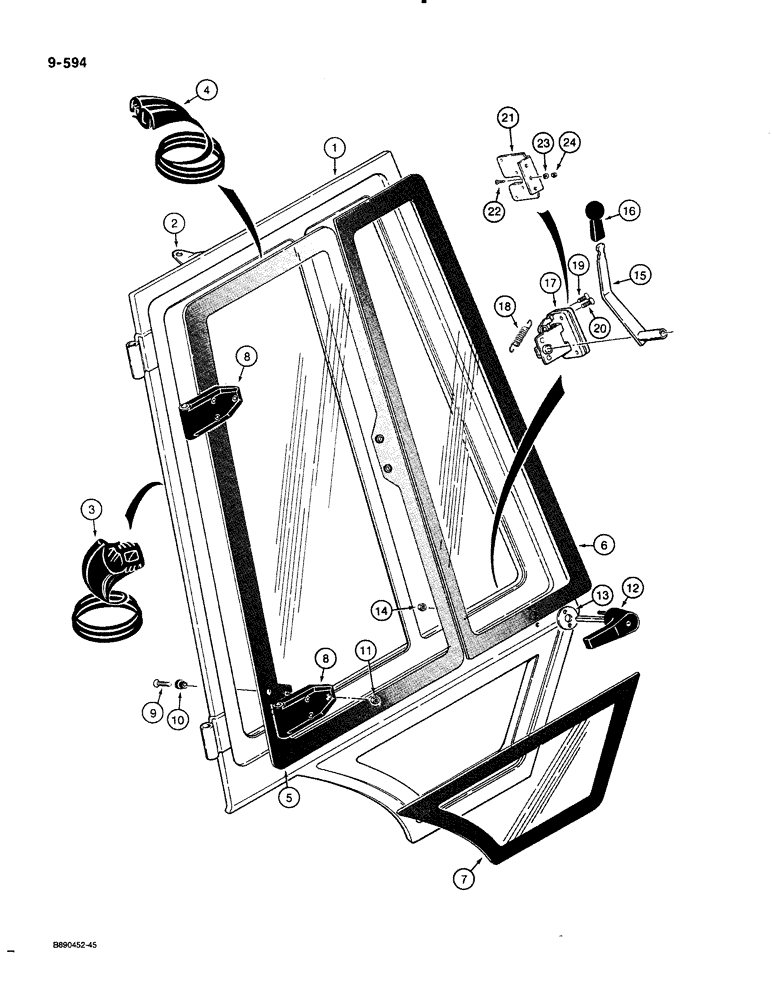

Запчасти Case 580K (09-594) - LEFT-HAND AND RIGHT-HAND CAB DOORS - EXTERIOR, WITH PUSH TYPE LATCHES ON DOOR WINDOWS (09) - CHASSIS/ATTACHMENTS

1

97401C1

DOOR ASSY.

FRAME right-hand door, Includes: Ref. 2

1шт.

1a

97402C1

DOOR

FRAME left-hand door, not shown, Includes: Ref. 2

1шт.

2

R53562

BRACKET

cable, welded to left-hand or right-hand door frame

1шт.

3

R52936

SEAL

181-1/2", 4610 mm, long, bulb type, left-hand and right-hand door frames

2шт.

Sealant used to retain Ref. 3 into the channel of door is P/N 345-157 Loctite adhesive. Make sure the surfaces are free of all dust and oil.

1шт.

4

R53444

SEAL,2688mm L

105-7/8", 2688 mm, long, bulb type, left-hand and right-hand window frames

2шт.

5

R54106

GLASS

right-hand door, rear, window, tinted

1шт.

5a

R54107

GLASS

left-hand door, rear, window, tinted, not shown

1шт.

6

R52880

GLASS

right-hand door, front, tinted

1шт.

6a

R52879

GLASS

left-hand door, front, tinted, not shown

1шт.

7

R52884

GLASS

right-hand door, lower, tinted

1шт.

7a

R52883

GLASS

left-hand door, lower, tinted, not shown

1шт.

8

R52917

HINGE

glass, left-hand and right-hand door window

4шт.

9

179-166

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW oval Phillips head, No. 10 - 24 NC x 3/4", black, left-hand and right-hand door window hinge

12шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

nylon, black, glass to hinge, left-hand and right-hand door window hinge

12шт.

11

F45165

SPECIAL NUT,#10-24

NUT hex, self-locking, No. 10 - 24 NC, Teflon coated, left-hand and right-hand door window hinge

12шт.

12

R53001

HANDLE

right-hand door, outer

1шт.

12a

R53002

HANDLE

left-hand door, outer, not shown

1шт.

13

F64342

GASKET,1.6mm Thk

door handle, left-hand and right-hand

2шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, , LH and RH door handles #10-24, GB

4шт.

15

R54625

LEVER

inner left-hand and right-hand door latch handle

2шт.

16

D135387

GRIP

KNOB inner door latch levers

2шт.

17

R55000

LATCH ASSY.

LATCH ASSEMBLY door, right-hand, rotary, Includes: Ref. 18

1шт.

17a

R55001

LATCH ASSY.

LATCH ASSEMBLY door, left-hand, rotary, not shown, Includes: Ref. 18

1шт.

18

A180163

SPRING

extension, left-hand or right-hand door latch

1шт.

19

187-1921

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW Phillips, No. 10 - 16 NC x 3/4", left-hand and right-hand door latch

4шт.

20

171-240

SCREW,Cross Flat Hd, 1/4" - 20 x 1", W/ Nylon Insert

MACHINE SCREW Phillips flat head, self-locking, 1/4" - 20 NC x 1", left-hand and right-hand door latch

8шт.

21

1977402C1

SUPPORT

BRACKET latch, right-hand rotary

1шт.

21a

1977401C1

SUPPORT

BRACKET latch, left-hand rotary, not shown

1шт.

22

171-221

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

machine, flat head slotted, 5/16" - 18 NC x 3/4", zinc plated

6шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

24

425-105

NUT,5/16"-18, G5

hex, 5/16" - 18 NC, zinc plated

6шт.
