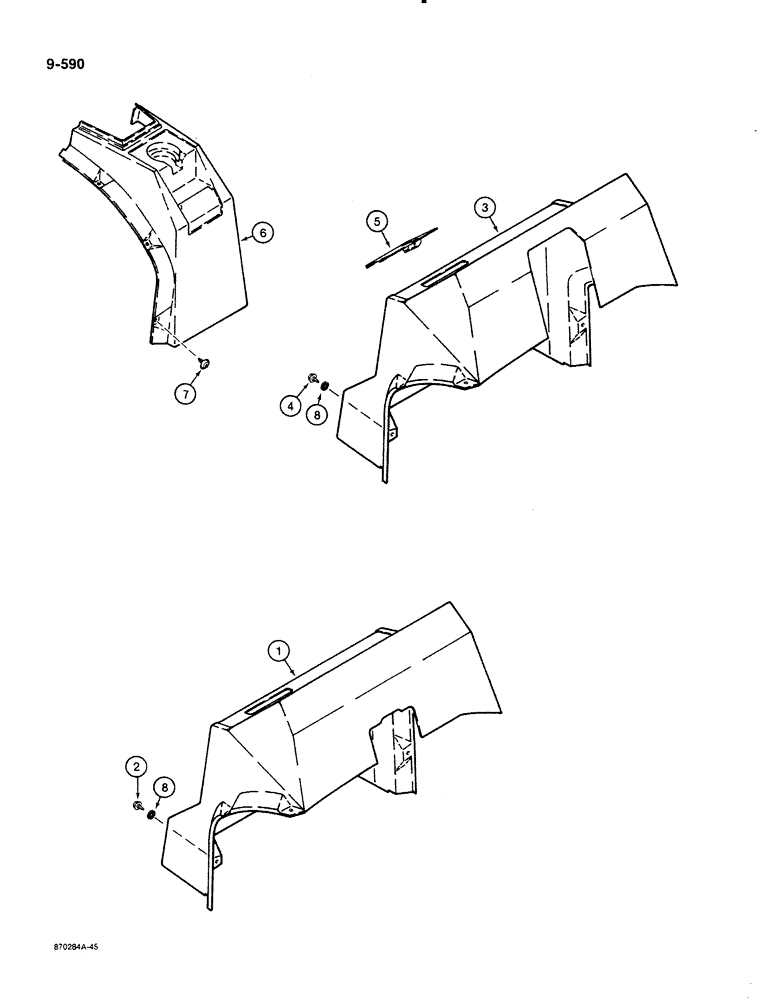

Запчасти Case 580K (09-590) - LEFT-HAND AND RIGHT-HAND CONSOLES, FOR ROPS CAB OR CANOPY MODELS (09) - CHASSIS/ATTACHMENTS

1

D136319

BRACKET

CONSOLE side instrument, right-hand, ROPS canopy models only

1шт.

When replacing side instrument console, also order, 6, P/N 195-81004 washers, Ref. 8.

1шт.

2

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex washer head, self-tapping, 1/4" - 20 NC x 3/4", black

6шт.

3

D136043

PANEL ASSY.

CONSOLE side instrument, right-hand, ROPS cab models only

1шт.

When replacing side instrument console, also order, 6, P/N 195-81004 washers, Ref. 8.

1шт.

4

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex washer head, self-tapping, 1/4" - 20 NC x 3/4", black

6шт.

5

D135678

COVER

fuse box, mounts in right-hand side instrument console, cab or canopy models, see Figure 09-638 for fuse location decal

1шт.

6

D143491

SUPPORT

CONSOLE left-hand side, with cup holder, cab models only, includes 321-6958 decal, see Figure 09-638 for decals

1шт.

7

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW self-tapping, Phillips head, with washer, No. 10 - 16 x 3/4"

6шт.

8

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

flat, 5/16 inch

6шт.
