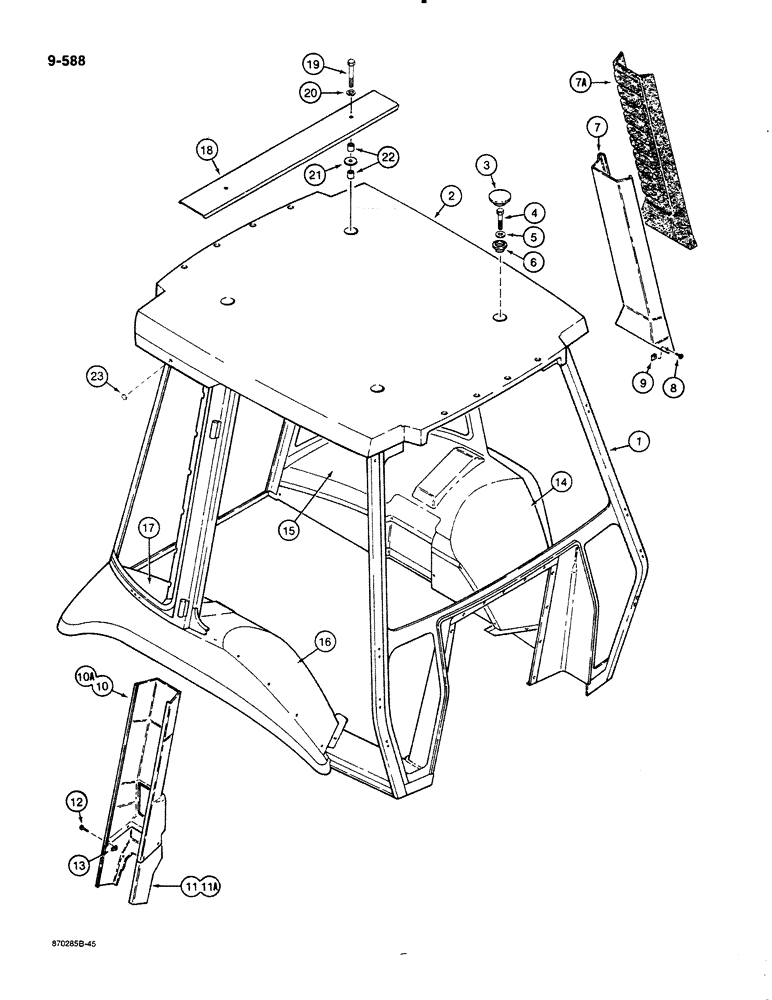

Запчасти Case 580K (09-588) - CAB FRAME, ROOF CAP, AND COVERS (09) - CHASSIS/ATTACHMENTS

1

108762A1

FRAME ASSY

FRAME cab

1шт.

2

R52559

COVER

CAP roof, plastic

1шт.

Ref. 2, THE PLASTIC ROOF CAP, P/N R52559 WAS ELIMINATED PER NLB SB 001 93. TYPICAL ROOF MOUNTED ITEMS CAN BE MOUNTED DIRECT TO METAL FRAME.

1шт.

3

R54262

PLUG

2-5/64", 53 mm, diameter, cap mounting holes

4шт.

4

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, 1/2" - 13 NC x 2-1/4", use with Loctite 242, blue, do not use plated bolt with Loctite

4шт.

5

195-106

WASHER,1/2"

flat, , plated 1/2"

4шт.

6

R54261

SPACER

special

4шт.

7

97293C1

COVER

plastic, left-hand post

1шт.

7a

D138178

PANEL

COVER padded, left-hand post, optional deluxe interior

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW self-tapping, Phillips head, with washer, No. 10 - 16 x 3/4", black, replaces 1/2" screws

2шт.

9

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

10

R53851

COVER

plastic, right-hand post, upper

1шт.

10a

D138179

PANEL

COVER padded, right-hand post, upper, optional deluxe interior

1шт.

11

97292C1

COVER

plastic, right-hand post, lower

1шт.

11a

D138180

PANEL

COVER padded, right-hand post, lower, optional deluxe interior

1шт.

12

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW self-tapping, Phillips head, with washer, No. 10 - 16 x 3/4", black, replaces 1/2" screws

4шт.

13

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

14

D138181

LINING

COVER padded, left-hand front fender, optional deluxe interior

1шт.

15

D138182

LINING

COVER padded, left-hand rear fender, optional deluxe interior

1шт.

16

D138183

LINING

COVER padded, right-hand front fender, optional deluxe interior

1шт.

17

D138184

LINING

COVER padded, right-hand rear fender, optional deluxe interior

1шт.

18

97377C1

CHANNEL

PLATE mounting, used with Ref. 19-22, used on cab models with rotating beacon

1шт.

19

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

195-2205

WASHER,17/32" x 2" x .238"

flat, 1/2" ID x 2" OD x 1/4" thick, plated

2шт.

22

D48528

SPACER

mounting plate

4шт.

23

L60224

BUMPER

rubber, cab roof

2шт.
