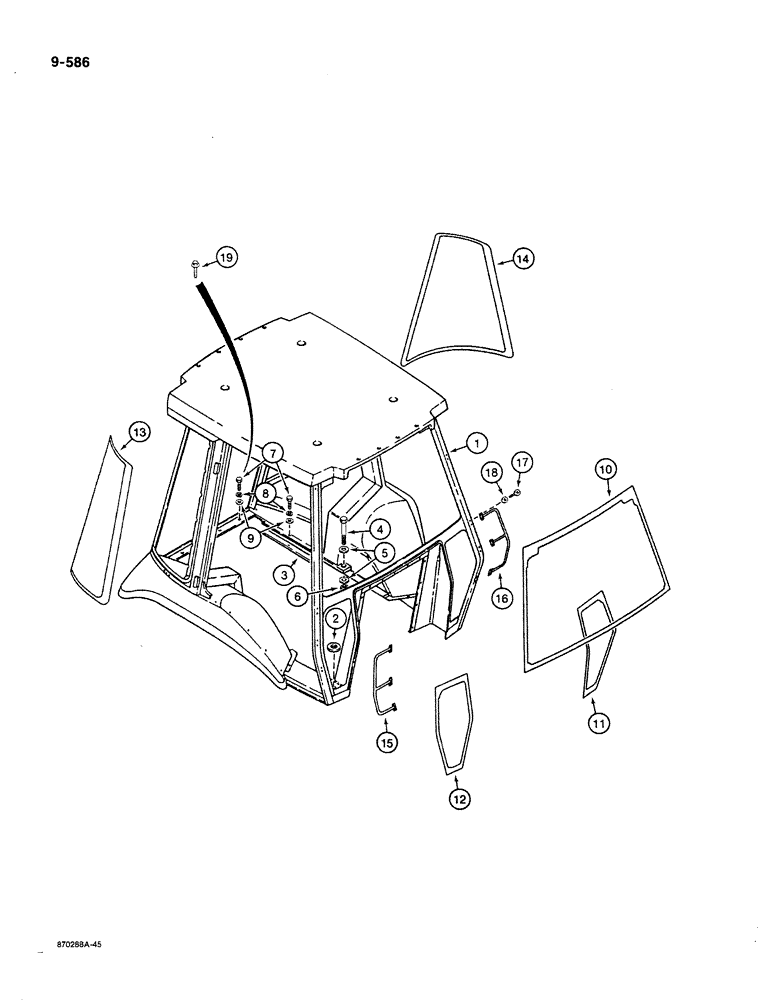

Запчасти Case 580K (09-586) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

ROPS CAB operators, machinery item, order from Machinery Price List, for parts list see Figures 09-586 through 09-622

1шт.

ROPS cab is no longer available as complete assy. thru parts or wholegoods. Must order P/N 108762A1 cab frame, made up of P/N 108532A1 frame, P/N 151-525 rivet, 1990696C2 s/n and model plate, and all other primes separately. This frame will fit 580K-I, 580K-III, 580SK.

1шт.

2

195-2203

WASHER,21/32" x 2" x .238"

flat, 5/8" bolt size, 21/32" ID x 2" OD x 1/4" thick, plated, see page 9-507 for bolt and insulator

2шт.

3

REF

INSTRUCTION

SEAL, 112", 2845 mm, long, adhesive one side, cut from L35819 bulk, rear fender to operator compartment frame

2шт.

4

26-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

hex head, 7/8" - 9 NC x 3-1/4", grade 8

4шт.

5

196-35

WASHER,15/16" x 1 3/4" x .134", HDN

flat, 7/8", hardened

4-8шт.

6

S104373

NUT

hex, 7/8" - 9 NC, if used

4шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

11шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

11шт.

9

195-521

WASHER,5/16", SAE

flat, 5/16", plated, if used

11шт.

10

97290C1

GLASS

front windshield

1шт.

11

D131289

GLASS

lower left-hand front window

1шт.

12

D131288

GLASS

lower right-hand front window

1шт.

13

D126204

GLASS

right-hand rear quarter panel window

1шт.

14

D126205

GLASS

left-hand rear quarter panel window

1шт.

15

R53960

HANDLE

grab, right-hand

1шт.

16

R53961

HANDLE

grab, left-hand

1шт.

17

165-180

HEX SOC SCREW,1/4" - 20 x 7/8"

BOLT hex socket head, 1/4" - 20 NC x 7/8", plated, grade 8

12шт.

18

195-516

WASHER,#12

flat, No. 12, plated

12шт.

19

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self-locking , 5/16" - 18 NC x 3/4", plated, replaces bolt and washers on some models

11шт.

L35819

RUBBER SEAL

SEAL foam rubber, bulk roll, adhesive-back, 1", 25 mm, wide x 1/8", 3 mm, thick x 50 ft, 15.2 m, long

1шт.
