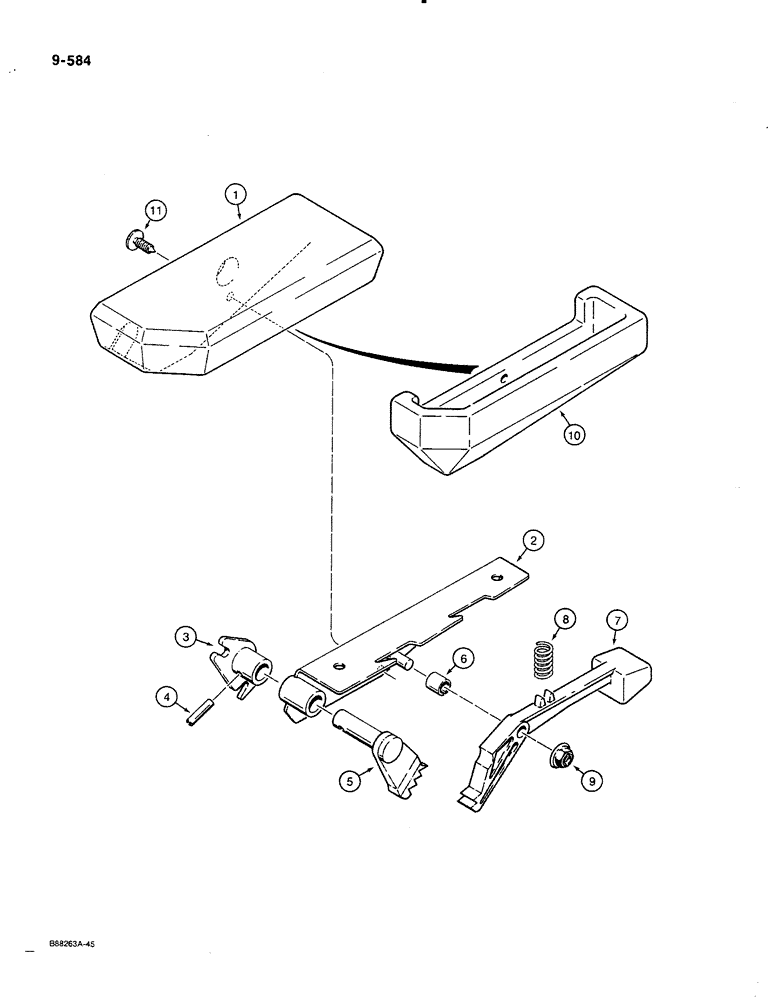

Запчасти Case 580K (09-584) - ARMRESTS (09) - CHASSIS/ATTACHMENTS

N14853

ARMREST

ASSEMBLY left-hand, not shown, Includes: Ref. 1 through 11

1шт.

N14854

ARMREST

ASSEMBLY right-hand, Includes: Ref. 1 thru 11

1шт.

1

N14863

SHROUD

COVER armrest, upper, right-hand

1шт.

1a

N14860

SHROUD

COVER armrest, upper, left hand, not shown

1шт.

N14856

RETAINER

ASSEMBLY armrest, left-hand, not shown, Includes: Ref. 2 thru 5

1шт.

N14862

PAN

RETAINER ASSEMBLY armrest, right-hand, Includes: Ref. 2 through 5

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER armrest

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET retainer mounting

1шт.

Ref. 3 and 5 - NSS retainer mounting brackets, LH - P/N D149163 and RH - P/N D149164, and levers, LH - P/N D149161 and RH - P/N D149162, available only as part of improved assemblies, P/N 101575A1 LH and P/N 101576A1 RH, Refer to Service Bulletin NLB SB 017 92

1шт.

4

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

5

NSS

NOT SOLD SEPARAT

LEVER stop

1шт.

Ref. 3 and 5 - NSS retainer mounting brackets, LH - P/N D149163 and RH - P/N D149164, and levers, LH - P/N D149161 and RH - P/N D149162, available only as part of improved assemblies, P/N 101575A1 LH and P/N 101576A1 RH, Refer to Service Bulletin NLB SB 017 92

1шт.

6

N14857

SPACER

split

1шт.

7

N14858

LATCH

lever, armrest

1шт.

8

N14859

SPRING

compression

1шт.

9

131-435

PUSH-ON NUT,Push, 3/8"

NUT push-on, 3/8"

1шт.

10

N14861

PAD

ARMREST lower, retainer, right-hand

1шт.

10a

N14855

PAD

ARMREST lower, retainer, left-hand, not shown

1шт.

11

N14323

CLIP

RETAINER brown, plastic

1шт.
