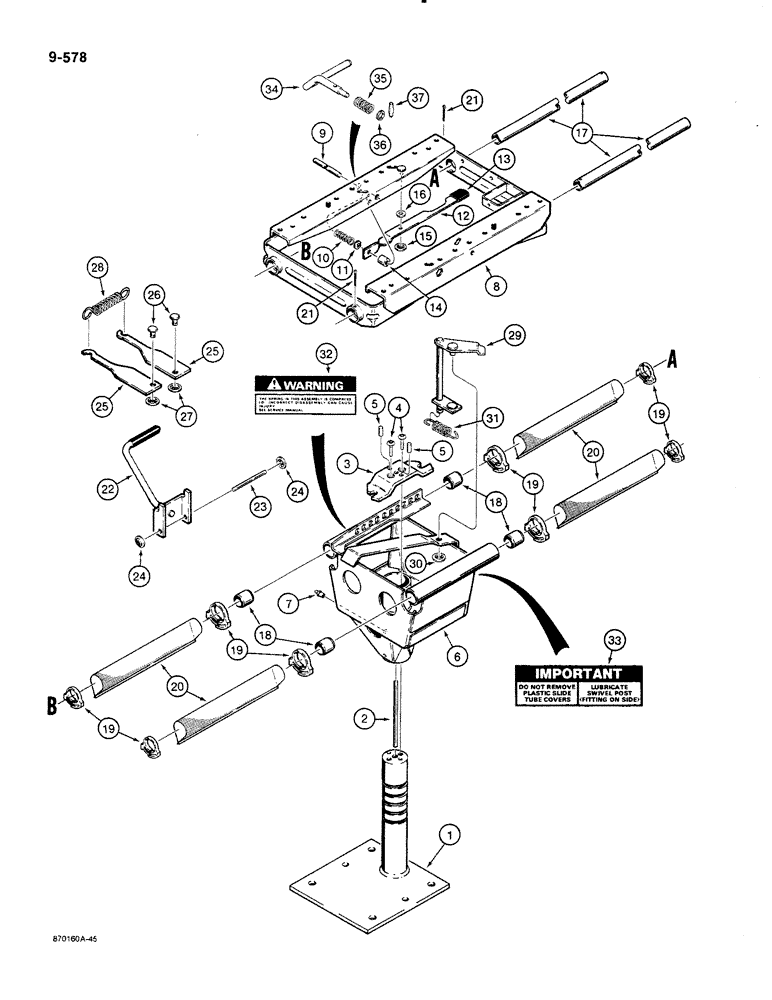

Запчасти Case 580K (09-578) - STANDARD SEAT SUPPORT (09) - CHASSIS/ATTACHMENTS

D135248

PEDESTAL

SUPPORT ASSEMBLY standard seat, Includes: Ref. 1 through 37

1шт.

1

N14289

BASE

seat support

1шт.

2

N8340

SHAFT

seat support

1шт.

3

N8339

LATCH

seat swivel

1шт.

4

164-407

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

BOLT hex socket button head, 5/16" - 18 NC x 1/2", plated, .text1, grade 8

2шт.

5

135-84

GROOVED PIN,5/16" x 3/4", Type A

PIN, GROOVED, 5/16" x 3/4", Type A

2шт.

6

N14290

SUPPORT

RISER seat support

1шт.

7

219-16

LUBE NIPPLE,5/16" NPTF

GREASE FITTING straight, 5/16" drive

1шт.

8

N14291

SLIDE

seat

1шт.

9

N6958

PIN

slide release, if used

1шт.

10

N8342

SPRING

slide release, if used

1шт.

11

A27795

RING

RETAINING RING spring, if used

1шт.

12

N6956

LEVER

HANDLE slide release, front mounted, if used, Includes: Ref. 13

1шт.

13

N13687

GRIP

vinyl, if used

1шт.

14

N6957

SPACER

handle, if used

1шт.

15

131-433

PUSH-ON NUT,Push, 1/4"

NUT push on type, 1/4", if used

1шт.

16

195-102

WASHER,1/4"

flat, , plated, if used 1/4"

1шт.

17

N14292

TUBE

slide

2шт.

18

N6950

TUBE,1.015" ID x 1.1905" OD x 1"

BEARING slide tube

4шт.

19

N14105

CLAMP

bellows

8шт.

20

N6967

BELLOWS

slide tube

4шт.

21

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

22

N14294

HANDLE

seat height adjustment

1шт.

23

N6962

SHAFT

pivot

1шт.

24

131-434

LOCK NUT,Push, 5/16"

NUT push on type, 5/16"

2шт.

25

N6963

LATCH

seat height adjustment

2шт.

26

N6964

PIN,9.53mm OD x 19.05mm L

latch

2шт.

27

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8"

2шт.

28

N6970

CATCH

SPRING latch, seat height adjustment

1шт.

29

N14293

KIT

LEVER seat swivel

1шт.

30

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8"

1шт.

31

N8341

SPRING

seat swivel, 2-3/8", 60 mm, long

1шт.

32

321-6774

WARNING DECAL

DECAL, WARNING, The spring in this assembly is compressed, See Figure 09-636 for decal

1шт.

33

N14295

DECAL

Important, do not remove plastic slide tube covers, lubricate swivel post, see Figure 09-636 for decal

1шт.

34

D144387

HANDLE

slide release, side mounted

1шт.

35

D144430

SPRING

compression

1шт.

36

D144431

WASHER

flat, special

1шт.

37

D144432

PIN

slide lock

1шт.
