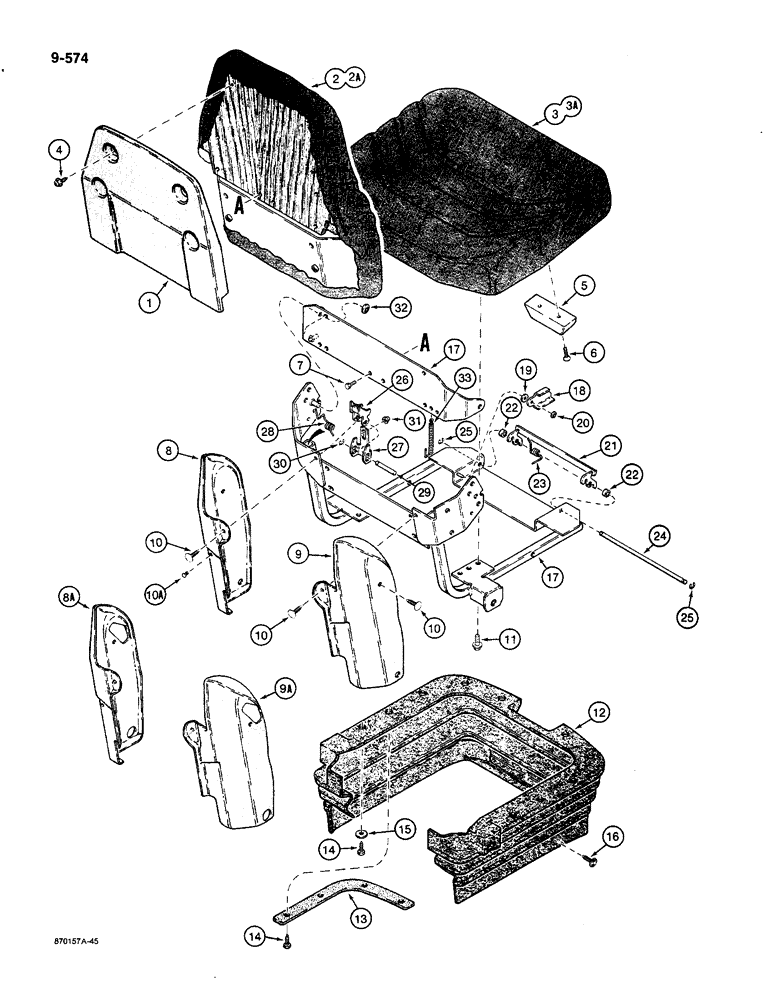

Запчасти Case 580K (09-574) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

D135232

SEAT

ASSEMBLY suspension, cloth, with armrests, cab models only, for seat support and adjuster, see Figures 09-580 and 09-582, Includes: Ref. 1 thru 33

1шт.

D140825

SEAT

ASSEMBLY suspension, vinyl, with armrests, cab or canopy models, replaced by D147690 which subs to 108114A3, for seat support and adjuster, see Figures 09-580 and 09-582, Includes: Ref. 1 thru 33

1шт.

N14339

SEAT

ASSEMBLY, D136384 suspension seat, vinyl, without armrests, cab or canopy models, for seat support and adjuster, see Figures 9-580 and 9-582, Includes: Ref. 1 through 33

1шт.

1

D144559

SHROUD

COVER backrest, upper, shield

1шт.

2

N14321

CUSHION

BACKREST seat, cloth

1шт.

2a

N14341

CUSHION

BACKREST seat, vinyl

1шт.

3

N14318

CUSHION

seat, cloth

1шт.

3a

N14340

CUSHION

seat, vinyl

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW Phillips, hex washer head, special

4шт.

Ref. 4 - NSS screw - This is a #10 x 3/4"

1шт.

5

N14322

HANDLE

seat cushion adjustment

1шт.

6

156466

SCREW,Cross Flat Hd, 5/16" - 18 x 1"

2шт.

7

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

5шт.

8

D144721

SHROUD

COVER frame, left-hand shroud, used on seats without armrests

1шт.

8a

D144920

SHROUD

COVER frame, left-hand shroud, used on seats with armrests

1шт.

9

D144720

SHROUD

COVER frame, right-hand shroud, used on seats without armrests

1шт.

9a

D144919

SHROUD

COVER frame, right-hand shroud, used on seats with armrests

1шт.

10

N14323

CLIP

RETAINER plastic, brown

4шт.

10a

N8487

RIVET

plastic, yellow, weight indicator

1шт.

11

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

N14339 seat Hex Flg, 5/16"-18 x 5/8", Serr

2шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

D135232 or D140825 seat Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

12

N14320

BOOT

seat, protective covering

1шт.

13

N14319

SUPPORT

BRACKET boot support

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW hex head, special

10шт.

15

195-103

WASHER,5/16"

flat, , plated 5/16"

2шт.

16

D144429

CLIP

RETAINER plastic, black

9шт.

N14317

FUNNEL

FRAME ASSEMBLY, N14339 seat, for service order N14852 frame

1шт.

N14852

FUNNEL

FRAME ASSEMBLY seat, not shown, Includes: Ref. 17 through 33

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME seat

1шт.

18

N14325

TOGGLE

BRACKET toggle

1шт.

19

195-102

WASHER,1/4"

flat, , plated 1/4"

1шт.

20

131-433

PUSH-ON NUT,Push, 1/4"

NUT push on type, 1/4"

1шт.

21

N14324

LATCH

BRACKET latch, cushion adjustment

1шт.

22

N14334

SPACER

nylon

2шт.

23

N14335

SPRING

torsion

1шт.

24

N14332

SHAFT

front seat bracket latch

1шт.

25

N14331

OIL SEAL

RING C-type, retaining

2шт.

26

N14326

LATCH

BRACKET latch, upper, backrest adjustment

1шт.

27

N14327

BACK

BRACKET latch, lower, backrest adjustment

1шт.

28

N14335

SPRING

torsion, backrest

1шт.

29

N14333

SHAFT

PIN backrest latch

1шт.

30

N14331

OIL SEAL

RING C-type, retaining

1шт.

31

N14336

NUT

push-on type, special

1шт.

32

131-435

PUSH-ON NUT,Push, 3/8"

NUT push-on type, 3/8"

2шт.

33

N14337

SPRING

extension

1шт.
