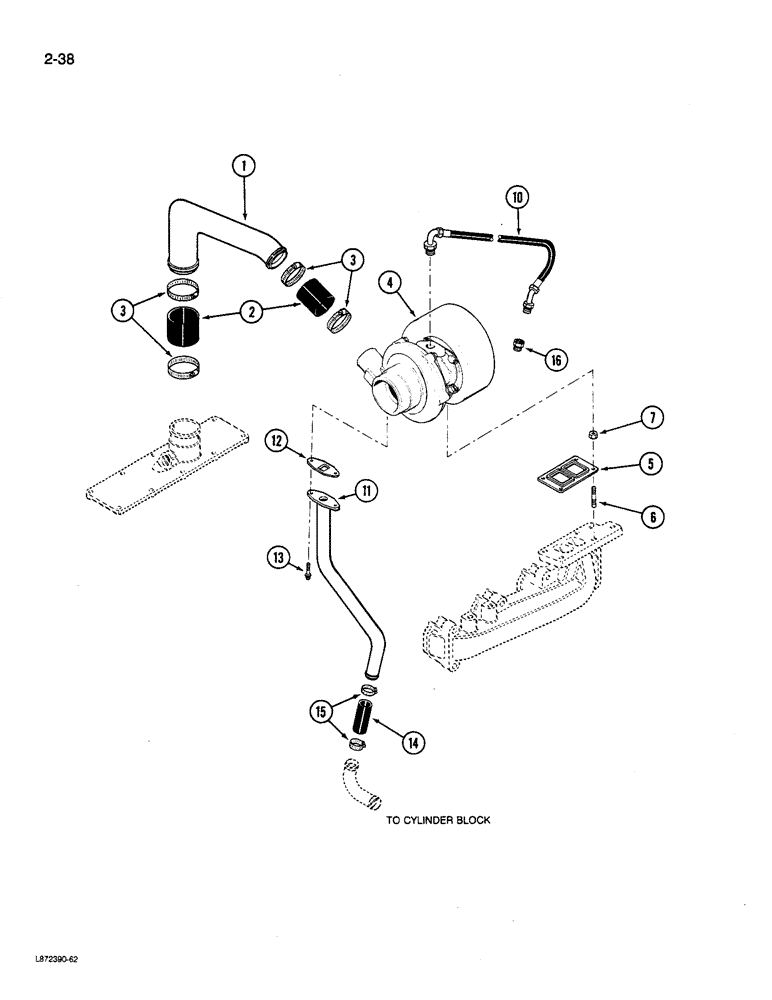

Запчасти Case 580K (02-038) - TURBOCHARGER SYSTEM, 4T-390 ENGINE (02) - ENGINE

1

J912240

TUBE,50.8 mm OD x 321.6 mm L

air intake

1шт.

2

J901804

INTAKE AIR HOSE

HOSE crossover

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY engine, see Figure 02-040

1шт.

5

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J905417

STUD

turbocharger mounting

1шт.

7

J901961

NUT

hex, stud

4шт.

10

J913759

HOSE

Turbocharger Oil Supply, Replaces: P/N J909546

1шт.

11

J903740

TUBE

turbocharger oil drain

1шт.

12

J914388

GASKET

drain tube, Replaces: P/N J901805

1шт.

13

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

hex flange, 8 mm-1.25 x 20 mm

2шт.

14

J903745

LARGE HOSE

HOSE turbocharger oil drain

1шт.

15

214-555

CLAMP hose, Serial Range: 13/16"-1-1/2"

2шт.

16

A77457

FITTING

CONNECTOR supply hose

1шт.
