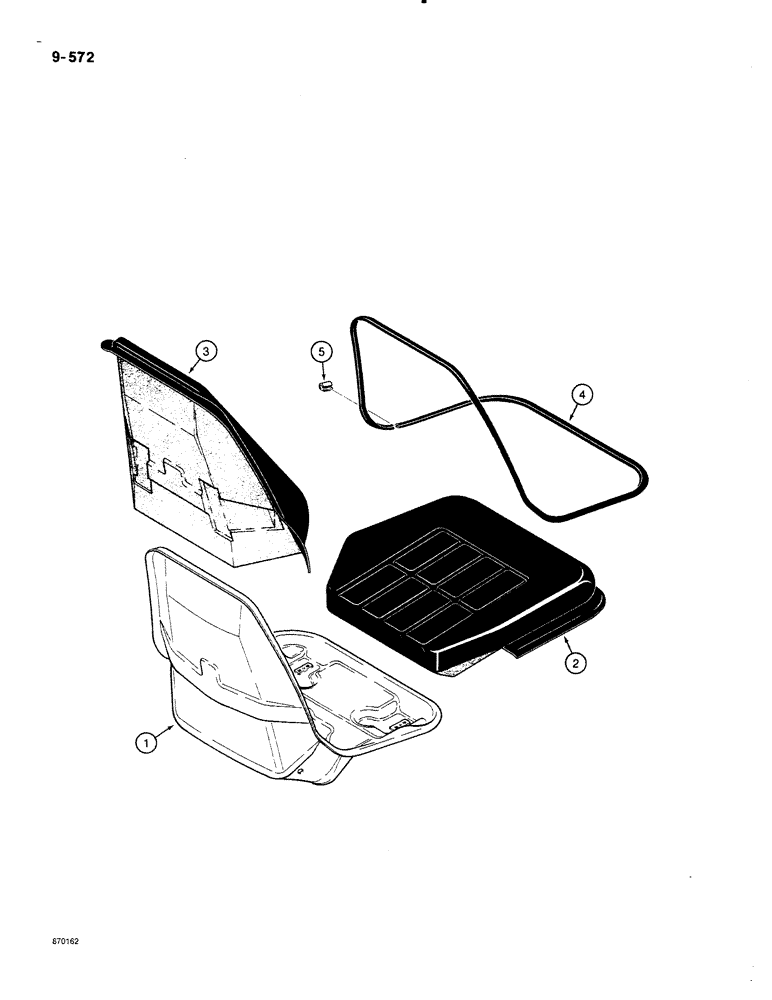

Запчасти Case 580K (09-572) - STANDARD SEAT ASSEMBLY, D123196 (09) - CHASSIS/ATTACHMENTS

D123196

SEAT ASSY.

SEAT ASSEMBLY standard, for seat support see Figure 09-578, Includes: Ref. 1 through 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL seat

1шт.

2

N8462

CUSHION

seat, includes N7802 clip kit, see below

1шт.

3

N8461

CUSHION

backrest, includes N7802 clip kit, see below

1шт.

4

N14614

GASKET

RETAINER strip, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP retainer, order N7802 clip kit, see below

1шт.

Part of Clip Kit P/N N7802

1шт.

345-44

ADHESIVE

pad retaining, in a can, 23 fl. ounces, 680 ml, not shown

1шт.

N7802

CLIP

KIT clip, Includes: Ref. 5 clip above plus 6 additional narrow clips

1шт.
