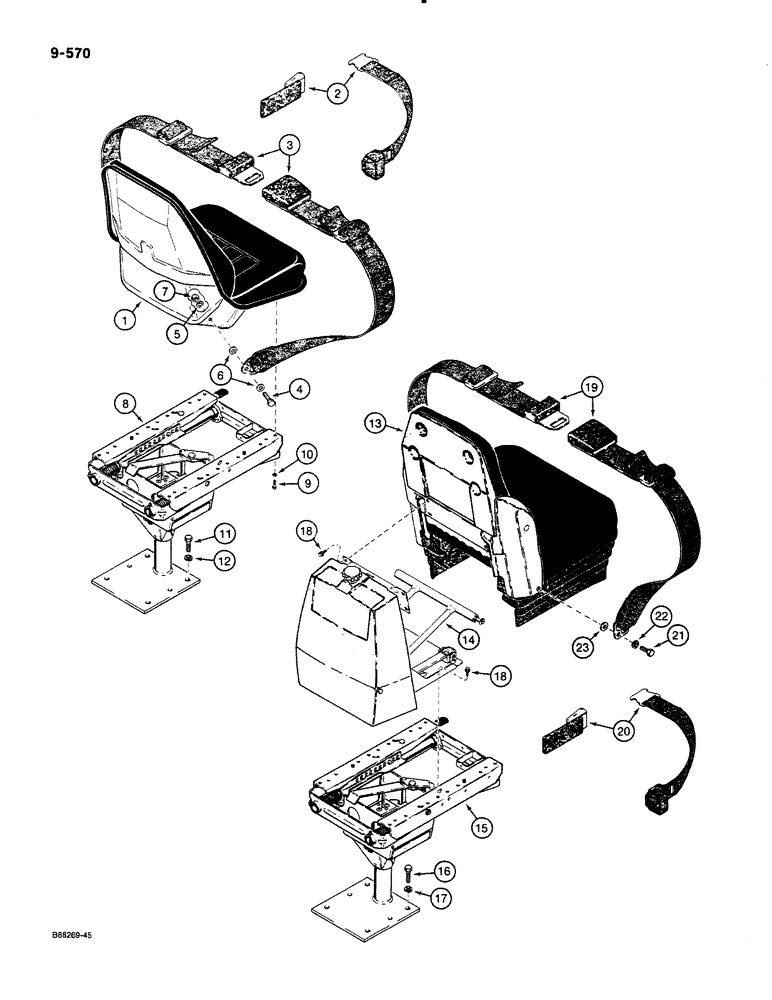

Запчасти Case 580K (09-570) - SEATS AND MOUNTING PARTS, STANDARD AND SUSPENSION (09) - CHASSIS/ATTACHMENTS

1

D123196

SEAT ASSY.

SEAT ASSEMBLY standard, and mounting parts, see Figure 09-572

1шт.

2

D135623

SAFETY BELT

SEAT BELT, 2", 51 mm, wide, with retractor, if used, standard seat and mounting parts

1шт.

3

D85816

SAFETY BELT

SEAT BELT, 3", 76 mm, wide, if used, standard seat and mounting parts

1шт.

4

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Standard seat and mounting parts Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

5

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Standard seat and mounting parts 7/16"

2шт.

6

195-529

WASHER,7/16", SAE

flat, 7/16", plated, standard seat and mounting parts

4шт.

7

425-117

NUT,7/16"-20, G5

hex, 7/16" - 20 NF, plated, standard seat and mounting parts

2шт.

8

D135248

PEDESTAL

SUPPORT ASSEMBLY standard seat and mounting parts, see Figure 09-578

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Standard seat and mounting parts

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Standard seat and mounting parts 5/16"

4шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Standard seat and mounting parts Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Standard seat and mounting parts 1/2"

4шт.

D135232

SEAT

ASSEMBLY suspension and mounting parts, cloth, with armrests, cab models only, see Figure 09-574 for seat assembly, includes N14296 support, N14297 adjuster, D140113 armrest kit, and Ref. 31-40 in Figure 09-582

1шт.

D140825

SEAT

ASSEMBLY suspension and mounting parts, vinyl, with armrests, cab or canopy models, see Figure 09-574 for seat assembly, includes N14296 support, N14297 adjuster, D140113 armrest kit, and Ref. 31-40 in Figure 09-582

1шт.

D136384

SEAT

ASSEMBLY suspension and mounting parts, vinyl, without armrests, also includes Ref. 31-40 in Figure 09-582, Includes: Ref. 13, 14 and 15

1шт.

13

N14339

SEAT

ASSEMBLY, D136384 suspension seat and mounting parts, vinyl, cab or canopy models, without armrests, see Figure 09-574

1шт.

14

N14297

SUSPENSION

ADJUSTER ASSEMBLY suspension seat and mounting parts, see Figure 09-582

1шт.

15

N14296

PEDESTAL

SUPPORT ASSEMBLY suspension seat and mounting parts, see Figure 09-580

1шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Suspension seats and mounting parts Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Suspension seats and mounting parts 1/2"

4шт.

18

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Suspension seats and mounting parts Hex Flg, 5/16"-18 x 5/8", Serr

8шт.

19

D85816

SAFETY BELT

SEAT BELT, 3", 76 mm, wide, if used, suspension seats and mounting parts

1шт.

20

D135623

SAFETY BELT

SEAT BELT, 2", 51 mm, wide, with retractor, if used, suspension seats and mounting parts

1шт.

21

114-303

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

hex head, 7/16" - 20 NF x 1-1/2", plated, suspension seats and mounting parts

2шт.

22

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Suspension seats and mounting parts 7/16"

2шт.

23

195-529

WASHER,7/16", SAE

flat, 7/16", plated, suspension seats and mounting parts

2шт.
