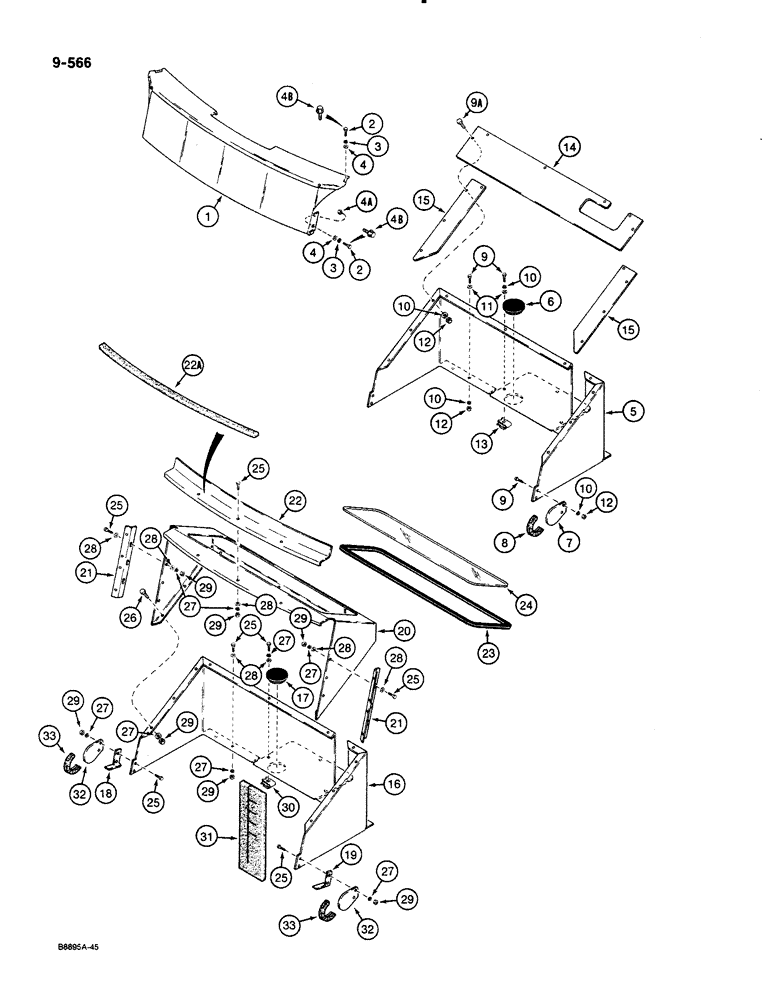

Запчасти Case 580K (09-566) - REAR CLOSURE PANELS, CANOPY MODELS WITH BACKHOE OR REAR COUNTERWEIGHT OR WITH THREE-POINT HITCH, AND (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D135244
PANEL
rear closure, canopy models with backhoe or canopy models without backhoe but with rear counterweight, see Figure 09-634 for decal
1шт.
2
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd, If used, canopy models with backhoe or rear counterweight
7шт.
3
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , If used, canopy models with backhoe or rear counterweight 5/16"
7шт.
4
195-103
WASHER,5/16"
flat, , plated, if used, canopy models with backhoe or rear counterweight 5/16"
7шт.
4a
9635082
NUT,5/16" - 18, Gr 5
Canopy models with backhoe or rear counterweight 5/16"-18, G5
2шт.
4b
D141589
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"
BOLT hex washer head, self-locking, 5/16" - 18 NC x 3/4", plated, replaces bolts and washers on some models, canopy models with backhoe or rear counterweight
7шт.
5
D141305
PANEL
rear closure, canopy models without backhoe with three-point hitch
1шт.
6
205-72
HOLE PLUG BUTTON,3"
PLUG, diameter, if used, canopy models with three-point hitch 3"
1шт.
7
D141390
GUARD
PLATE corner guard, canopy models with three-point hitch
2шт.
8
D33500
LINING
TRIM edge, 7" long, cut from bulk trim, see Parts Substitution List for bulk trim options, canopy models with three-point hitch
2шт.
9
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Canopy models with three-point hitch Hex, 5/16"-18 x 1", G5, Full Thd
11шт.
9a
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd, Canopy models with three-point hitch
10шт.
10
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Canopy models with 3-point hitch 5/16"
21шт.
11
195-521
WASHER,5/16", SAE
flat, 5/16", plated, canopy models with three-point hitch
7шт.
12
9635082
NUT,5/16" - 18, Gr 5
Canopy models with three-point hitch 5/16"-18, G5
18шт.
13
131-637
SPRING NUT,Ret, J, 5/16"-18
J-type, 5/16" - 18 NC, replaces U-type nut, canopy models with three-point hitch
3шт.
14
D141574
COVER
panel, canopy models with three-point hitch
1шт.
15
D141573
COVER
PLATE panel, canopy models with three-point hitch
2шт.
16
D141305
PANEL
rear closure, lower, cab models without backhoe with three-point hitch
1шт.
17
205-72
HOLE PLUG BUTTON,3"
PLUG, diameter, if used, cab models with three-point hitch 3"
1шт.
18
D136688
BRACKET
window track stop, left-hand, cab models with three-point hitch
1шт.
19
D136689
BRACKET
window track stop, right-hand, cab models with three-point hitch
1шт.
20
D141945
PANEL
rear closure, upper, cab models wilth three-point hitch
1шт.
21
D136690
BRACKET
angle, window, closure support, may have holes or slots, cab models with three-point hitch
2шт.
22
D136651
BRACKET
threshold, window, rear, cab models with three-point hitch
1шт.
22a
D126201
RUBBER SEAL,20mm W x 912mm L x 10mm Thk
SEAL, 25/32", 20 mm, wide x 13/32", 10 mm, thick x 35-29/32", 912 mm long, adhesive back, cab models with three-point hitch
1шт.
23
D90207
SEAL, 79", 2006 mm, long, cut from A42677 bulk seal, molding, window, cab models with three-point hitch
1шт.
24
D90206
GLASS
closure panel, cab models with three-point hitch
1шт.
A42677
MOLDING
SEAL bulk roll, 50 feet, 15.24 cm, long, cab models with three-point hitch
1шт.
25
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Cab models with three-point hitch Hex, 5/16"-18 x 1", G5, Full Thd
20шт.
26
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd, Cab models with three-point
10шт.
27
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Cab models with 3-point hitch 5/16"
30шт.
28
195-521
WASHER,5/16", SAE
flat, 5/16", plated, cab models with three-point hitch
16-22шт.
29
9635082
NUT,5/16" - 18, Gr 5
Cab models with three-point hitch 5/16"-18, G5
27шт.
30
131-637
SPRING NUT,Ret, J, 5/16"-18
J-type, 5/16" - 18 NC, black, replaces U-type nut, cab models with three-point hitch
3шт.
31
D141585
SEAL
panel, cab models with three-point hitch
1шт.
32
D141390
GUARD
PLATE corner guard, cab models with three-point hitch
2шт.
33
D33500
LINING
TRIM edge, 7" long, cut from bulk trim, see Parts Substitution List for bulk trim options, cab models with three-point hitch
2шт.
Выбрано товаров: 38
