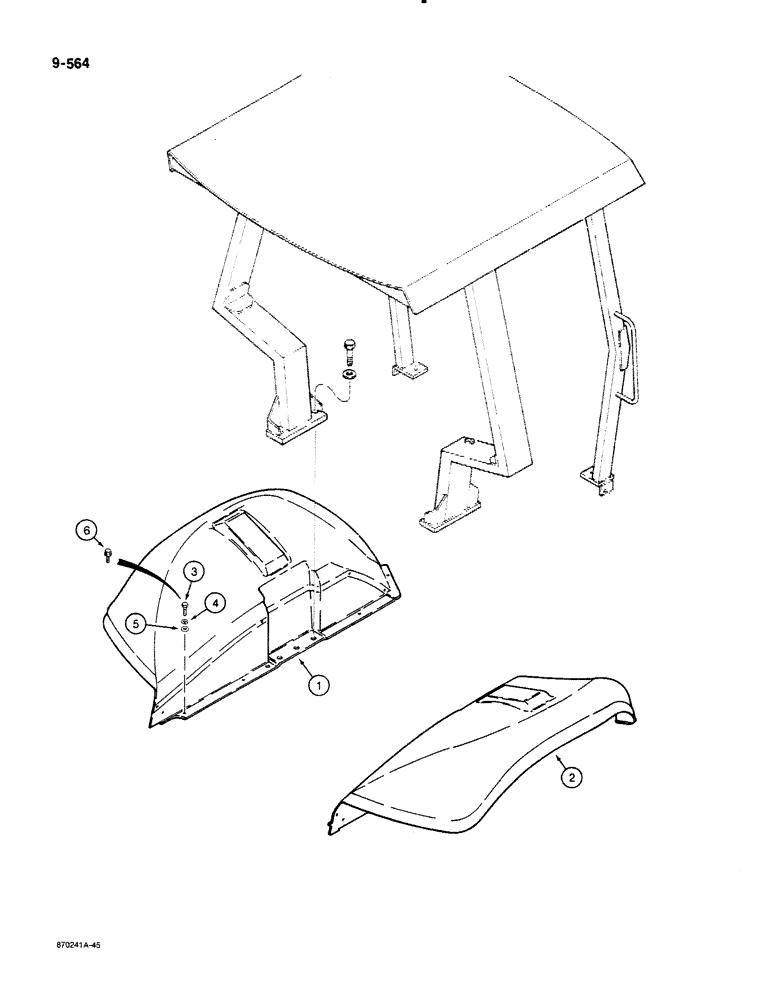

Запчасти Case 580K (09-564) - REAR FENDERS, ROPS CANOPY MODELS (09) - CHASSIS/ATTACHMENTS

1

R52549

FENDER

left-hand

1шт.

2

R52550

FENDER

right-hand

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Fender to floor plate, if used, may be replaced by self-locking bolt on some models

8шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

8шт.

5

195-103

WASHER,5/16"

flat, , plated, if used 5/16"

8шт.

6

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self-locking, 5/16" - 18 NC x 3/4", plated, replaces bolt and washers on some models

8шт.
