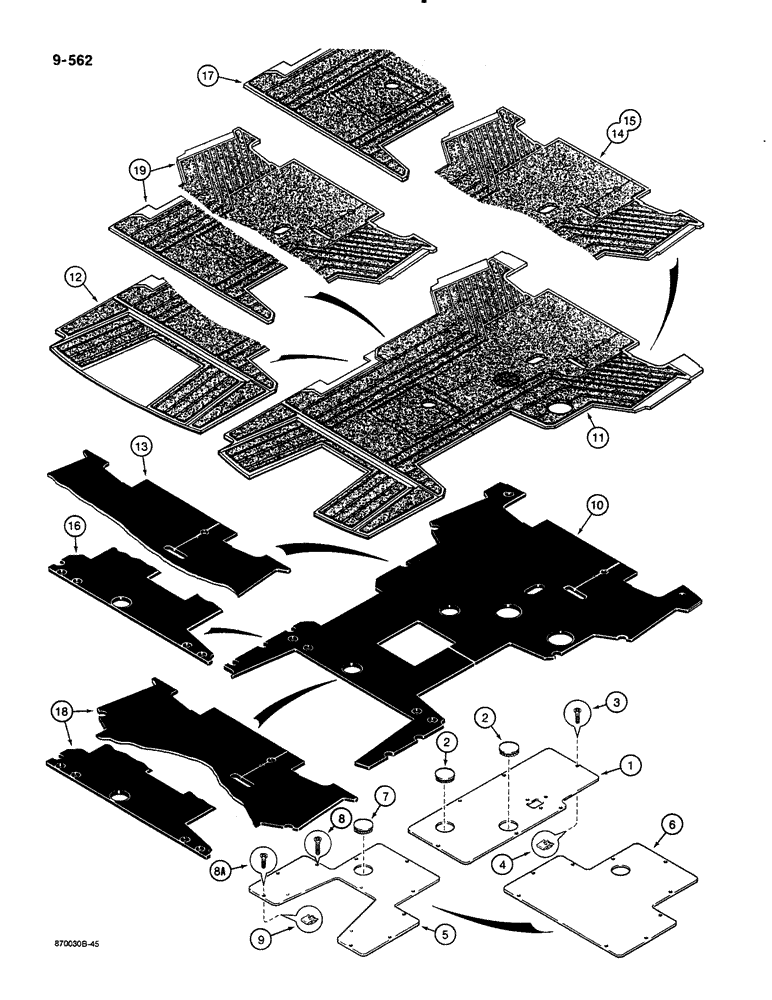

Запчасти Case 580K (09-562) - FLOOR PLATES AND FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

D127077

PLATE

floor, front cover, with or without backhoe

1шт.

2

205-72

HOLE PLUG BUTTON,3"

PLUG button, , steel, front floor plate, if used 3"

2шт.

3

164-206

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

BOLT hex socket flat head, 5/16" - 18 NC x 3/4", grade 8, plated, front floor plate, replaces 1" bolt

6шт.

4

131-637

SPRING NUT,Ret, J, 5/16"-18

J-type, 5/16" - 18 NC, replaces U-type nut

6шт.

5

D133813

PLATE

floor, rear cover, with plug hole, cab or canopy models with backhoe, may replace plate without plug hole on some models if used with 205-72 plug

1шт.

6

D135978

COVER

PLATE floor, rear cover, cab or canopy models without backhoe, with rear counterweight

1шт.

7

205-72

HOLE PLUG BUTTON,3"

PLUG button, , steel, rear floor plate, if used 3"

1шт.

8

164-207

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 1"

BOLT hex socket flat head, 5/16" - 18 NC x 1", grade 8, plated, rear floor plate, no longer used, order Ref. 8A bolt

7шт.

8a

164-206

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

BOLT hex socket flat head, 5/16" - 18 NC x 3/4"

2-9шт.

9

131-637

SPRING NUT,Ret, J, 5/16"-18

J-type, 5/16" - 18 NC, rear floor plate, replaces U-type nut

9шт.

10

D138736

FLOOR MAT

PAD floormat, service replacement

1шт.

11

D138735

FLOOR MAT

FLOORMAT, used with D138736 pad, cab models with backhoe, for service order D139802 floormat

1шт.

12

D139802

FLOOR MAT

FLOORMAT service replacement

1шт.

13

D139842

PAD, D139802, D139838, or D139839 floormat, used on cab models without backhoe or canopy models with or without backhoe, for service order D138736 pad

1шт.

14

D139838

FLOORMAT, used with D139842 pad, canopy models with backhoe, for service order D139802 floormat

1шт.

15

D139839

FLOORMAT, used with D139842 pad, canopy models without backhoe, for service order D139802 floormat

1шт.

16

D139843

PAD, D139840 floormat, used on cab models with three-point hitch, for service order D138736 pad

1шт.

17

D139840

FLOORMAT, used with D139843 pad, cab models with three-point hitch, for service order D139802 floormat

1шт.

18

D139844

PAD, D139841 floormat, used on canopy models with three-point hitch, for service order D138736 pad

1шт.

19

D139841

FLOORMAT, used with D139844 pad, canopy models with three-point hitch, for service order D139802 floormat

1шт.
