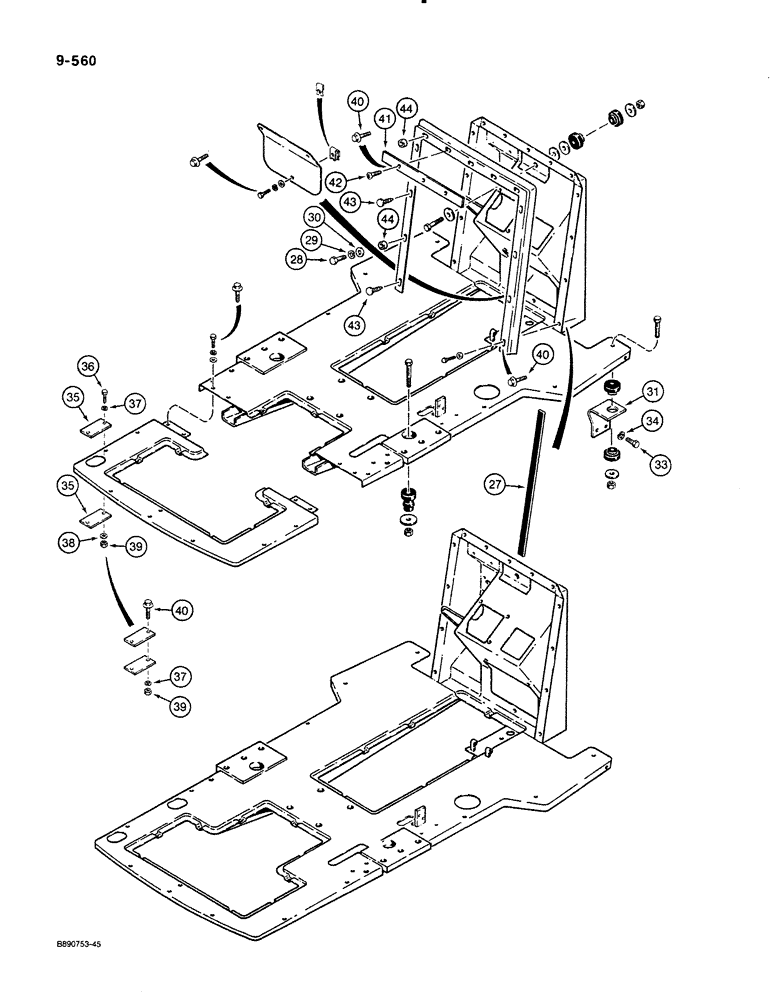

Запчасти Case 580K (09-560) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

27

REF

INSTRUCTION

SEAL, 112", 2845 mm, long, cut from L35819 bulk seal, adhesive one side, firewall, used on models with cab

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Cab models, see front instrument panel in Figure 04-116 for remainder of hardware, if used

4-7шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

4-7шт.

30

195-521

WASHER,5/16", SAE

flat, 5/16", plated, if used

4-7шт.

31

D140554

SUPPORT

BRACKET frame mount, right-hand front

1шт.

32

D140555

SUPPORT

BRACKET frame mount, left-hand front, not shown

1шт.

33

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

35

D140261

PLATE ASSY.

PLATE boom latch hole, used on models without backhoe, with rear counterweight

2шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used, may be replaced by Ref. 40 bolt Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

38

195-521

WASHER,5/16", SAE

flat, 5/16", plated, if used

2шт.

39

9635082

NUT,5/16" - 18, Gr 5

2шт.

40

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self-locking, 5/16" - 18 NC x 3/4", plated, may replace bolt and washer on some models

5-7шт.

41

D143659

PLATE

steel

1шт.

42

182-501

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

machine, pan Phillips head, 5/16" - 18 NC x 3/4"

3шт.

43

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

RETAINER push-in, plastic

4шт.

44

D35217

BUSHING

SPACER, seal to front instrument panel

4шт.

L35819

RUBBER SEAL

SEAL foam rubber, bulk roll, adhesive back, 1", 25 mm, wide x 1/8", 3 mm, thick x 50 ft, 15.2 m, long

1шт.
