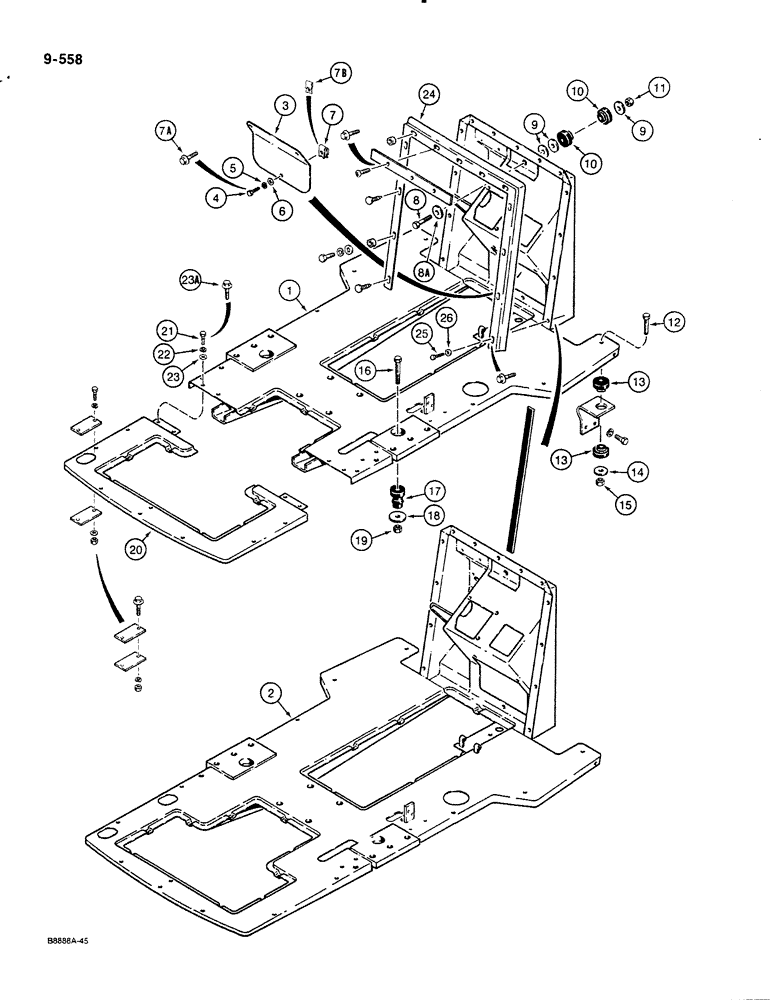

Запчасти Case 580K (09-558) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D139986

BRACKET

FRAME operators compartment, without hole on right-hand side of firewall wrapper, loader models only or used with D141960, Ref. 20, rear frame for bolt-on demountable backhoe models, no longer used, for service order D141567 frame

1шт.

1a

D141567

BRACKET

FRAME operators compartment, with hole on right-hand side of firewall wrapper, loader models only or used with D141960, Ref. 20 rear frame for bolt-on demountable backhoe models, not shown

1шт.

2

D139985

BRACKET

FRAME operators compartment, without hole on right-hand side of firewall wrapper, loader integral backhoe models, no longer used, for service order D141566 frame

1шт.

2a

D141566

BRACKET

FRAME operators compartment, with hole on right-hand side of firewall wrapper, loader integral backhoe models, not shown

1шт.

3

D139180

COVER

PLATE access, in firewall

1шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used, may be replaced with Ref. 7A bolt Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

3шт.

6

195-521

WASHER,5/16", SAE

flat, 5/16", plated, if used

3шт.

7

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16" - 18 NC, if used, may be replaced by J-type nut, Ref. 7B

3шт.

7a

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self-locking, 5/16" - 18 NC x 3/4", plated

3шт.

7b

131-637

SPRING NUT,Ret, J, 5/16"-18

J-type, 5/16" - 18 NC

3шт.

8

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

hex head, 5/8" - 11 NC x 3-3/4"

1шт.

8a

D90873

WASHER

flat, special

1шт.

9

D89007

WASHER

flat, 5/8", hardened, special

3шт.

10

D138565

SHOCK ABSORBER

INSULATOR frame mounting, front

2шт.

11

129-183

NUT,5/8"-11, G8

1шт.

12

23061R1

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex head, 5/8" - 11 NC x 4", plated

2шт.

13

D138565

SHOCK ABSORBER

INSULATOR frame mounting, front

4шт.

14

D89007

WASHER

flat, 5/8", hardened, special

2шт.

15

129-183

NUT,5/8"-11, G8

2шт.

16

113-2642

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

17

A141451

SHOCK ABSORBER

INSULATOR frame mount, rear, rubber

2шт.

18

D89007

WASHER

flat, 5/8", hardened, special

2шт.

19

129-183

NUT,5/8"-11, G8

2шт.

20

D141960

PLATFORM ASSY.

FRAME rear, used with D139986 or D141567 frame, Ref. 1 or 1A, frame, cab or canopy models with bolt-on demountable backhoe or cab or canopy loader only models with rear counterweight

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used, may be replaced Ref. 23A bolt Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

4шт.

23

195-521

WASHER,5/16", SAE

flat, 5/16", plated, if used

4шт.

23a

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self-locking, 5/16" - 18 NC x 3/4", plated

4шт.

24

D132290

SEAL

firewall, used on models without cab

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Lower mounting holes, used with Ref. 24 seal, for upper mounting hole hardware, see front instrument panel in Figure 04-116, if used, may be replaced by self-locking bolt, Ref. 40 in Figure 09-560

2шт.

26

195-103

WASHER,5/16"

flat, , plated, used with Ref. 24 seal, if used 5/16"

2шт.
