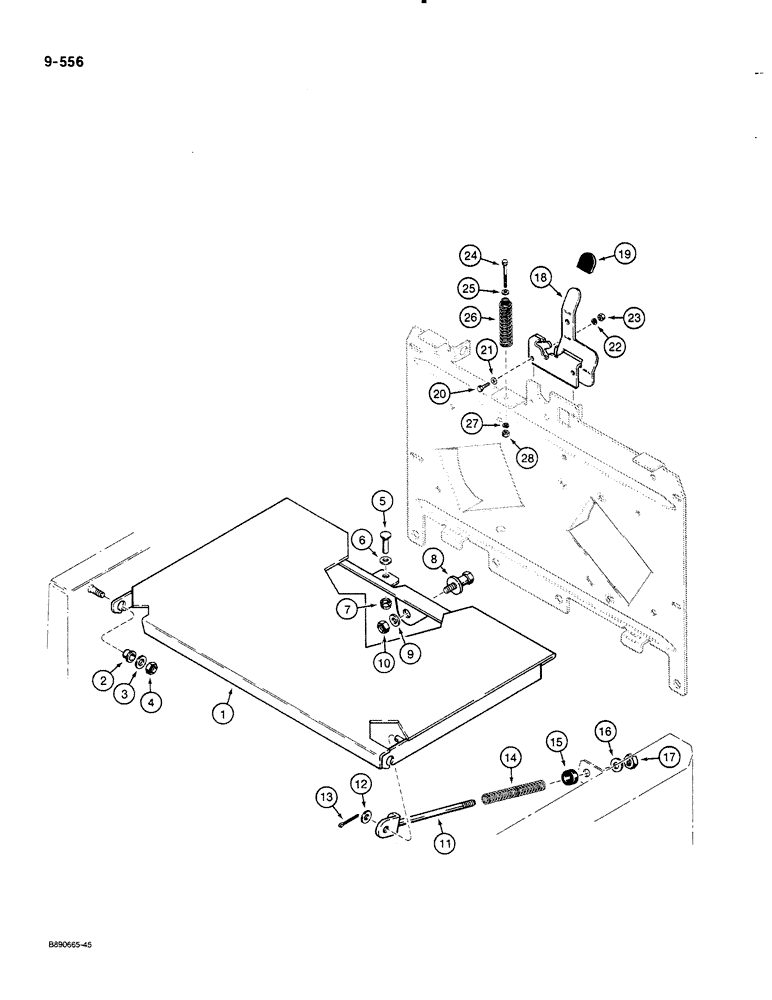

Запчасти Case 580K (09-556) - UPRIGHT COVER AND HOOD LATCH RELEASE, USED ON MODELS WITHOUT AIR CLEANER AIR DUCT BOX (09) - CHASSIS/ATTACHMENTS

1

D144452

COWL

COVER chassis upright

1шт.

2

D134837

BEARING,10 mm ID x 26 mm OD x 8 mm

cover pivot

2шт.

3

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

4

131-52

NUT,3/8"-16, GC

NUT hex, self-locking, 3/8" - 16 NC, plated

2шт.

5

141-52

CLEVIS PIN,1/4" x .770"

PIN, 1/4", plated, special length

1шт.

6

195-518

WASHER,1/4", SAE

flat, 1/4", plated

1шт.

7

131-867

PUSH-ON NUT,1/4"-20, Push-on

1/4", push-on type with cap

1шт.

8

D136115

LATCH

STRIKER upright cover

1шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened, special

1шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8" - 16 NC, plated

1шт.

11

D134872

ROD

upright cover support

1шт.

12

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

13

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

14

D125336

COIL SPRING

SPRING return, upright cover

1шт.

15

D125335

BUMPER

spring stop

1шт.

16

195-518

WASHER,1/4", SAE

flat, 1/4", plated

1шт.

17

131-2

NUT,1/4"-20, GB

NUT hex, self-locking, 1/4" - 20 NC

1шт.

18

D144414

LATCH

hood release

1шт.

19

D144519

CAP

latch lever

1шт.

20

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

21

495-21031

WASHER,1/4"

flat, , plated 1/4"

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

23

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

24

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

25

195-518

WASHER,1/4", SAE

flat, 1/4", plated

1шт.

26

D136113

SPRING

hood pop-up

1шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.
