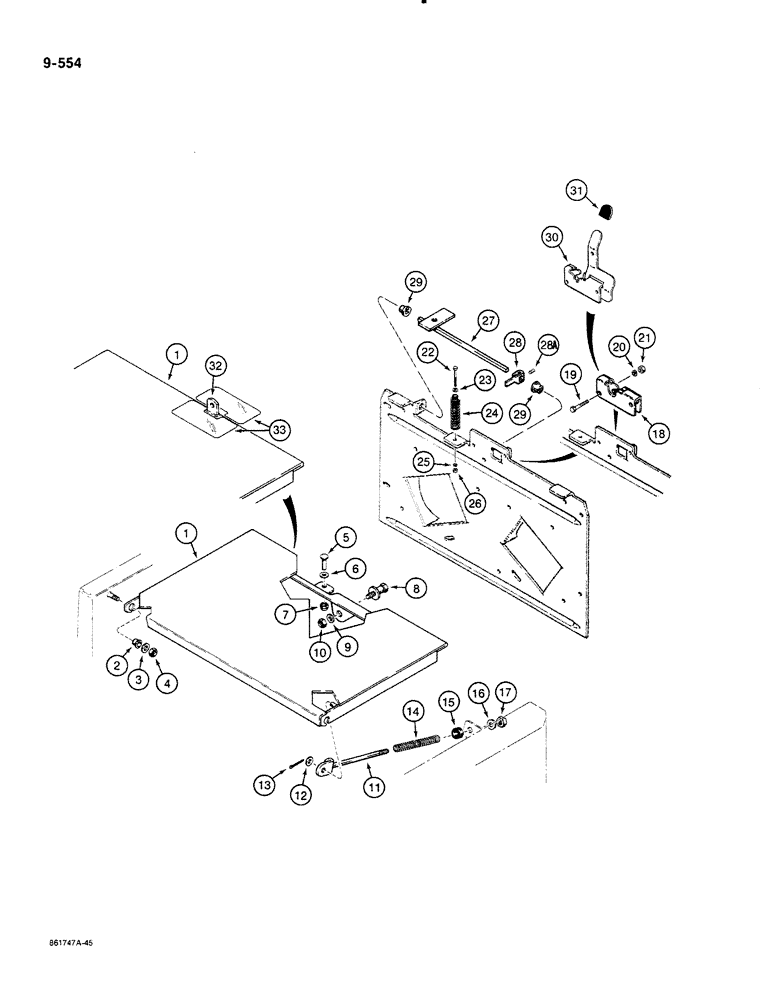

Запчасти Case 580K (09-554) - UPRIGHT COVER AND HOOD LATCH RELEASE, USED ON MODELS WITH AIR CLEANER AIR DUCT BOX (09) - CHASSIS/ATTACHMENTS

1

D136057

PANEL

COVER chassis upright

1шт.

2

D134837

BEARING,10 mm ID x 26 mm OD x 8 mm

cover pivot

2шт.

3

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

4

131-52

NUT,3/8"-16, GC

NUT hex, self-locking, 3/8" - 16 NC, plated

2шт.

5

141-52

CLEVIS PIN,1/4" x .770"

1/4", plated, special length

1шт.

6

195-518

WASHER,1/4", SAE

flat, 1/4", plated

1шт.

7

131-867

PUSH-ON NUT,1/4"-20, Push-on

1/4", push-on type with cap

1шт.

8

D136115

LATCH

STRIKER upright cover

1шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened, special

1шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8" - 16 NC, plated

1шт.

11

D134872

ROD

upright cover support

1шт.

12

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

13

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

14

D125336

COIL SPRING

SPRING return, upright cover

1шт.

15

D125335

BUMPER

spring stop

1шт.

16

195-518

WASHER,1/4", SAE

flat, 1/4", plated

1шт.

17

131-2

NUT,1/4"-20, GB

NUT hex, self-locking, 1/4" - 20 NC

1шт.

18

D136086

LATCH

hood release

1шт.

Replaced by hood latch service kit P/N D103426

1шт.

19

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

23

195-518

WASHER,1/4", SAE

flat, 1/4", plated

1шт.

24

D136113

SPRING

hood pop-up

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

27

D136414

ROD

release

1шт.

Replaced by hood latch service kit P/N D103426

1шт.

28

D136037

LEVER

hood release, Includes: Ref. 28A

1шт.

Replaced by hood latch service kit P/N D103426

1шт.

28a

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

hex socket headless, No. 8 - 32 NC x 3/8", cup point

1шт.

Replaced by hood latch service kit P/N D103426

1шт.

29

D136061

BEARING

hood release lever

2шт.

Replaced by hood latch service kit P/N D103426

1шт.

D103426

KIT

service, hood latch, includes installation instructions, replaces Ref. 18 and 27 through 29, Includes: Ref. 30 through 33

1шт.

30

D144414

LATCH

hood release

1шт.

31

D144519

CAP

latch lever

1шт.

32

D136293

LARGE PLATE

PLATE tab, welds to upright cover

1шт.

33

D145370

DECAL

STRIP decal, prevents latch from scratching upright cover and hood

2шт.
