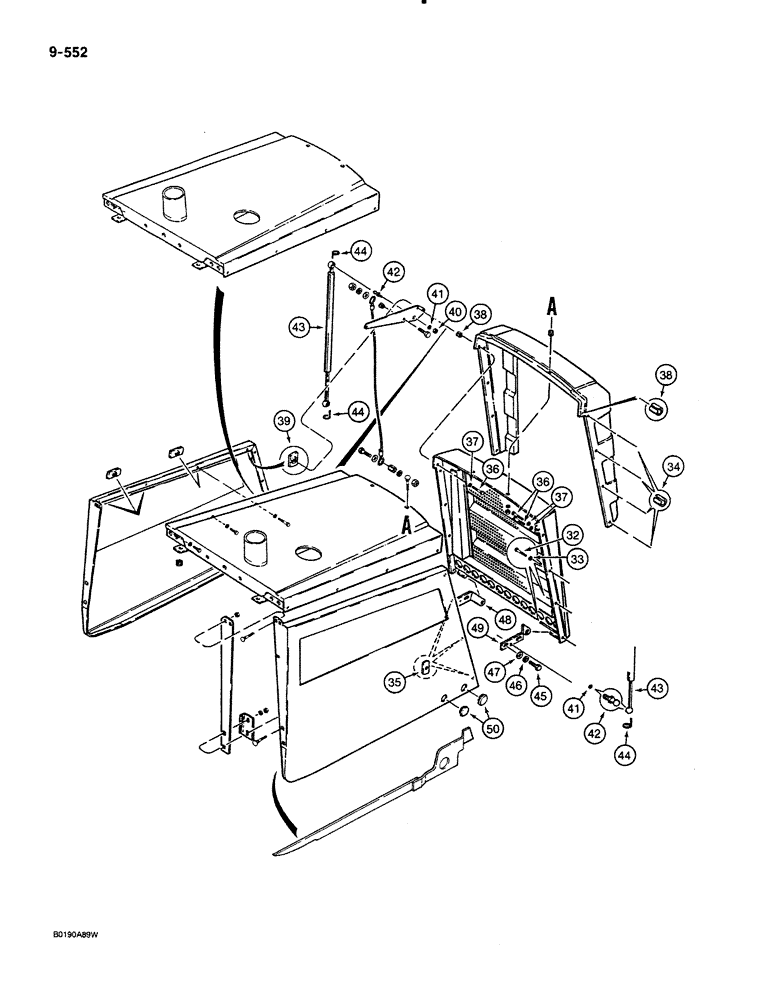

Запчасти Case 580K (09-552) - HOOD, ENGINE SIDE PANELS, AND GRILLE UNIT, USED ON MODELS WITHOUT AIR CLEANER AIR DUCT BOX (09) - CHASSIS/ATTACHMENTS

32

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

6шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

34

D136619

SPACER

17/64", 7 mm, ID x 3/8", 10 mm, OD x 1/2", 13 mm, long

8шт.

35

129-468

NUT

weld, 1/4" - 20 NC, special

6шт.

36

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

38

D136620

SPACER

17/64", 7 mm, ID x 3/8", 10 mm, OD x 25/64", 10 mm, long, one each side of grille to grille guard uppermost mounting holes only

2шт.

39

129-468

NUT

weld, 1/4" - 20 NC, special

4шт.

40

9635082

NUT,5/16" - 18, Gr 5

2шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

42

1304648C1

STUD

ball, cylinder

4шт.

43

D132726

CYLINDER ASSY.

CYLINDER spring, counterbalance, hood

2шт.

44

F44883

CLIP,DIN 71805 - S10

ball stud retainer

4шт.

45

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

47

195-525

WASHER,3/8", SAE

flat, 3/8", plated

4шт.

48

D134669

BRACKET

hinge, left-hand, attaches, Serial Range: grille-chassis

1шт.

49

D134668

BRACKET

hinge, right-hand, attaches, Serial Range: grille-chassis

1шт.

50

D140267

PLUG,30.16mm OD

side panels, if used

4шт.
