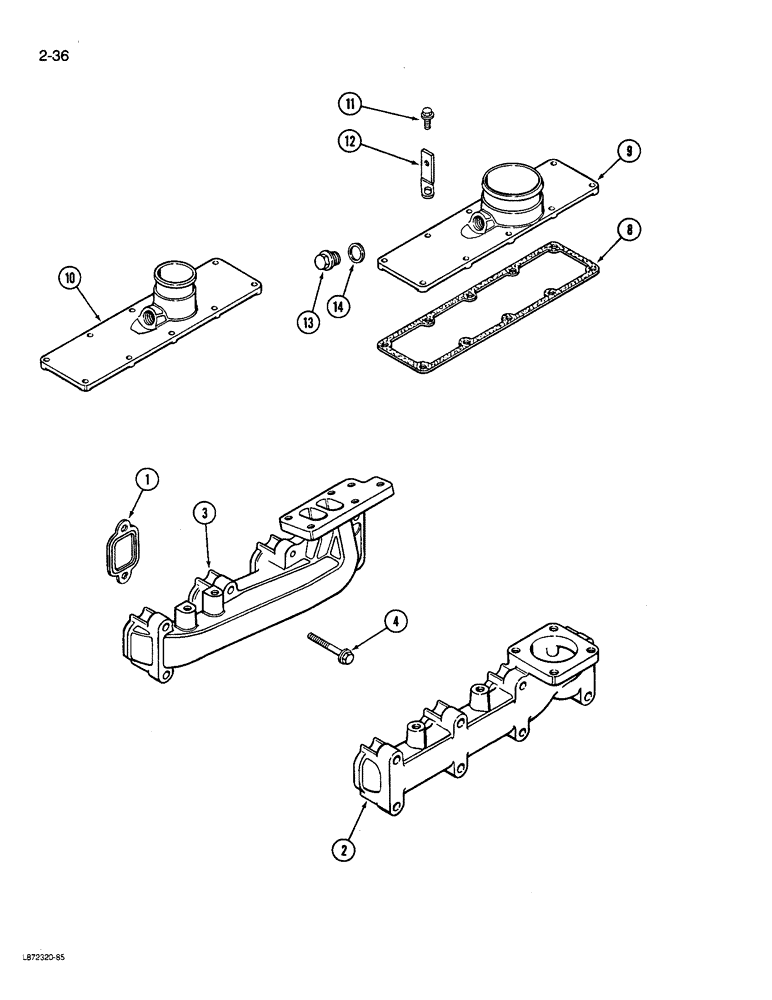

Запчасти Case 580K (02-036) - MANIFOLDS, EXHAUST, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

2

J901223

MANIFOLD

exhaust, natural aspirated

1шт.

3

J901919

MANIFOLD

exhaust, turbocharged

1шт.

4

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT hex flange, 10 mm-1.50 x 70 mm, exhaust

8шт.

8

J914028

GASKET

intake manifold, Replaces: P/N J901999

1шт.

9

NSS

NOT SOLD SEPARAT

MANIFOLD intake, natural aspirated, order P/N A77415 kit

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD intake, turbocharged, order P/N A77416 kit

1шт.

11

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

intake manifold

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE fuel tube, see Figure 03-078, intake

1шт.

13

J907185

PLUG

ASSEMBLY manifold, intake

1шт.

14

J906773

WASHER

plug sealing, intake

1шт.

A77415

COVER

KIT intake manifold, natural aspirated, Includes: Ref. 9, 13 and 14

1шт.

A77416

COVER

KIT intake manifold, turbocharged, Includes: Ref. 10, 13 and 14

1шт.
