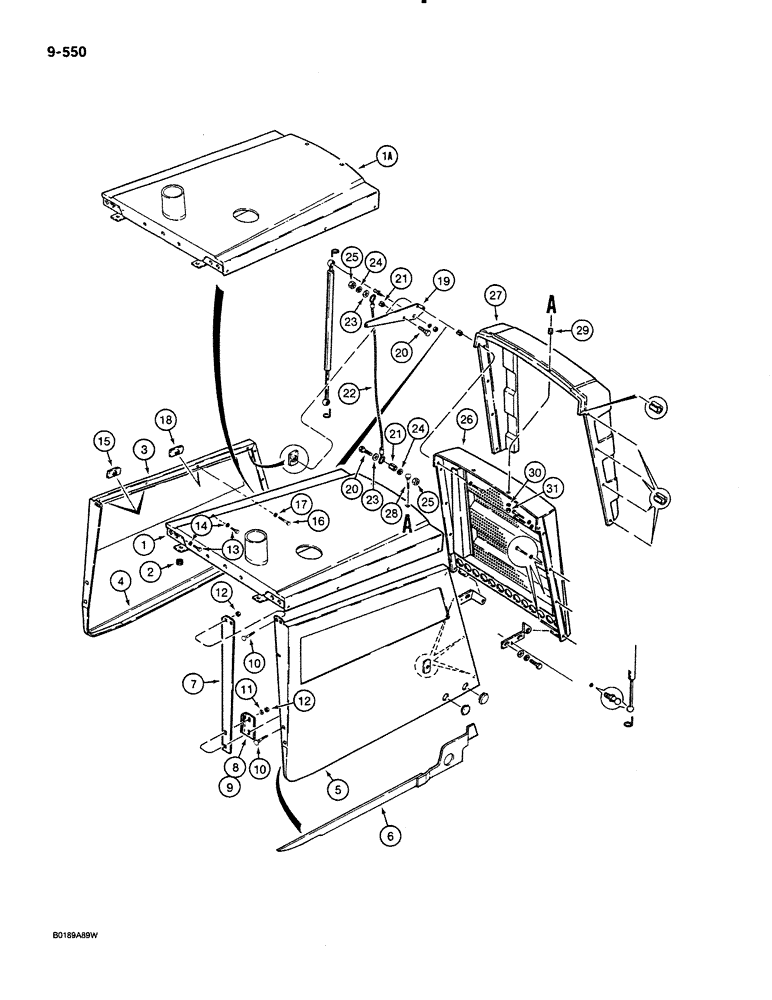

Запчасти Case 580K (09-550) - HOOD, ENGINE SIDE PANELS, AND GRILLE UNIT, USED ON MODELS WITHOUT AIR CLEANER AIR DUCT BOX (09) - CHASSIS/ATTACHMENTS

1

D144397

COWL

HOOD, used on models without turbocharged engine

1шт.

1a

D144409

COWL

HOOD, used on models with turbocharged engine

1шт.

D102836

ASSEMBLY

KIT bumper, includes instruction sheet, Includes: Ref. 2

1шт.

Ref. P/N D102836 bumper kit - Order individual bumpers, (2) P/N D139926, Ref. 2.

1шт.

2

D139926

BUMPER

hood to air cleaner mounting bracket

2шт.

3

D143245

COWL

PANEL engine, left-hand side, Includes: Ref. 4

1шт.

4

D143260

SUPPORT

PLATE support, side panel stiffener

1шт.

5

D143244

PANEL, SIDE

PANEL engine, right-hand side, Includes: Ref. 6

1шт.

6

D143259

SUPPORT

PLATE support, side panel stiffener

1шт.

7

D134654

PLATE

engine side panels, rear guide

2шт.

8

D143714

SUPPORT

BRACKET rear guide, right-hand side panel

1шт.

9

D143715

SUPPORT

BRACKET rear guide, left-hand side panel

1шт.

10

111-364

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

8шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, 3/8", plated, at rear guide brackets

4шт.

12

131-52

NUT,3/8"-16, GC

NUT hex, self-locking, 3/8" - 16 NC, plated

8шт.

13

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

15

129-468

NUT

weld, 1/4" - 20 NC, special

4шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

129-468

NUT

weld, 1/4" - 20 NC, special

2шт.

19

D143903

SUPPORT

BRACKET cylinder retaining, hood

2шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

21

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

cable

4шт.

22

D133403

CABLE

steel, hood retaining

2шт.

23

195-525

WASHER,3/8", SAE

flat, 3/8", plated

4шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

26

D143506

GRILLE ASSY

GRILLE tilt

1шт.

27

D143461

GRILLE

GUARD grille, rubber

1шт.

28

111-272

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/4", G5, Full Th

BOLT, CARRIAGE, Short NK, 5/16"- 18 x 1 1/4", Full Thd

2шт.

29

D76208

SPACER

13/32", 10 mm, ID x 5/8", 16 mm, OD x 31/64", 12 mm, long

2шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.
