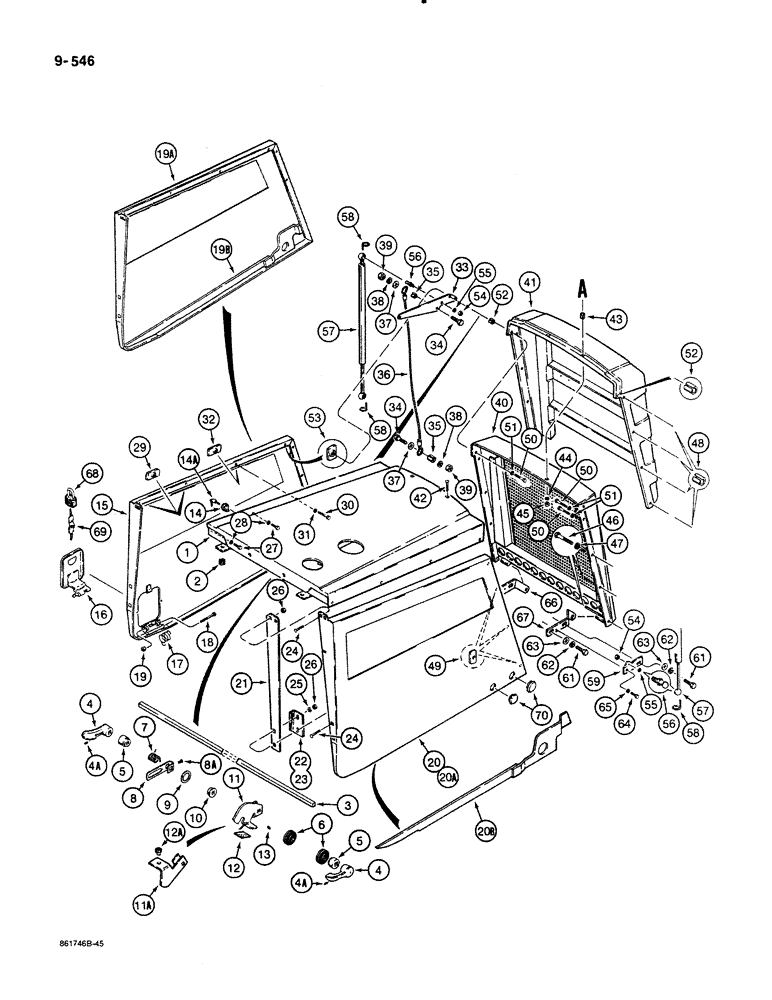

Запчасти Case 580K (09-546) - HOOD, ENGINE SIDE PANELS, AND GRILLE UNIT, USED ON MODELS WITH AIR CLEANER AIR DUCT BOX (09) - CHASSIS/ATTACHMENTS

1

D136403

HOOD

engine, for air cleaner air duct and seal mounted to weld studs under the hood see Figure 02-014, and for muffler exhaust pipe and adapter tube mounted to weld studs under the hood see Figure 02-026

1шт.

D102836

ASSEMBLY

KIT bumper, includes instruction sheet, Includes: Ref. 2

1шт.

2

D145721

BUMPER

hood to air cleaner mounting bracket

2шт.

3

D136062

SHAFT

square, hood

1шт.

4

D136425

LEVER

hood release, Includes: Ref. 4A

2шт.

4a

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

5

D136060

BEARING

, Serial Range: shaft-lever

2шт.

6

D136412

GROMMET

bearing seal

2шт.

7

D136467

SPRING

lever return

1шт.

8

D136091

LEVER

hood spring, Includes: Ref. 8A

1шт.

8a

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

hex socket, No. 8 - 32 NC x 3/8", cone point, may replace slotted head set screw

1шт.

9

A64584

SNAP RING,#62, Ext

Ring, Snap, , special #62, Ext

1шт.

10

D136061

BEARING

hood release bellcrank

1шт.

11

D136038

CRANK LEVER

LEVER hood release, used with Ref. 12 foam pad, if used

1шт.

11a

D138843

LEVER

hood release, used with Ref. 12A bumper, if used

1шт.

12

D136763

BUMPER

PAD foam, adhesive back one side, hood stop, if used

1шт.

12a

L60224

BUMPER

hood stop, if used

1шт.

13

178-834

SET SCREW,Hex Soc, #10-24 x 1/2"

hex headless, No. 10 - 24 NC x 1/2", cup point

1шт.

14

D136114

LOCK

ASSEMBLY includes two keys, hood, Includes: Ref. 14A

1шт.

14a

N14119

KEY

S hood lock, used on tractor PIN 17417801 thru 17417850 only

2шт.

14a

N14440

KEY

S hood lock

2шт.

15

D135397

PANEL

engine, left-hand side, with access door, without stiffener plate, no longer used, order D143245 panel, Ref. 19A

1шт.

16

D92446

DOOR

access, service replacement, remove decal that applies to radiator access only, if used

1шт.

17

D121677

SPRING

access door, if used

1шт.

18

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

If used Hex, 1/4"-20 x 3 1/4", G5

1шт.

19

131-2

NUT,1/4"-20, GB

NUT hex, self-locking, 1/4" - 20 NC, if used

1шт.

19a

D143245

COWL

PANEL engine, left-hand side, without access door, with stiffener plate, Includes: Ref. 19B

1шт.

19b

D143260

SUPPORT

PLATE support, side panel stiffener

1шт.

20

D135398

PANEL

engine, right-hand side, without stiffener plate, no longer used, order D143244 panel

1шт.

20a

D143244

PANEL, SIDE

PANEL engine, right-hand side, with stiffener plate, Includes: Ref. 20B

1шт.

20b

D143259

SUPPORT

PLATE support, side panel stiffener

1шт.

21

D134654

PLATE

engine side panels, rear guide

2шт.

22

D136054

BRACKET

rear guide, right-hand side panel

1шт.

23

D136055

BRACKET

rear guide, left-hand side panel

1шт.

24

111-364

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

8шт.

25

195-525

WASHER,3/8", SAE

flat, 3/8", plated, at rear guide brackets, replaces internal/external tooth lock washer on some models

4шт.

26

131-52

NUT,3/8"-16, GC

NUT hex, self-locking, 3/8" - 16 NC, plated

8шт.

27

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

29

129-468

NUT

weld, 1/4" - 20 NC, special

4шт.

30

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

32

252552C1

NUT

weld, 1/4" - 20 NC, special

2шт.

33

D136618

BRACKET

cylinder retaining, hood

2шт.

34

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

35

D123539

BUSHING

SPACER, 13/32", 10 mm, ID x 5/8", 16 mm, OD x 1/4", 6 mm, long

4шт.

36

D133403

CABLE

steel, hood retaining

2шт.

37

195-525

WASHER,3/8", SAE

flat, 3/8", plated

4шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

40

D134661

GRILLE

tilt

1шт.

41

D131610

GUARD

grille, rubber

1шт.

42

111-272

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/4", G5, Full Th

BOLT, CARRIAGE, Short NK, 5/16"- 18 x 1 1/4", Full Thd

2шт.

43

D76209

SPACER

13/32", 10 mm, ID x 5/8", 16 mm, OD x 5/8", 15 mm, long, replaces 1/2" long spacer used on some models

2шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

45

9635082

NUT,5/16" - 18, Gr 5

2шт.

46

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

6шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

48

D136619

SPACER

17/64", 7 mm, ID x 3/8", 10 mm, OD x 1/2", 13 mm, long

8шт.

49

129-468

NUT

weld, 1/4" - 20 NC, special

6шт.

50

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

51

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

52

D136620

SPACER

17/64", 7 mm, ID x 3/8", 10 mm, OD x 25/64", 10 mm, long, one each side of grille to grille guard uppermost mounting holes only

2шт.

53

129-468

NUT

weld, 1/4" - 20 NC, special

4шт.

54

9635082

NUT,5/16" - 18, Gr 5

4шт.

55

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

56

1304648C1

STUD

ball, cylinder

4шт.

57

D132726

CYLINDER ASSY.

CYLINDER spring, counterbalance, hood

2шт.

58

F44883

CLIP,DIN 71805 - S10

ball stud retainer

4шт.

59

D136583

BRACKET

cylinder mounting, lower, right-hand

1шт.

60

D136584

BRACKET

cylinder mounting, lower, left-hand, not shown

1шт.

61

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

62

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

63

195-525

WASHER,3/8", SAE

flat, 3/8", plated

4шт.

64

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

65

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

66

D134669

BRACKET

hinge, left-hand, attaches, Serial Range: grille-chassis

1шт.

67

D134668

BRACKET

hinge, right-hand, attaches, Serial Range: grille-chassis

1шт.

68

D93753

PADLOCK

access lid, if used, Includes: Ref. 69

1шт.

69

R29555

KEY

for Master padlock only

2шт.

69

D93751

SET OF 2 KEYS

KEY for Yale padlock only

2шт.

70

D140267

PLUG,30.16mm OD

side panels, if used

4шт.
