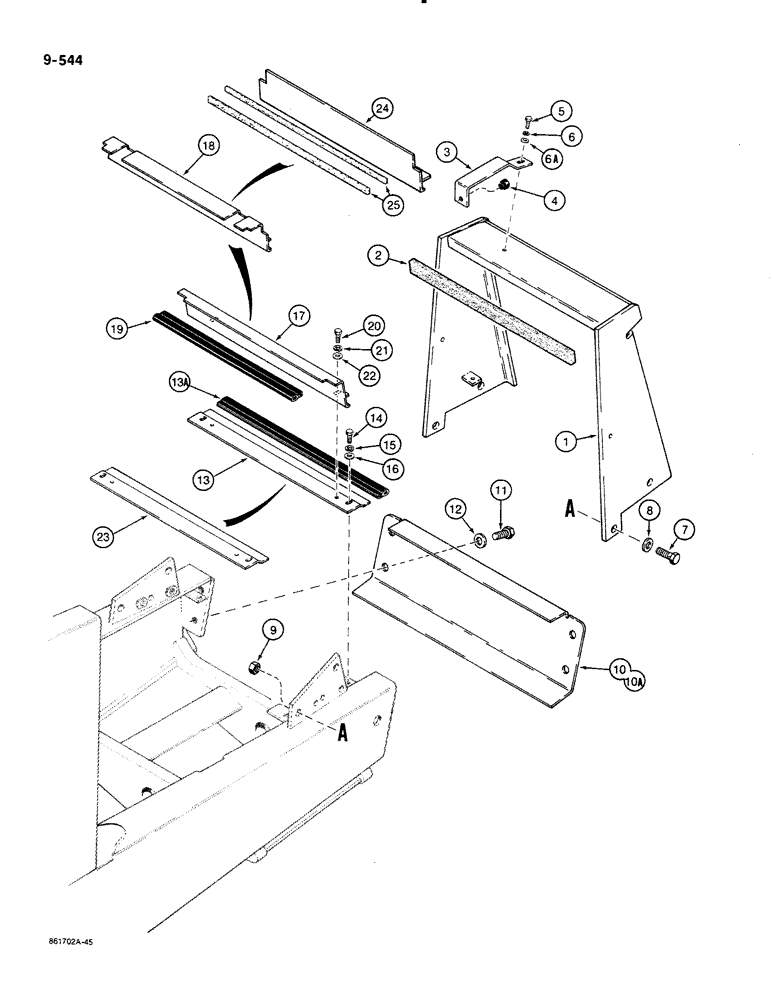

Запчасти Case 580K (09-544) - RADIATOR SHROUD, PUMP GUARD, AND FRONT COVERS (09) - CHASSIS/ATTACHMENTS

1

D136101

SUPPORT ASSY.

SHROUD radiator

1шт.

2

D135947

SEAL

foam, adhesive back on one side, attaches to upper rear cross tube of shroud

1шт.

3

D136104

BRACKET

radiator retaining

1шт.

4

1977504C1

HITCH DAMPER

BUMPER rubber

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

6a

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

7

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

8

195-545

WASHER,3/4", SAE

flat, 3/4", plated

4шт.

9

129-108

NUT,3/4"-10, G5

4шт.

10

D124563

GUARD

pump, may have two or four mounting holes, used with D133192 chassis, see Figure 09-542 for chassis, not used if front counterweight is used, see Figure 09-538 for front counterweight and counterweight mounting hardware

1шт.

10a

D141011

PROTECTOR

GUARD pump, used with D140807 chassis, see Figure 09-542 for chassis

1шт.

11

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Used with pump guard only Hex, 3/4"-10 x 1 1/4", G5

2-4шт.

12

195-545

WASHER,3/4", SAE

flat, 3/4", plated, used with pump guard only

2-4шт.

13

D135940

BAFFLE

PLATE baffle, lower, if used

1шт.

13a

D135944

SEAL

22-11/16", 576 mm, long, cut from F43117 bulk seal, see below, lower baffle plate, used only on models with front counterweight

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

195-103

WASHER,5/16"

flat, , plated 5/16"

2шт.

17

D135946

BAFFLE

PLATE baffle, upper, not used on models with air conditioning

1шт.

18

D138355

PLATE

baffle, upper, used only on models with air conditioning, if used

1шт.

19

D128489

LINING

SEAL, 19-17/32", 496 mm, long, cut from F43117 bulk seal, see below, upper baffle plate

1шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

22

195-103

WASHER,5/16"

flat, , plated 5/16"

2шт.

23

D141013

PLATE

baffle, lower, if used

1шт.

24

D140971

SHEET

PLATE baffle, lower, used with Ref. 25 seals on models with air conditioning or models with auxiliary hydraulics for optional rear hydraulic attachments, if used

1шт.

25

D140871

BAND

SEAL, 22-1/16", 560 mm, long, adhesive back on one side, used with Ref. 24 plate, if used

2шт.

F43117

SEAL

bulk, 100 ft, 3048 cm, long

1шт.
