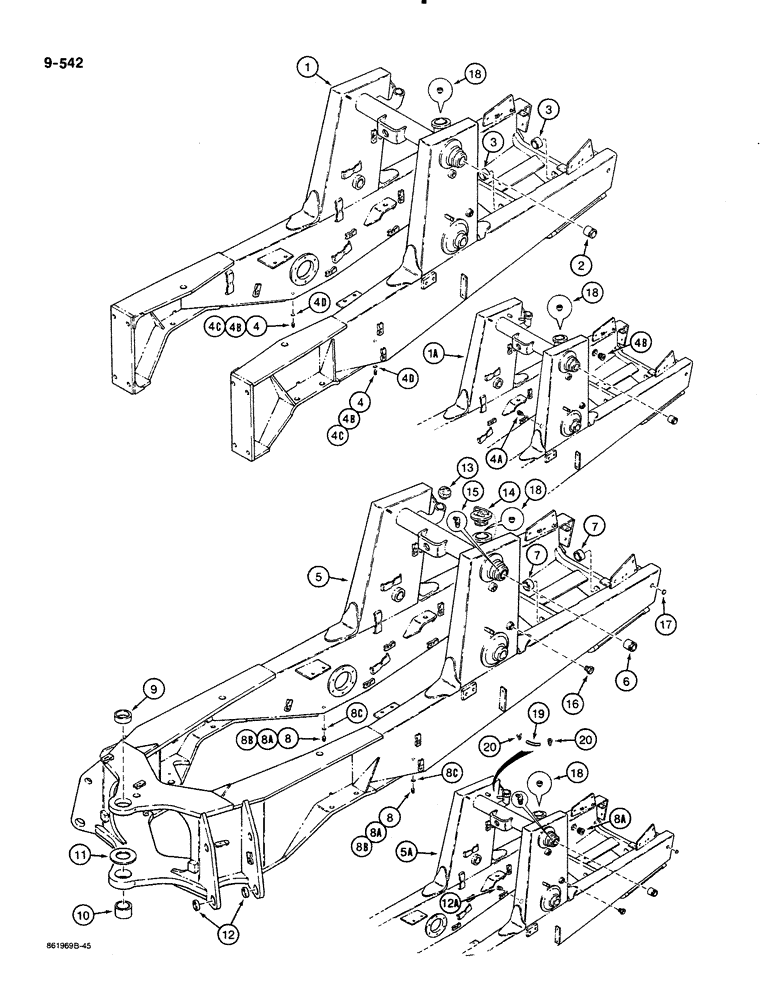

Запчасти Case 580K (09-542) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

D135391

CHASSIS

loader or demountable backhoe models only, no longer available, for service order D140808 chassis, 1, A51390 cap, 1, N8796 breather, and, 2, 41-1020 expansion plugs, Includes: Ref. 2 thru 4D

1шт.

1a

D140808

CHASSIS

loader or demountable backhoe models only, service replacement for D135391 chassis, Includes: Ref. 2 through 4D

1шт.

2

D129061

BUSHING,44.68mm ID x 57.15mm OD x 52.3mm L

loader frame pivot

2шт.

3

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot

2шт.

4

221-15

PLUG,Sq Hd, 3/4"-14

square head, 3/4" NPT, hydraulic oil and diesel fuel drain, D135391 chassis

2шт.

4a

444789

PLUG,Sq Soc, 1/2"-14 NPTF

pipe, 1/2" NPT, used with D140808 chassis

1шт.

4b

D140713

PLUG

square socket head, 1-1/4" NPT, without O-ring, used with D140808 chassis, no longer used, order 218-5161 plug

3шт.

4c

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

hex head, 1-1/4" NPT, with O-ring, used with D140808 chassis, Includes: Ref. 4D

2шт.

4d

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Plug

1шт.

5

D133192

FRAME

CHASSIS, loader with integral backhoe models only, used before tractor P.I.N. No. 17425205, Includes: Ref. 6 thru 12A

1шт.

5a

D140807

CHASSIS

loader with integral backhoe models only, used on tractor P.I.N. No. 17425205 and after, Includes: Ref. 6 through 12A

1шт.

6

D129061

BUSHING,44.68mm ID x 57.15mm OD x 52.3mm L

loader frame pivot

2шт.

7

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot

2шт.

8

221-15

PLUG,Sq Hd, 3/4"-14

square head, 3/4" NPT, hydraulic oil and diesel fuel drain, used with D133192 chassis

2шт.

8a

D140713

PLUG

square socket head, 1-1/4" NPT, without O-ring, used with D140807 chassis, no longer used, order 218-5161 plug

3шт.

8b

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

hex head, 1-1/4" NPT, with O-ring, used with D140807 chassis, Includes: Ref. 8C

2шт.

8c

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Plug

1шт.

9

D135555

BUSHING,70.19mm ID x 90mm OD x 32mm L

upper, backhoe frame, swing tower mounting

1шт.

10

D135556

BUSHING,70.19mm ID x 90mm OD x 38mm L

lower, backhoe frame, swing tower mounting

1шт.

11

D136472

SPACER

3-1/4", 83 mm, ID x 5-5/16", 135 mm, OD x 1/4", 6 mm, thick, bearing, Serial Range: welds-frame

1шт.

12

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

lower, side, backhoe frame, at stabilizer leg mounting

4шт.

12a

444789

PLUG,Sq Soc, 1/2"-14 NPTF

pipe, 1/2" NPT, used with D140807 chassis

1шт.

13

D133285

CAP

diesel fuel reservoir, left-hand, used with D135391 or D133192 chassis

1шт.

13

A51390

CAP

diesel fuel reservoir, left-hand, used with D140807 or D140808 chassis

1шт.

P/N A51390 is a 2-3/4" OD regular cap. You can also use P/N A32120 which is a 2-3/4" OD locking cap or you can order P/N A46523 kit, extension tube w/cap

1шт.

14

D93981

FILLER CAP

CAP hydraulic oil reservoir, right-hand

1шт.

15

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING, 45 degree, special short, 1/8" NPT, loader frame pivot

2шт.

16

D63875

PLUG

SIGHT GAUGE oil level

1шт.

17

41-1020

PLUG,Cup, 1 1/4"

EXPANSION PLUG cup, 1-1/4"

2шт.

18

N8796

PLUG

BREATHER vent, hydraulic oil reservoir

1шт.

19

D140609

HOSE

5/8" ID x 15/16" OD x 4-9/16" long, vent, used with D140807 or D1408089 chassis

1шт.

20

D140872

COLLAR CLAMP

CLAMP wire form, vent hose

2шт.
