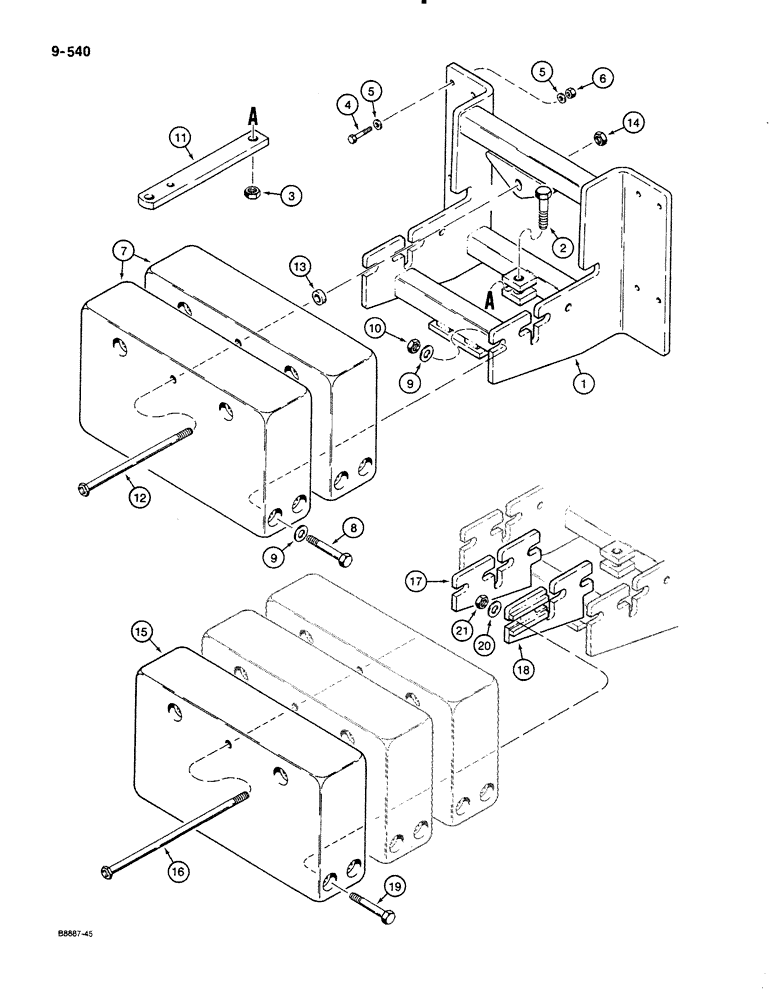

Запчасти Case 580K (09-540) - REAR COUNTERWEIGHT AND DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

D136658

FRAME

rear counterweight

1шт.

2

26-1880

BOLT,Hex, 1-1/8" - 7 x 5", Gr 8

hex head, 1-1/8" - 7 NC x 5", grade 8

1шт.

3

131-189

LOCK NUT,1 1/8"-12, GB

NUT hex, self-locking, 1-1/8" - 7 NC

1шт.

4

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

8шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened

16шт.

6

129-138

NUT,3/4"-10, G8

8шт.

7

D31204

BALANCER

COUNTERWEIGHT rear, each 1425 lbs, 646 kg

2шт.

8

113-930

BOLT,Hex, 1" - 8 x 7", Gr 5

8шт.

9

195-553

WASHER,1", SAE

flat, 1", plated

16шт.

10

129-110

NUT,1"-8, G5

8шт.

11

D93293

DRAWBAR, SWINGING

DRAWBAR tractor

1шт.

12

D139275

BOLT

special

1шт.

13

H62406

SPACER

counterweight

1шт.

14

131-199

LOCK NUT,1"-8, GC

NUT hex, self-locking, 1" - 8 NC

1шт.

15

D31204

BALANCER

COUNTERWEIGHT rear, 1425 lbs, 646 kg, used with 2800 lbs rear counterweight, if used, special parts used to mount additional 1400 pound rear counterweight

1шт.

16

D140548

BOLT

BOLT special parts used to mount additional 1400 pound rear counterweight

1шт.

17

D93344

PLATE

BRACKET left hand, additional counterweight adapter, special parts used to mount additional 1400 pound rear counterweight

1шт.

18

D93345

PLATE

BRACKET right hand, additional counterweight adapter, special parts used to mount additional 1400 pound rear counterweight

1шт.

19

113-974

BOLT,Hex, 1" - 8 x 6-3/4", Gr 5

Special parts used to mount additional 1400 pound rear counterweight Hex, 1"-8 x 6 3/4", G5

4шт.

20

195-553

WASHER,1", SAE

flat, 1", plated, special parts used to mount additional 1400 pound rear counterweight

4шт.

21

129-110

NUT,1"-8, G5

Special parts used to mount additional 1400 pound rear counterweight 1"-8, G5

4шт.
