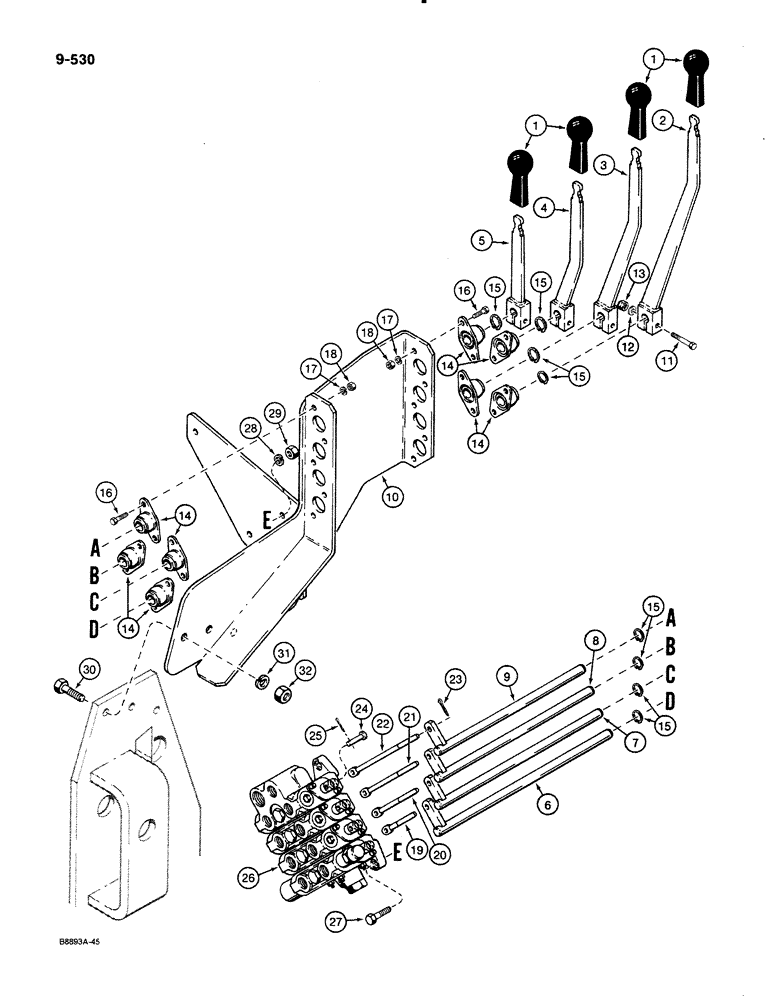

Запчасти Case 580K (09-530) - THREE-POINT HITCH CONTROLS (09) - CHASSIS/ATTACHMENTS

1

D135387

GRIP

KNOB control lever

4шт.

2

D141034

HANDLED SHAFT

CONTROL LEVER lift

1шт.

3

D141036

HANDLED SHAFT

CONTROL LEVER pitch

1шт.

4

D141038

HANDLED SHAFT

CONTROL LEVER tilt

1шт.

5

D137861

HANDLED SHAFT

CONTROL LEVER implement

1шт.

6

D141025

SHAFT

lift control, Serial Range: lever-rod

1шт.

7

D141027

SHAFT

pitch control, Serial Range: lever-rod

1шт.

8

D141029

SHAFT

tilt control, Serial Range: lever-rod

1шт.

9

D141031

SHAFT

implement control, Serial Range: lever-rod

1шт.

10

D141043

PLATE ASSY.

BRACKET valve and control lever mounting

1шт.

11

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

12

195-521

WASHER,5/16", SAE

flat, 5/16", plated

4шт.

13

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self-locking, 5/16" - 18 NC

4шт.

14

L15401

BEARING,15.89mm ID

pivot

8шт.

15

N9959

SNAP RING,#62, Ext

Ring, Snap, , brg #62, Ext

8шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

10шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

18

9635082

NUT,5/16" - 18, Gr 5

10шт.

19

D136356

LINK

ROD lift control, Serial Range: shaft-valve

1шт.

20

D136357

LINK

ROD pitch control, Serial Range: shaft-valve

1шт.

21

D136358

LINK

ROD tilt control, Serial Range: shaft-valve

1шт.

22

D136359

LINK

ROD implement control, Serial Range: shaft-valve

1шт.

23

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , Rod to shaft 3/32" x 3/4"

4шт.

24

141-2

CLEVIS PIN,1/4" x .770"

1/4", rod to valve

4шт.

25

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

4шт.

26

D141297

VALVE

CONTROL VALVE ASSEMBLY three-point hitch, four spool, see Figure 08-396

1шт.

27

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Valve mounting Hex, 3/8"-16 x 1 1/2", G5

3шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

30

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Valve mounting bracket to three-point hitch frame Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

hex, 1/2" - 18 NC, plated

3шт.
