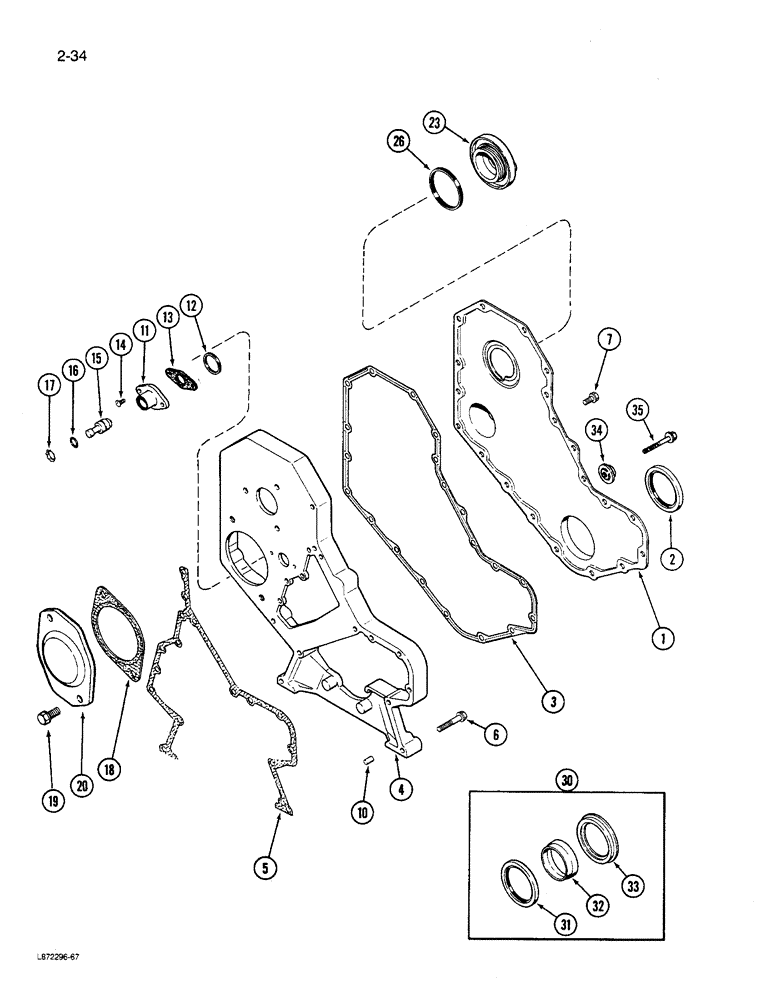

Запчасти Case 580K (02-034) - FRONT GEAR COVER, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order P/N J904353, see Ref. 30

1шт.

3

J914385

GASKET,1.02mm Thk

front cover, Replaces: P/N J910500

1шт.

4

J910411

HOUSING

timing gear

1шт.

5

J914384

GASKET

gear housing, Replaces: P/N J907836

1шт.

6

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

hex, 8 mm-1.25 x 50 mm

11шт.

7

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

dowel, location, 16 mm

2шт.

11

J905933

HOUSING

timing pin, Replaces: P/N J903923

1шт.

12

J914092

O-RING

pin housing, Replaces: P/N J906693

1шт.

13

J905595

GASKET

pin housing, used with P/N J903923 housing

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

16

J913994

O-RING

sealing, Replaces: P/N J903927

1шт.

17

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

18

J913192

GASKET

cover plate, Replaces: P/N A77441

1шт.

19

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT hex flange, 12 mm-1.75 x 25 mm

2шт.

20

J909918

PLATE

cover, access

1шт.

23

J903463

PLUG,M63 x 5

tachometer drive hole

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover

1шт.

30

J904353

GASKET KIT

KIT seal, oil, crankshaft front, Includes: Ref. 31 thru 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

34

J912772

RETAINER

bolt

1шт.

35

J901446

FLANGE BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

BOLT hex flange, 8 mm-1.25 x 60 mm

1шт.
