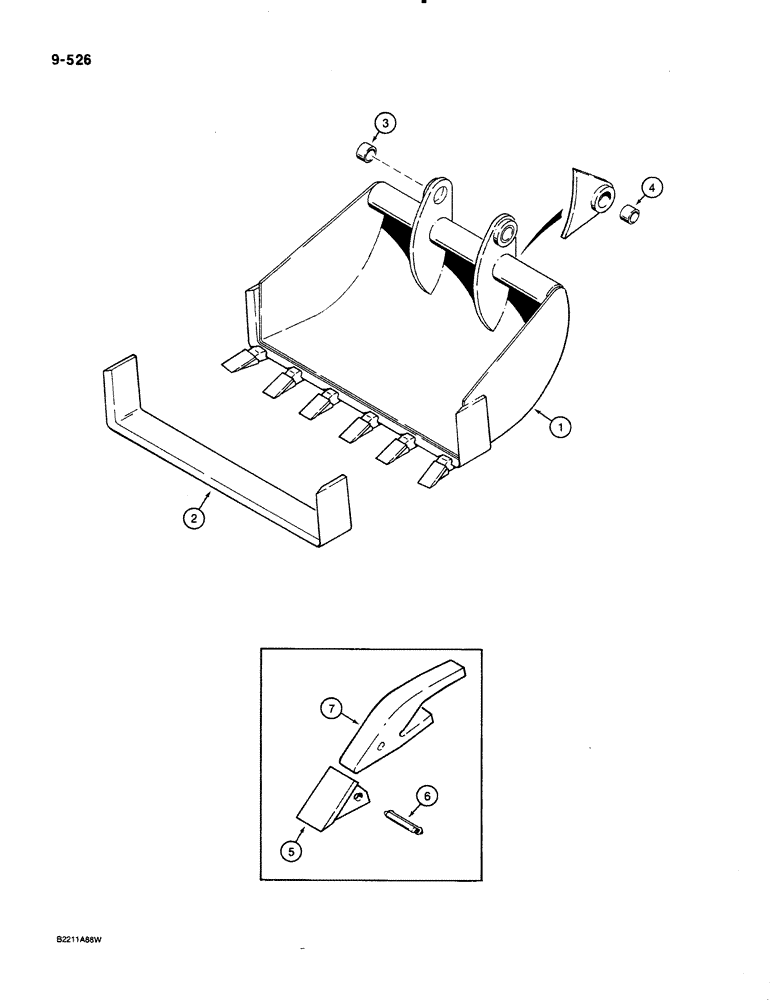

Запчасти Case 580K (09-526) - BACKHOE BUCKET, COMBINATION BELLHOLE AND GRAVEYARD BUCKET (09) - CHASSIS/ATTACHMENTS

1

D140576

BUCKET

ASSEMBLY 36 inch, 914 mm, with 6 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2-7

1шт.

2

NLS

NO LONGER SERVICED

EDGE cutting, bucket

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper, upper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at bucket link pin hole, lower

2шт.

D41659

TOOTH

ASSEMBLY bucket, Includes: Ref. 5-7

6шт.

5

D39093

TOOTH

POINT tooth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN flex, point

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth

1шт.
