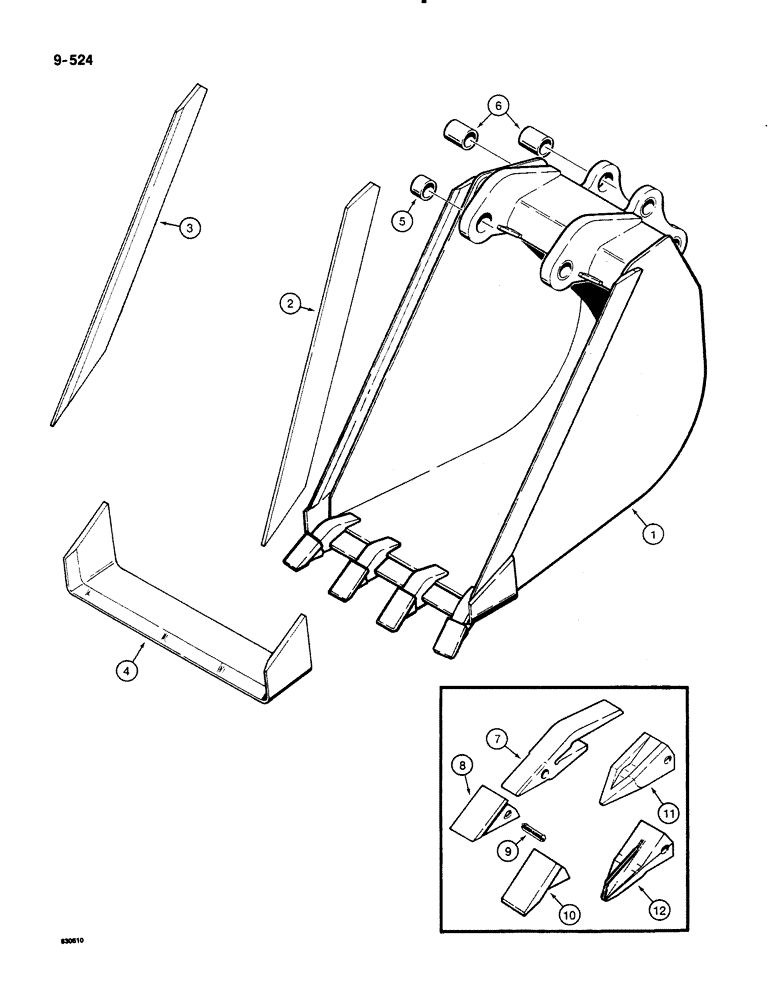

Запчасти Case 580K (09-524) - BACKHOE BUCKET, 24 INCH (610 MM) HIGH CAPACITY TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS

1

L107618

BUCKET

ASSEMBLY 24 inch, 610 mm, machinery item, order from the Machinery Price List, Includes: Ref. 2-6

1шт.

2

L70084

EDGE, CUTTING

CUTTING EDGE bucket, right hand side

1шт.

3

L70083

EDGE, CUTTING

CUTTING EDGE bucket, left hand side

1шт.

4

D41673

EDGE, CUTTING

CUTTING EDGE bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at bucket links

4шт.

L43266

TOOTH

ASSEMBLY high capacity bucket teeth included with bucket, Includes: Ref. 7-9

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth, bucket teeth included with bucket

1шт.

8

D39093

TOOTH

POINT tooth, bucket teeth included with bucket

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN point, bucket teeth included with bucket

1шт.

10

D44193

TOOTH

POINT tooth, heavy duty, flat end, service option, bucket teeth included with bucket

1шт.

11

D80119

TOOTH

POINT tooth, heavy duty, pointed end, service option, bucket teeth included with bucket

1шт.

12

D79100

TOOTH

POINT tooth, heavy duty, star point, service option, bucket teeth included with bucket

1шт.
