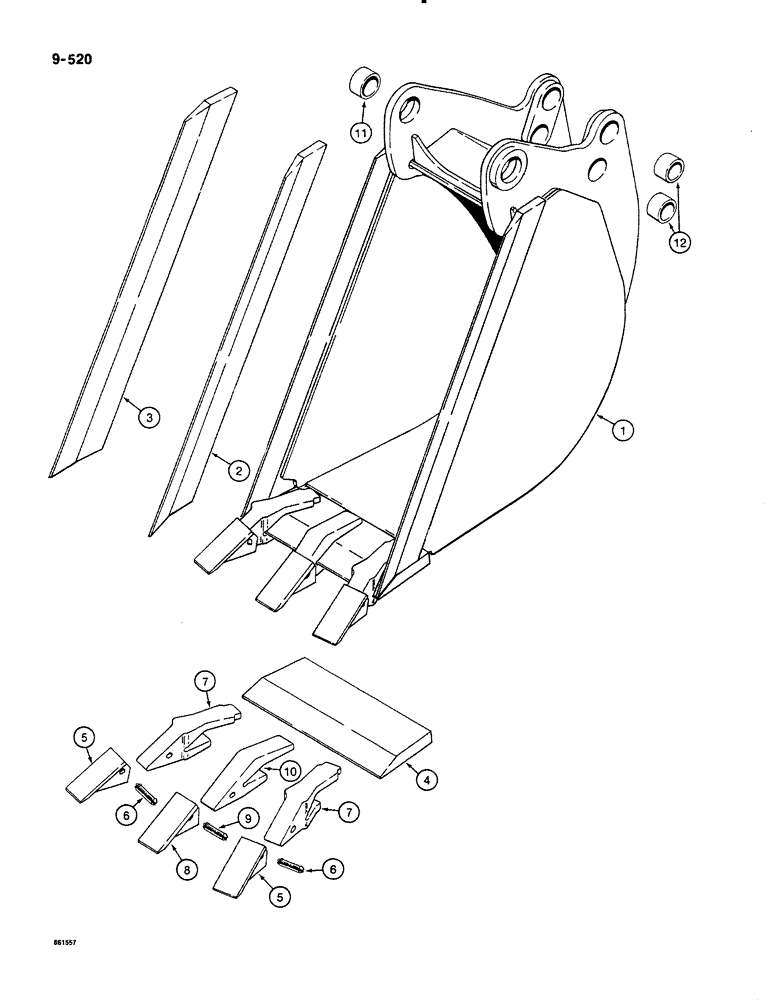

Запчасти Case 580K (09-520) - BACKHOE BUCKETS, INCLUDES BUCKET TEETH, TRENCHING BUCKETS - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D137891
BUCKET
ASSEMBLY 16 inch, 406 mm, with 3 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2thru 12
1шт.
2
D134982
EDGE, CUTTING
CUTTING EDGE bucket, right hand side
1шт.
3
D134983
EDGE, CUTTING
CUTTING EDGE bucket, left hand side
1шт.
4
D135512
EDGE, CUTTING
CUTTING EDGE center, 16 inch, 406 mm bucket
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy, outer corners, Includes Ref 5 thru 7
2шт.
5
D51750
BUCKET TOOTH POINT
Outer corners
1шт.
6
D134686
SPLIT PIN/SAFETY PIN
PIN flex, outer point and shank
1шт.
7
D138157
SHANK
tooth, outer corners
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center, Includes Ref 8 thru 10
1шт.
8
D51750
BUCKET TOOTH POINT
POINT tooth, center
1шт.
9
D39094
BUCKET TOOTH KEY
PIN flex, center point and shank
1шт.
10
D48212
SHANK
tooth, center
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1-3/4" ID x 2-1/4" O.D. x 1-1/4" long
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
1-1/2" ID x 1-7/8" O.D. x 1-1/4" long
4шт.
1
D138035
BUCKET
ASSEMBLY 18 inch, 457 mm, with 3 teeth, not shown, machinery item, order from the Machinery Price List, Includes: Ref. 2 thru 12
1шт.
2
D134982
EDGE, CUTTING
CUTTING EDGE bucket, right hand side
1шт.
3
D134983
EDGE, CUTTING
CUTTING EDGE bucket, left hand side
1шт.
4
D135513
EDGE, CUTTING
CUTTING EDGE center, 18 inch, 457 mm bucket
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy, outer corners, Includes Ref 5 thru 7
2шт.
5
D39093
TOOTH
POINT tooth, outer corners
1шт.
5
D51750
BUCKET TOOTH POINT
PIN flex, outer point and shank
1шт.
7
D138157
SHANK
tooth, outer corners
1шт.
7
D138157
SHANK
tooth, outer corners
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center, Includes Ref 8 thru 10
1шт.
8
D51750
BUCKET TOOTH POINT
POINT tooth, center
1шт.
9
D39094
BUCKET TOOTH KEY
PIN flex, center point and shank
1шт.
10
D48212
SHANK
tooth, center
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1-3/4" ID x 2-1/4" O.D. x 1-1/4" long
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
1-1/2" ID x 1-7/8" O.D. x 1-1/4" long
4шт.
1
D137750
ASSEMBLY 24 inch, 610 mm, with 5 teeth, not shown, machinery item, order from the Machinery Price List, Includes: Ref. 2 thru 12
1шт.
2
D134982
EDGE, CUTTING
CUTTING EDGE bucket, right hand side
1шт.
3
D134983
EDGE, CUTTING
CUTTING EDGE bucket, left hand side
1шт.
4
D135514
EDGE, CUTTING
CUTTING EDGE center, 24 inch, 610 mm bucket
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy, outer corners, Includes Ref 5 thru 7
2шт.
5
D51750
BUCKET TOOTH POINT
POINT tooth, outer corners
1шт.
6
D134686
SPLIT PIN/SAFETY PIN
PIN flex, outer point and shank
1шт.
7
D138157
SHANK
tooth, outer corners
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center, Includes Ref 8 thru 10
3шт.
8
D51750
BUCKET TOOTH POINT
POINT tooth, center
1шт.
9
D39094
BUCKET TOOTH KEY
PIN flex, center point and shank
1шт.
10
D48212
SHANK
tooth, center
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1-3/4" ID x 2-1/4" O.D. x 1-1/4" long
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
1-1/2" ID x 1-7/8" O.D. x 1-1/4" long
4шт.
1
D137892
BUCKET
ASSEMBLY 30 inch, 762 mm, with 5 teeth, not shown, machinery item, order from the Machinery Price List, Includes: Ref. 2 thru 12
1шт.
2
D134982
EDGE, CUTTING
CUTTING EDGE bucket, right hand side
1шт.
3
D134983
EDGE, CUTTING
CUTTING EDGE bucket, left hand side
1шт.
4
D135515
EDGE, CUTTING
CUTTING EDGE center, 30 inch, 762 mm bucket
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy, outer corners, Includes Ref 5 thru 7
2шт.
5
D51750
BUCKET TOOTH POINT
POINTtooth, outer corners
1шт.
6
D134686
SPLIT PIN/SAFETY PIN
PIN flex, outer point and shank
1шт.
7
D138157
SHANK
tooth, outer corners
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center, Includes Ref 8 thru 10
3шт.
8
D51750
BUCKET TOOTH POINT
POINT tooth, center
1шт.
9
D39094
BUCKET TOOTH KEY
PIN flex, center point and shank
1шт.
10
D48212
SHANK
tooth, center
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1-3/4" ID x 2-1/4" O.D. x 1-1/4" long
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
1-1/2" ID x 1-7/8" O.D. x 1-1/4" long
4шт.
1
D137893
BUCKET
ASSEMBLY 36 inch, 914 mm, with 7 teeth, not shown, machinery item, order from the Machinery Price List, Includes: Ref. 2 thru 12
1шт.
2
D134982
EDGE, CUTTING
CUTTING EDGE bucket, right hand side
1шт.
3
D134983
EDGE, CUTTING
CUTTING EDGE bucket, left hand side
1шт.
4
D135516
EDGE, CUTTING
CUTTING EDGE center, 36 inch, 914 mm bucket
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy, outer corners, Includes Ref 5 thru 7
2шт.
5
D51750
BUCKET TOOTH POINT
POINT tooth, outer corners
1шт.
6
D134686
SPLIT PIN/SAFETY PIN
PIN flex, outer point and shank
1шт.
7
D138157
SHANK
tooth, outer corners
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center, Includes Ref 8 thru 10
5шт.
8
D51750
BUCKET TOOTH POINT
POINT tooth, center
1шт.
9
D39094
BUCKET TOOTH KEY
PIN flex, center point and shank
1шт.
10
D48212
SHANK
tooth, center
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1-3/4" ID x 2-1/4" O.D. x 1-1/4" long
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
1-1/2" ID x 1-7/8" O.D. x 1-1/4" long
4шт.
Выбрано товаров: 71
