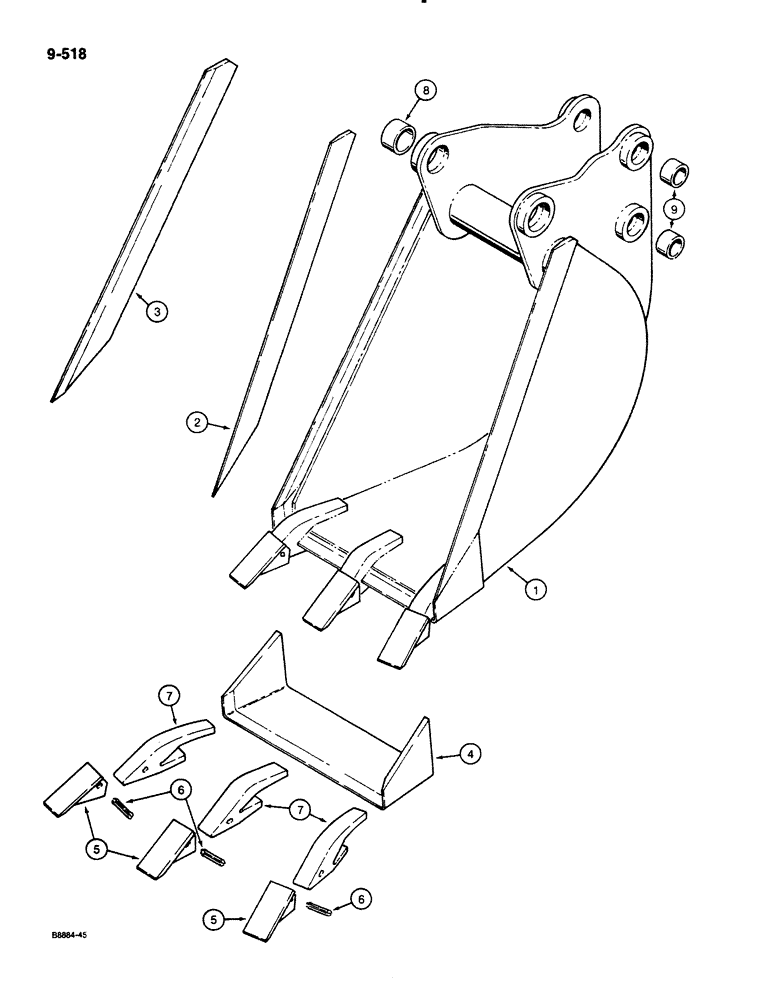

Запчасти Case 580K (09-518) - BACKHOE BUCKETS, INCLUDES BUCKET TEETH, TRENCHING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

D139795

BUCKET

ASSEMBLY, 18 inch, 457 mm,, with 3 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 through 9

1шт.

2

D21606

EDGE, CUTTING

CUTTING EDGE bucket, right-hand side

1шт.

3

D21605

EDGE, CUTTING

CUTTING EDGE bucket, left-hand side

1шт.

4

D37642

EDGE, CUTTING

CUTTING EDGE center, 18 inch, 457 mm, bucket

1шт.

D41659

TOOTH

ASSEMBLY trenching bucket, Includes: Ref. 5 thru 7

4шт.

5

D39093

TOOTH

POINT tooth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN flex, point

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" O.D. x 1-1/4" long

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" O.D. x 1-1/4" long

4шт.

1

D139796

BUCKET

ASSEMBLY, 24 inch, 610 mm,, with 5 teeth, not shown, machinery item, order from the Machinery Price List, Includes: Ref. 2 through 9

1шт.

2

D21606

EDGE, CUTTING

CUTTING EDGE bucket, right hand side

1шт.

3

D21605

EDGE, CUTTING

CUTTING EDGE bucket, left hand side

1шт.

4

D37507

EDGE

CUTTING EDGE center, 24 inch, 610 mm, bucket

1шт.

D41659

TOOTH

ASSEMBLY trenching bucket, Includes: Ref. 5 thru 7

4-5шт.

5

D39093

TOOTH

POINT tooth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN flex, point

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" O.D. x 1-1/4" long

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" O.D. x 1-1/4" long

4шт.
