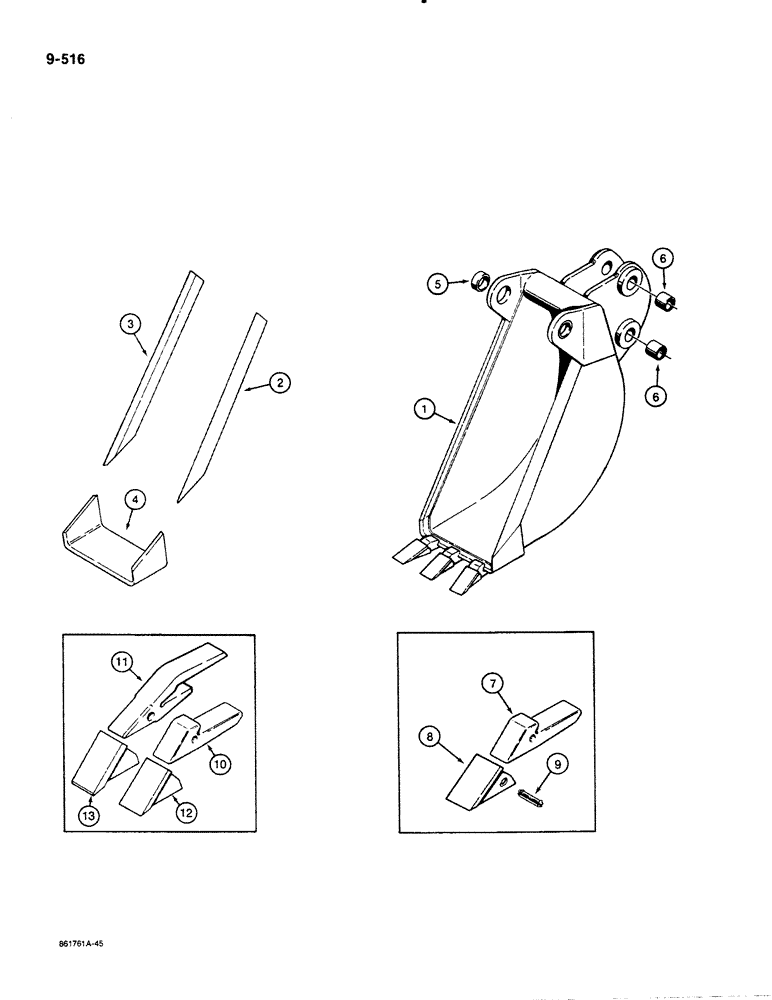

Запчасти Case 580K (09-516) - BACKHOE BUCKET, TRENCHING BUCKET, CRIMPED-ON BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

1

D52642

BUCKET

ASSEMBLY trenching, 12 inch, 305 mm, machinery item, order from the Machinery Price List, Includes: Ref. 2 thru 9

1шт.

2

D29424

EDGE, CUTTING

CUTTING EDGE trenching bucket, right-hand side

1шт.

3

D29423

EDGE, CUTTING

CUTTING EDGE trenching bucket, left-hand side

1шт.

4

D37464

EDGE, CUTTING

CUTTING EDGE trenching bucket, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

trenching bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

trenching bucket, at bucket links

4шт.

D41659

TOOTH

ASSEMBLY trenching bucket, pinned-on, Includes: Ref. 7 thru 9

3шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth, trenching bucket

1шт.

8

D39093

TOOTH

POINT tooth, trenching bucket

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, point, trenching bucket

1шт.

10

D26368

SUPPORT

SHANK tooth, original equipment, if used, crimped-on bucket teeth

1шт.

11

D58499

SUPPORT

SHANK tooth, service option, if used, crimped-on bucket teeth

1шт.

12

D27748

TOOTH

POINT tooth, original equipment, if used, crimped-on bucket teeth

1шт.

13

D36720

TOOTH

POINT tooth, heavy duty service option, if used, crimped-on bucket teeth

1шт.
