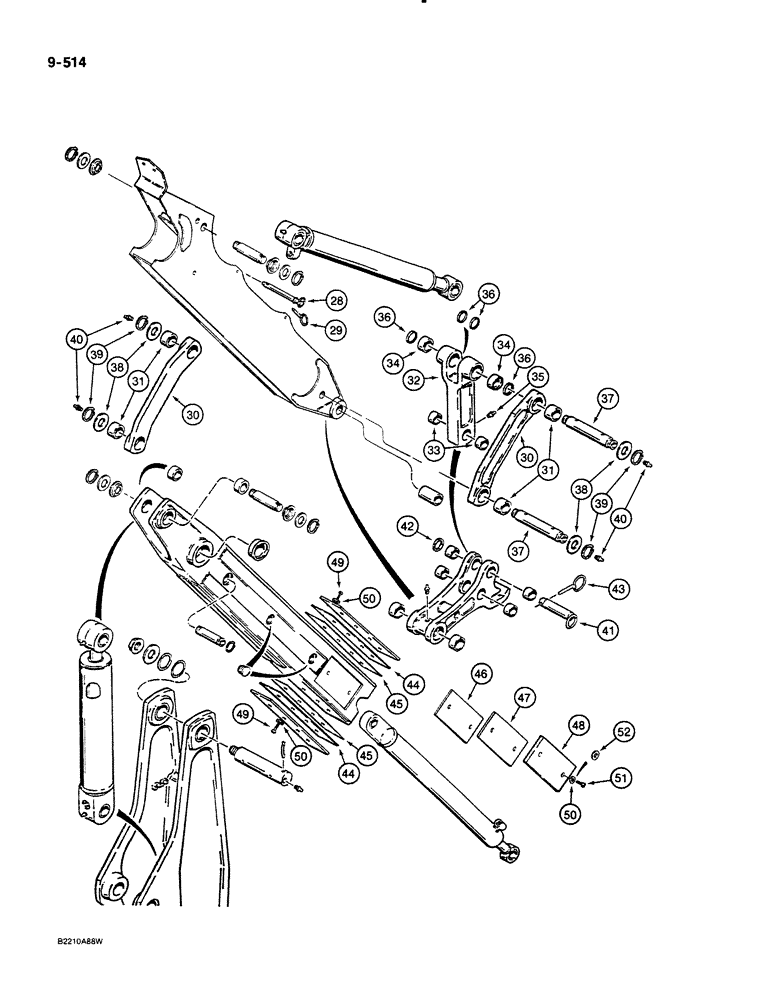

Запчасти Case 580K (09-514) - EXTENDABLE DIPPER, ONE-PIECE OUTER MEMBER (09) - CHASSIS/ATTACHMENTS

28

D140247

LOCK PIN,25.4mm OD x 232.6mm L

PIN, LOCK, Used at dipper extension cylinder closed end when transporting only, Used with Ref. 29 lock pin

1шт.

29

A33509

PIN,11.18mm OD

lock

1шт.

30

D141468

PITMAN

LINK bucket guide, with 1" long bushing, Includes: Ref. 31

2шт.

31

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

2" (50 mm) ID x 2-3/8" (60 mm) OD x 1" (25 mm) long

2шт.

32

D140007

PITMAN

LINK bucket dump, with two bushings at forked end, Includes: Ref. 33 and 34

1шт.

33

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8", 28 mm, long

2шт.

34

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

2-1/8", 54 mm, long

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

36

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease

4шт.

37

D141142

PIN,50mm OD x 306mm L

12-3/64", (306 mm) long, Bucket cylinder rod end to links and, Serial Range: links-dipper

2шт.

38

495-81282

WASHER,2 1/16" x 3" x .109"

flat, 2-1/16" ID x 3" O.D. x 1/8" thick

4шт.

39

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

5шт.

41

D135692

AXLE PIN

PIN dump link to bucket coupler

1шт.

42

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

flat, 1-3/4" bolt size, 1-13/16" ID x 2-1/2" O.D. x 1/8" thick

1шт.

43

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN lock

1шт.

44

D140874

BLOCK

SHIM, 1/16", 1.6 mm, thick, wear plate

1шт.

Part of Service Kit P/N D103366

1шт.

45

D140873

BLOCK

SHIM, 1/32", .8 mm, thick, wear plate

1шт.

Part of Service Kit P/N D103366

1шт.

46

D140885

BLOCK

SHIM, 1/32", .8 mm, thick, wear plate

1шт.

Part of Service Kit P/N D103366

1шт.

47

D140886

SHIM,116mm OD x 1.6mm Thk

SHIM, 1/16", 1.6 mm, thick, wear plate

1шт.

Part of Service Kit P/N D103366

1шт.

48

D141998

LARGE PLATE

WEAR PLATE plastic, outer

2шт.

Part of Service Kit P/N D103366

1шт.

49

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

8шт.

Part of Service Kit P/N D103366

1шт.

50

D143167

WASHER

special

12шт.

Part of Service Kit P/N D103366

1шт.

51

D143961

FLANGE BOLT,Hex, 3/8"-16 x 1/2", Serr

BOLT hex flange head, self-locking, 3/8" - 16 NC x 1/2", plated

4шт.

Part of Service Kit P/N D103366

1шт.

52

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, 3/8 inch

4шт.

D103366

KEY

KIT service for D139848 and D143299 extendahoe inner dipper assemblies, Includes: Ref. 44, 45, 46, 47, 48, 49, 50 and 51 in this figure and parts in Figure 09-512, plus an instruction sheet

1шт.
