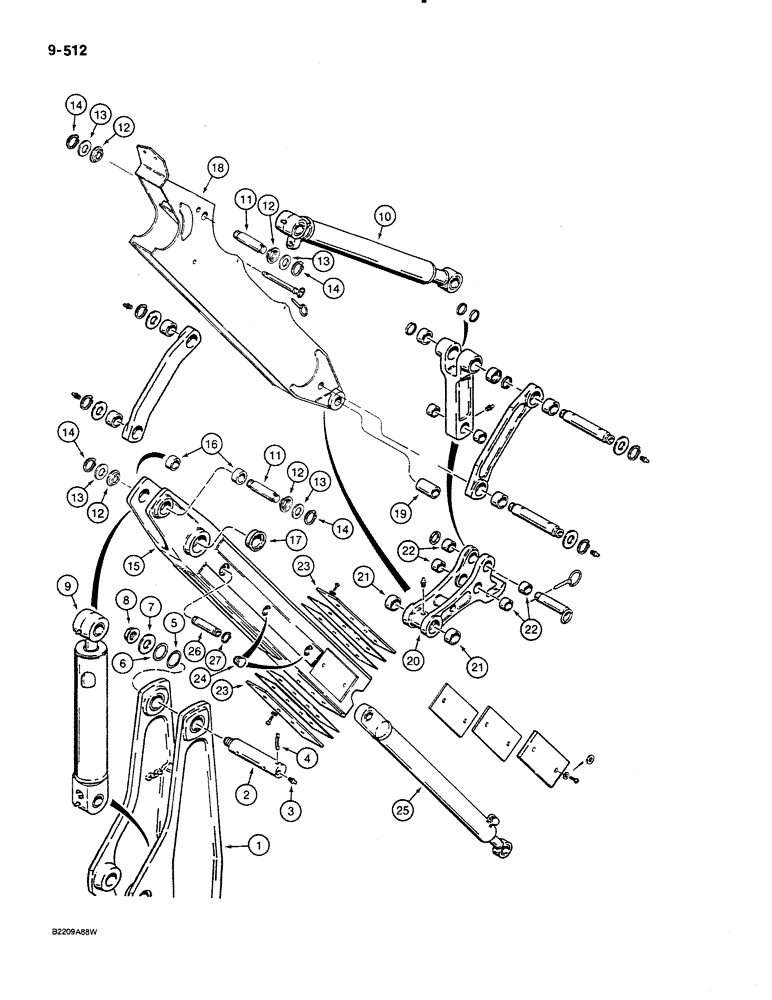

Запчасти Case 580K (09-512) - EXTENDABLE DIPPER, ONE-PIECE OUTER MEMBER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM backhoe, see Figure 09-488

1шт.

2

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT, both ends of Ref. 2 pin

2шт.

4

135-823

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

PIN GROOVED, , Center groove 1/2" x 3 1/4", Type E, Hardened

1шт.

5

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), (2-27/32" ID x 3-1/2" OD x 1/16" thk), Boom to dipper 1.57mm Thk

2шт.

6

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD) (2-27/32" ID x 3-1/2" OD x 1/8" thk) 3.05mm Thk

1шт.

7

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

flat, hardened, special

1шт.

8

D120610

NUT

hex, 1-3/4" - 12 NF, special

1шт.

9

REF

INSTRUCTION

CYLINDER dipper, for correct assembly and components, see Figures 08-426 or 08-428

1шт.

10

G110597

CYLINDER

bucket, see Figure 08-430

1шт.

10

235916A1R

REMAN-HYD CYLINDER

Reman New PN G110597

1шт.

10

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

11

D141666

PIN,50mm OD x 199mm L

dipper and bucket, Serial Range: cylinder-dippers

2шт.

Part of Service Kit P/N D103366

1шт.

12

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16" ID x 3" O.D. x 1/8" thick

4шт.

Part of Service Kit P/N D103366

1шт.

13

495-81279

WASHER,1.81" ID x 2.75" OD x 0.13" Thk

flat, 1-13/16" ID x 2-3/4" O.D. x 1/8" thick, plated

4шт.

Part of Service Kit P/N D103366

1шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

Part of Service Kit P/N D103366

1шт.

D140889

HYDRAULIC VALVE

DIPPER ASSEMBLY extension, inner, if used, Includes: Ref. 15 thru 17

1шт.

Part of Service Kit P/N D103366

1шт.

15

NSS

NOT SOLD SEPARAT

DIPPER inner, with two tapped holes for shims on lower member of inner extension

1шт.

16

D141389

BUSHING

2", 50 mm, ID x 1-11/32", 34 mm, long, without slots for groove pin, dipper cylinder rod end pivot

1шт.

17

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

2-3/4", 70 mm, ID x 1-7/16", 36 mm, long, boom to dipper pivot

2шт.

D142136

HOUSING

DIPPER HOUSING ASSEMBLY backhoe, outer, if used, Includes: Ref. 18 thru 22

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING dipper, outer

1шт.

19

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

1-3/4", 45 mm, ID x 3-11/16", 94 mm, long, bucket coupler pivot

2шт.

D139084

CLIP, SPRING

COUPLER ASSEMBLY bucket, Includes: Ref. 20 thru 22

1шт.

20

NSS

NOT SOLD SEPARAT

COUPLER backhoe bucket

1шт.

21

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

1-3/16", 30 mm, long, special, at dipper

2шт.

22

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8", 28 mm, long, at bucket link

4шт.

23

D141998

LARGE PLATE

WEAR PLATE plastic

4шт.

Part of Service Kit P/N D103366

1шт.

24

D133865

PLUG

plastic

4шт.

25

REF

INSTRUCTION

CYLINDER dipper extension, see Figure 08-432

1шт.

26

D129892

PIN

dipper extension cylinder closed end

1шт.

27

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining

2шт.

D103366

KEY

KIT service for D139848 and D143299 extendahoe inner dipper assembly, Includes: Ref. 11, 12, 13, 14, 23 and P/N D140889 in this figure and parts in Figure 09-514, plus an instruction sheet

1шт.
