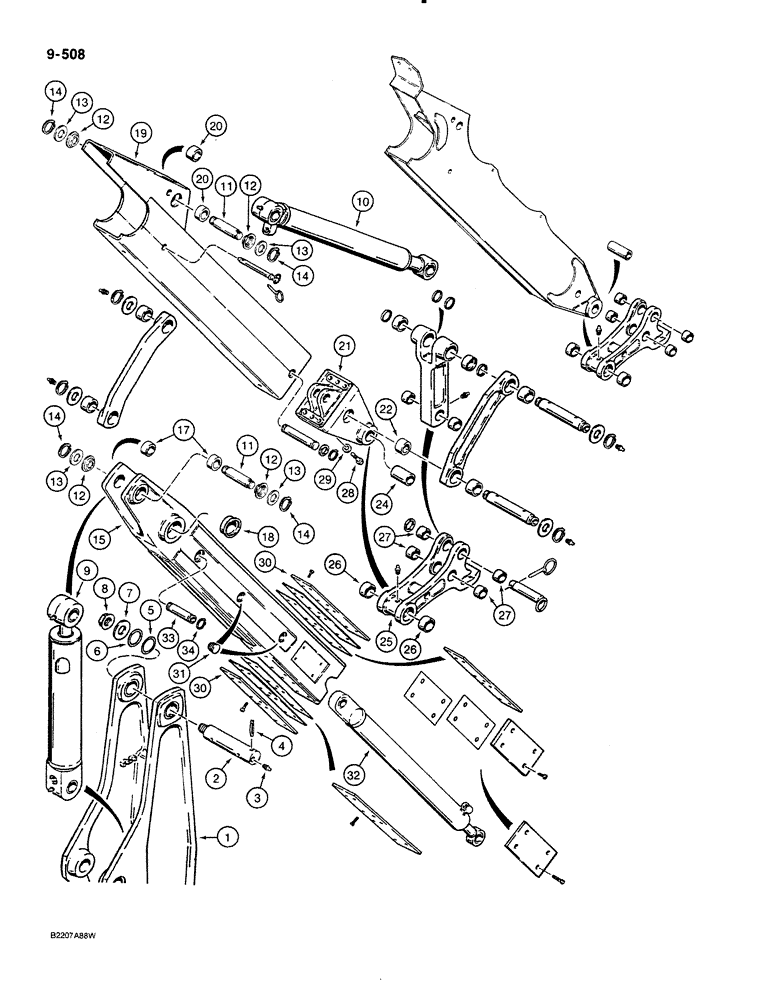

Запчасти Case 580K (09-508) - EXTENDABLE DIPPER, TWO-PIECE OUTER MEMBER, TRACTOR P.I.N. JJG0012415 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM backhoe, see Figure 09-488

1шт.

2

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT, both ends of Ref. 2 pin

2шт.

4

135-823

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

PIN GROOVED, , Center groove 1/2" x 3 1/4", Type E, Hardened

1шт.

5

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), (2-27/32" ID x 3-1/2" OD x 1/16" thk), Boom to dipper 1.57mm Thk

2шт.

6

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD) (2-27/32" ID x 3-1/2" OD x 1/8" thk) 3.05mm Thk

1шт.

7

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

flat, hardened, special

1шт.

8

D120610

NUT

hex, 1-3/4" - 12 NF, special

1шт.

9

REF

INSTRUCTION

CYLINDER dipper, for correct assembly and components, see Figure 08-426 or 08-428

1шт.

10

G110597

CYLINDER

bucket, see Figure 08-430

1шт.

10

235916A1R

REMAN-HYD CYLINDER

Reman New PN G110597

1шт.

10

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

11

D141666

PIN,50mm OD x 199mm L

dipper and bucket, Serial Range: cylinder-dippers

2шт.

12

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16" ID x 3" O.D. x 1/8" thick

4шт.

Either use two of Ref. 12 or two of Ref. 13 with P/N D141666 pin.

1шт.

13

495-81279

WASHER,1.81" ID x 2.75" OD x 0.13" Thk

flat, 1-13/16" ID x 2-3/4" O.D. x 1/8" thick, plated

4шт.

Either use two of Ref. 12 or two of Ref. 13 with P/N D141666 pin.

1шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

D143299

DIPPER ASSEMBLY extension, inner, used in production, for service order D103366 kit in Figure 09-512, Includes: Ref. 15 thru 18

1шт.

15

NSS

NOT SOLD SEPARAT

DIPPER inner, with four tapped holes for shims on lower member of inner extension

1шт.

17

D141389

BUSHING

2", 50 mm ID x 1-11/32", 34 mm long, without slots for groove pin, dipper cylinder rod end pivot

1шт.

18

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

2-3/4", 70 mm ID x 1-7/16", 36 mm long, boom to dipper pivot

2шт.

D143336

DIPPER HOUSING ASSEMBLY backhoe, outer, used in production, for service order D141890 outer dipper in Figure 09-504, if used, Includes: Ref. 19 thru 20A

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING dipper, outer

1шт.

20

D136846

BUSHING

2", 50 mm ID x 1-11/32", 34 mm long, bucket cylinder closed end pivot, D129900 or D141890 dipper housing

1-2шт.

20a

D141389

BUSHING

2", 50 mm ID x 1-11/32", 34 mm long, without slots for groove pin, bucket cylinder closed end pivot

2шт.

D143181

END CAP COUPLER ASSEMBLY dipper, used in production, for service order D141893 end cap coupler in Figure 09-504, if used, Includes: Ref. 21 thru 27

1шт.

21

D141892

HOUSING

END CAP D141893 end cap coupler assembly, dipper

1шт.

For weld-on repair end cap order P/N D103585, refer to Service Bulletin NLB SB 012 89

1шт.

22

D141249

BUSHING,50.19mm ID x 70mm OD x 25.5mm L

2" (50 mm) ID x 1" (25 mm) long, guide link pivot

2шт.

24

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

1-3/4", 45 mm ID x 3-11/16", 94 mm long, bucket coupler pivot

2шт.

D139084

CLIP, SPRING

COUPLER ASSEMBLY bucket, Includes: Ref. 25 thru 27

1шт.

25

NSS

NOT SOLD SEPARAT

COUPLER backhoe bucket

1шт.

26

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

1-3/16", 30 mm long, special, at dipper

2шт.

27

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8", 28 mm long, at bucket link

4шт.

28

166-151

12 PT SCREW,Flg, 7/8" - 9 x 2", Gr 8

BOLT Ferry head, 7/8" - 9 NC x 2", grade 8, if used

6шт.

29

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

flat, 7/8", hardened, if used

6шт.

30

D138343

PLATE

WEAR PLATE plastic

2шт.

31

D133865

PLUG

plastic

4шт.

32

REF

INSTRUCTION

CYLINDER dipper extension, see Figure 08-432

1шт.

33

D129892

PIN

dipper extension cylinder closed end

1шт.

34

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining

2шт.
