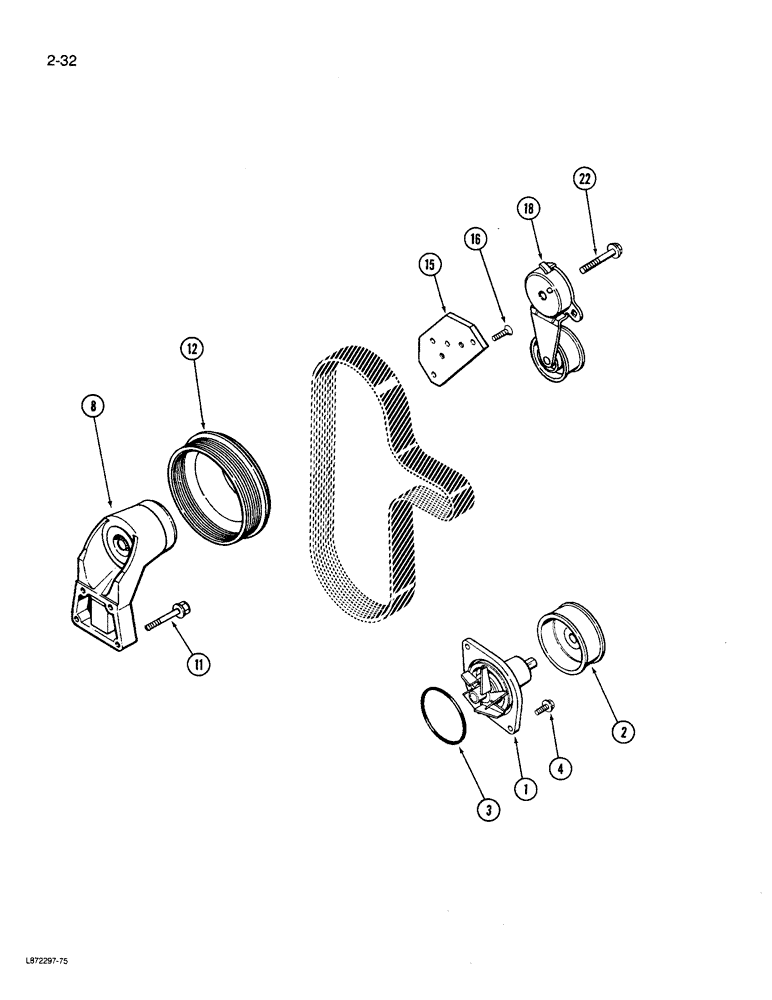

Запчасти Case 580K (02-032) - WATER PUMP SYSTEM, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

AR77471

REMAN-WATER PUMP

PUMP water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

580K

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77471

CORE-WATER PUMP

RETURN NUMBER use this part number to return pump core for credit

1шт.

A77471

PUMP, WATER

KIT water pump, Includes: Ref. 1 thru 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

580K, Replaces P/N's A77471 & AR77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY water, order P/N A77471

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump, order P/N A77471

1шт.

3

22290R1

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

sealing

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J911922

SUPPORT ASSY.

BRACKET ASSEMBLY fan pulley

1шт.

11

J900678

BOLT,Hex Flg, M8 x 40mm, Cl 8.8

hex flange, 8 mm-1.25 x 40 mm

4шт.

12

J914462

PULLEY,163mm OD

fan, Replaces: P/N J908447

1шт.

15

J904548

BRACKET

belt tension

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head slotted, 8 x 25 mm

2шт.

18

J914086

BELT TENSIONER

TENSIONER ASSEMBLY belt, Replaces: P/N J912246

1шт.

22

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT hex flange, 10 mm-1.50 x 70 mm, use with P/N J914086 only

1шт.

22

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

hex flange, 10 mm-1.50 x 70 mm, use with P/N J912246 only

1шт.
