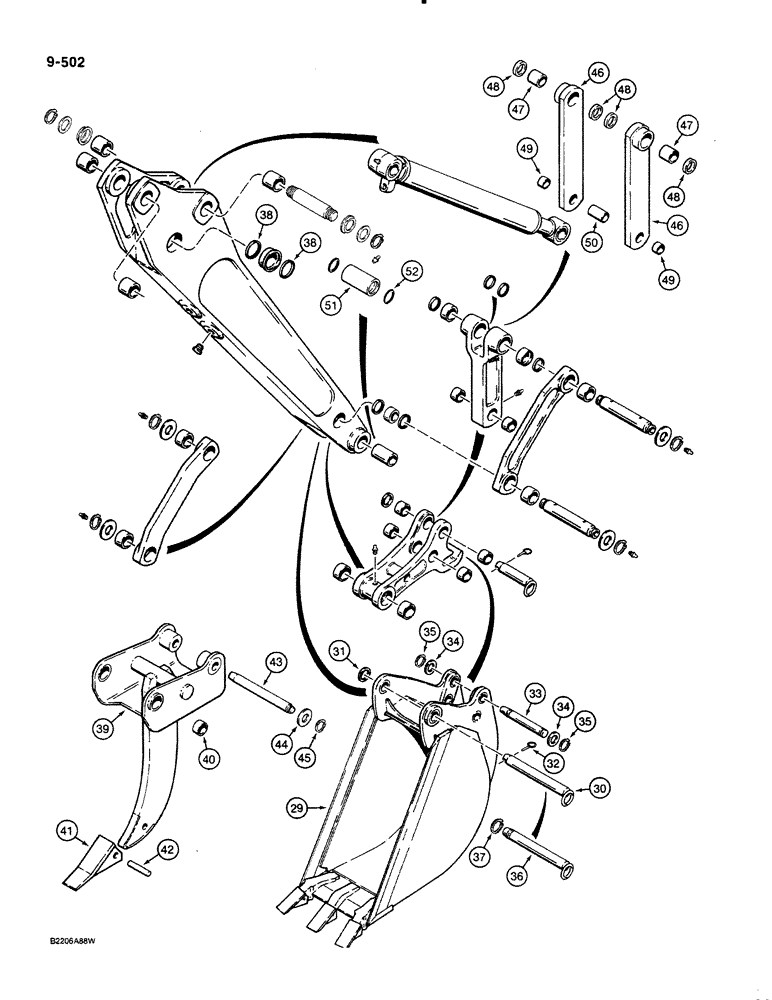

Запчасти Case 580K (09-502) - BACKHOE DIPPER AND BUCKET, TRACTOR P.I.N. JJG0012415 AND AFTER (09) - CHASSIS/ATTACHMENTS

29

REF

INSTRUCTION

BUCKET backhoe, see Figures 09-516 thru 09-526 for bucket options

1шт.

30

D140655

PIN,44.29mm OD x 349mm L

dipper to bucket, all buckets except 12" (305 mm) buckets, for models with 12" bucket see Ref. 36 pin

1шт.

Ref. 30 has been replaced by P/N D150619 pin along with (2) retaining rings P/N D25280 and (2) washers P/N 495-81226.

1шт.

31

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4" bolt size, 1-13/16" ID x 2-1/2" OD x 1/8" thick

1шт.

32

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN lock

1шт.

33

D37614

PIN,38mm Od x 246mm L

bucket coupler

1шт.

34

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

spacer, 1-1/2" (38 mm) ID x 2-1/2" (64 mm) OD x 1/16" (2 mm) thick

2шт.

35

D25279

SNAP RING,M35, Int

RING snap, pin retaining

2шт.

36

D135690

PIN

dipper to bucket, 12" (305 mm) buckets only

1шт.

37

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin, used with ref. 36 pin #175, Ext

1шт.

38

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease

4шт.

D140679

BRACKET

POINT ASSEMBLY frost, backhoe, Includes: Ref. 39 thru 42

1шт.

39

NSS

NOT SOLD SEPARAT

BODY frost point

1шт.

40

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

front point pivot

2шт.

41

D83306

POINT

tooth

1шт.

42

D43417

PIN

tooth point

1шт.

43

D54218

PIN,38.1mm OD x 345.95mm L

link to frost point

1шт.

44

195-63

WASHER,1 5/8" x 3 1/4" x .180"

flat, 1-9/16" ID x 3-1/4" OD x 3/16" thick

2шт.

45

D25279

SNAP RING,M35, Int

RING snap, pin retaining

2шт.

D141074

PITMAN

LINK ASSEMBLY bucket, used with Ref. 16 link in Figure 09-500, may replace Ref. 13 coupler and Ref. 18 link in Figure 09-500 for some attachments, Includes: Ref. 46 thru 49, optional backhoe bucket links for rear attachments

2шт.

46

NSS

NOT SOLD SEPARAT

LINK attachment, optional backhoe bucket links for rear attachments

1шт.

47

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

2-1/8" (54 mm) long, cylinder pivot, optional backhoe bucket links for rear attachments

1шт.

48

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease, optional backhoe bucket links for rear attachments

2шт.

49

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

1" (25 mm) long, pivot, optional backhoe bucket links for rear attachments

1шт.

50

D141075

SPACER,40mm ID x 46.86mm OD x 71mm L

2-25/32" (71 mm) long, links, optional backhoe bucket links for rear attachments

1шт.

51

D141076

SPACER,57.17mm ID x 76.2mm OD x 138mm L

5-7/16" (138 mm) long, dipper end, optional backhoe bucket links for rear attachments

1шт.

52

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

spacer, optional backhoe bucket links for rear attachments

2шт.

53

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT, optional backhoe bucket links for rear attachments

1шт.
