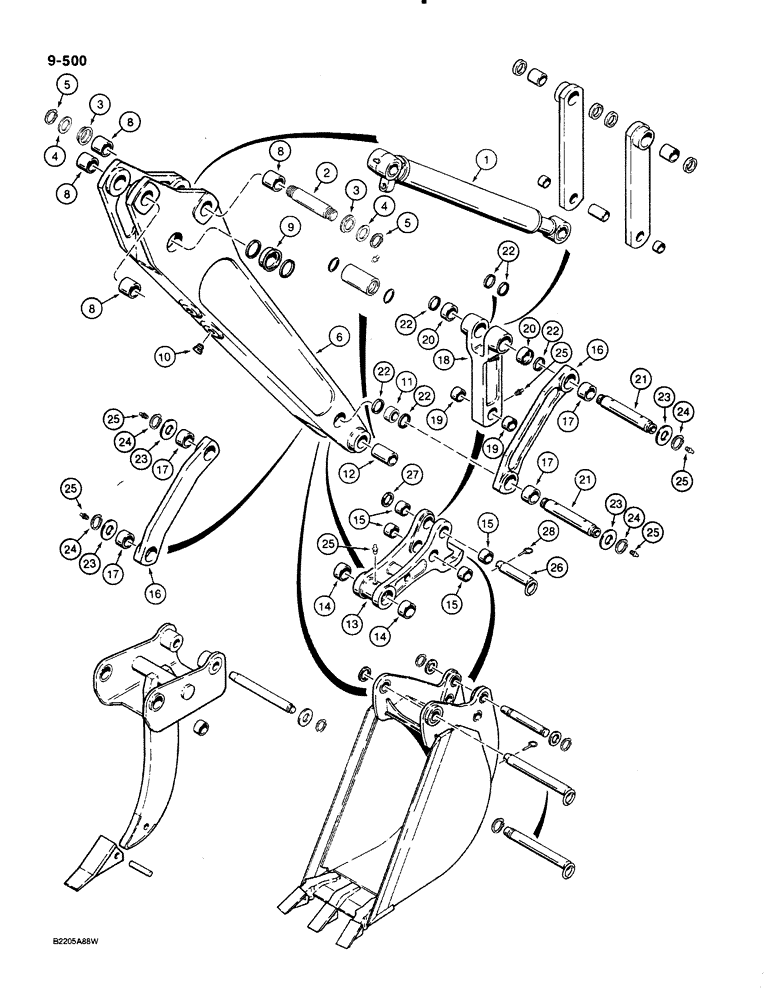

Запчасти Case 580K (09-500) - BACKHOE DIPPER AND BUCKET, TRACTOR P.I.N. JJG0012415 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

G110597

CYLINDER

bucket, see Figure 08-430

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN G110597

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

D138022

PIN,50mm OD x 240mm L

Bucket cylinder closed, Serial Range: end-dipper

1шт.

Either use two of Ref. 3 or two of Ref. 4 with P/N D138022 pin.

1шт.

3

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16" ID x 3" OD x 1/8" thick

2шт.

Either use two of Ref. 3 or two of Ref. 4 with P/N D138022 pin.

1шт.

4

495-81279

WASHER,1.81" ID x 2.75" OD x 0.13" Thk

flat, 1-13/16" ID x 2-3/4" OD x 1/8" thick, plated

2шт.

Either use two of Ref. 3 or two of Ref. 4 with P/N D138022 pin.

1шт.

5

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

D140368

DIPPER ASSEMBLY backhoe, used in production, for service order P/N D127163 dipper in Figure 09-496, Includes: Ref. 6-15

1шт.

6

NSS

NOT SOLD SEPARAT

DIPPER backhoe

1шт.

8

D137217

BUSHING,50.19mm ID x 70mm OD x 54mm L

2" (50 mm) ID x 2-1/8" (54 mm) long, without slot for groove pin, dipper cylinder rod end pivot and bucket cylinder closed end pivot

4шт.

9

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

2-3/4" (70 mm) ID x 1-7/16" (36 mm) long, dipper to boom pivot

2шт.

10

D120450

PLUG

plastic

6шт.

11

D141249

BUSHING,50.19mm ID x 70mm OD x 25.5mm L

2" (50 mm) ID x 1" (25 mm) long, bucket link pivot

2шт.

12

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

1-3/4" (45 mm) ID x 3-11/16" (94 mm) long, bucket coupler pivot

2шт.

D139084

CLIP, SPRING

COUPLER ASSEMBLY bucket, Includes: Ref. 13-15

1шт.

13

NSS

NOT SOLD SEPARAT

COUPLER backhoe bucket

1шт.

14

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

1-3/16" (30 mm) long, special, at dipper

2шт.

15

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8" (28 mm) long, at bucket link

4шт.

16

D141468

PITMAN

LINK bucket guide, with 1" long bushing, Includes: Ref. 17

2шт.

17

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

2" (50 mm) ID x 2-3/8" (60 mm) OD x 1" (25 mm) long

2шт.

18

D140007

PITMAN

LINK bucket dump, with two bushings at forked end, Includes: Ref. 19 and 20

1шт.

19

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8" (28 mm) long

2шт.

20

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

2-1/8" (54 mm) long

2шт.

21

D141142

PIN,50mm OD x 306mm L

12-3/64", (306 mm) long, Bucket cylinder rod end to links and, Serial Range: links-dipper

2шт.

22

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease

8шт.

23

495-81282

WASHER,2 1/16" x 3" x .109"

flat, 2-1/16" ID x 3" OD x 1/8" thick

4шт.

24

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

6шт.

26

D140653

PIN,44.42mm OD x 152mm L

dump link to bucket coupler

1шт.

27

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4" bolt size, 1-13/16" ID x 2-1/2" OD x 1/8" thick

1шт.

28

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN lock, 1.63 ID

1шт.

If an ID of 1.75 is required, use P/N D130037

1шт.
