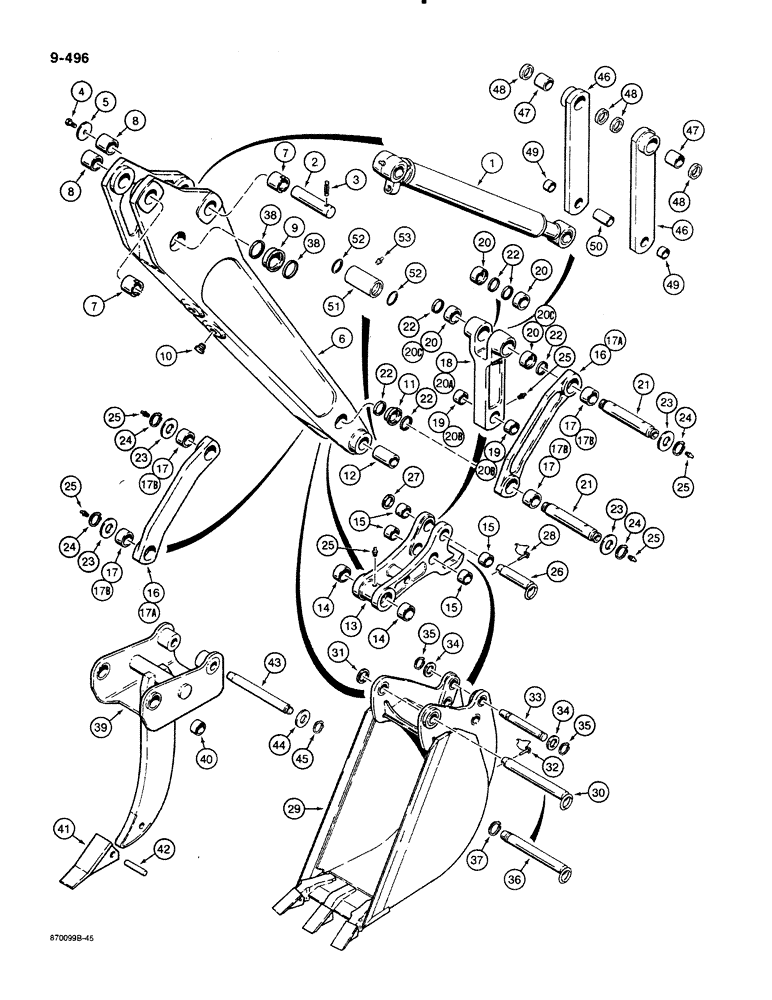

Запчасти Case 580K (09-496) - BACKHOE DIPPER AND BUCKET, PRIOR TO TRACTOR P.I.N. JJG0012415 (09) - CHASSIS/ATTACHMENTS

1

G110597

CYLINDER

bucket, see Figure 08-430

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN G110597

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

D132492

PIN

bucket cylinder closed end dipper

1шт.

3

135-824

GROOVED PIN,1/2" x 2 1/2", Type E, Hardened

PIN, GROOVED, , Center groove 1/2" x 2 1/2", Type E, Hardened

1шт.

4

113-700

BOLT,Hex, 3/4" - 10 x 1", Gr 5

1шт.

5

D133631

WASHER

flat, hardened, special

1шт.

D127163

ASSEMBLY

DIPPER ASSEMBLY backhoe, Includes: Ref. 6 thru 15

1шт.

6

NSS

NOT SOLD SEPARAT

DIPPER backhoe

1шт.

7

D136565

BUSHING,50.22mm ID x 70mm OD x 54mm L

2" (50 mm) ID x 2-1/8" (54 mm) long, with slot for groove pin, right hand side of dipper at dipper cylinder rod end pivot and bucket cylinder closed end pivot

2шт.

8

D137217

BUSHING,50.19mm ID x 70mm OD x 54mm L

2" (50 mm) ID x 2-1/8" (54 mm) long, without slot for groove pin, left hand side of dipper at dipper cylinder rod end pivot and bucket cylinder closed end pivot, for service order P/N D136565 bushing

2шт.

9

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

2-3/4" (70 mm) ID x 1-7/16" (36 mm) long, dipper to boom pivot

2шт.

10

D120450

PLUG

plastic

6шт.

11

D136573

BUSHING,50.19mm ID x 74mm OD x 40mm L

2" (50 mm) ID x 1-7/16" (36 mm) long, bucket link pivot

2шт.

12

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

1-3/4" (45 mm) ID x 3-11/16" (94 mm) long, bucket coupler pivot

2шт.

D139084

CLIP, SPRING

COUPLER ASSEMBLY bucket, Includes: Ref. 13 thru 15

1шт.

13

NSS

NOT SOLD SEPARAT

COUPLER backhoe bucket

1шт.

14

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

1-3/16" (30 mm) long, special, at dipper

2шт.

15

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8" (28 mm) long, at bucket link

4шт.

16

D134486

LINK

bucket guide, with 1-13/32" long bushing, no longer available, order P/N D141468 link, Includes: Ref. 17

2шт.

17

D136574

BUSHING,50.19mm ID x 70mm OD x 36mm L

2" (50 mm) ID x 2-3/4" (70 mm) OD x 1-13/32" (36 mm) long, guide link

2шт.

17a

D141468

PITMAN

LINK bucket guide, with 1" long bushings, Includes: Ref. 17B

2шт.

17b

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

2" (50 mm) ID x 2-3/8" (60 mm) OD x 1" (25 mm) long

2шт.

18

D127171

PITMAN

LINK bucket dump, with four bushings at forked end, no longer available, order P/N D140007 link, Includes: Ref. 19 and 20

1шт.

19

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8" (28 mm) long

2шт.

20

D135075

BUSHING,50.19mm ID x 70mm OD x 30mm L

1-3/16" (30 mm) long, special, with seals

4шт.

20a

D140007

PITMAN

LINK bucket dump, with two bushings at forked end, Includes: Ref. 20B and 20C

1шт.

20b

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8" (28 mm) long

2шт.

20c

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

2-1/8" (54 mm) long

2шт.

21

D132493

PIN,50mm OD x 302mm L

11-7/8" (302 mm) long, bucket cylinder rod end to links and links dipper

2шт.

22

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease

8шт.

23

195-2153

WASHER,1 13/16" x 3 1/2" x .134"

flat, 1-3/4" bolt size, 1-13/16" ID x 3-1/2" OD x 1/8" thick

4шт.

24

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

6шт.

26

D140653

PIN,44.42mm OD x 152mm L

dump link to bucket coupler

1шт.

27

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4" bolt size, 1-13/16" ID x 2-1/2" OD x 1/8" thick

1шт.

28

D130037

HEADED PIN,8.73mm OD

PIN lock

1шт.

29

REF

INSTRUCTION

BUCKET backhoe, see Figures 09-516 thru 09-526 for bucket options

1шт.

30

D140655

PIN,44.29mm OD x 349mm L

dipper to bucket, all buckets except 12" (305 mm) buckets, for models with 12" bucket see Ref. 36 pin

1шт.

31

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4" bolt size, 1-13/16" ID x 2-1/2" OD x 1/8" thick

1шт.

32

D130037

HEADED PIN,8.73mm OD

PIN lock, used with Ref. 30 pin

1шт.

33

D37614

PIN,38mm Od x 246mm L

bucket coupler

1шт.

34

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

spacer, 1-1/2" (38 mm) ID x 2-1/2" (64 mm) OD x 7/64" (3 mm) thick

2шт.

35

D25279

SNAP RING,M35, Int

RING snap, pin retaining

2шт.

36

D135690

PIN

dipper to bucket, 12" (305 mm) buckets only

1шт.

37

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin, used with ref. 36 pin #175, Ext

1шт.

38

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease

4шт.

D140679

BRACKET

POINT ASSEMBLY frost, backhoe, Includes: Ref. 39 thru 42

1шт.

39

NSS

NOT SOLD SEPARAT

BODY frost point

1шт.

40

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

front point pivot

2шт.

41

D83306

POINT

tooth

1шт.

42

D43417

PIN

tooth point

1шт.

43

D54218

PIN,38.1mm OD x 345.95mm L

link to frost point

1шт.

44

195-63

WASHER,1 5/8" x 3 1/4" x .180"

flat, 1-9/16" ID x 3-1/4" OD x 3/16" thick

2шт.

45

D25279

SNAP RING,M35, Int

RING snap, pin retaining

2шт.

D141074

PITMAN

LINK ASSEMBLY bucket, used with Ref. 16 link, may replace Ref.13 coupler and Ref. 18 link for some attachments, Includes: Ref. 46 thru 49, optional backhoe bucket links for rear attachments

2шт.

46

NSS

NOT SOLD SEPARAT

LINK attachment, optional backhoe bucket links for rear attachments

1шт.

47

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

2-1/8" (54 mm) long, cylinder pivot, optional backhoe bucket links for rear attachments

1шт.

48

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease, optional backhoe bucket links for rear attachments

2шт.

49

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

1" (25 mm) long, pivot, optional backhoe bucket links for rear attachments

1шт.

50

D141075

SPACER,40mm ID x 46.86mm OD x 71mm L

2-25/32" (71 mm) long, links, optional backhoe bucket links for rear attachments

1шт.

51

D141076

SPACER,57.17mm ID x 76.2mm OD x 138mm L

5-7/16" (138 mm) long, dipper end, optional backhoe bucket links for rear attachments

1шт.

52

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

spacer, optional backhoe bucket links for rear attachments

2шт.

53

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease. straight, 1/8" NPT, optional backhoe bucket links for rear attachments

1шт.
