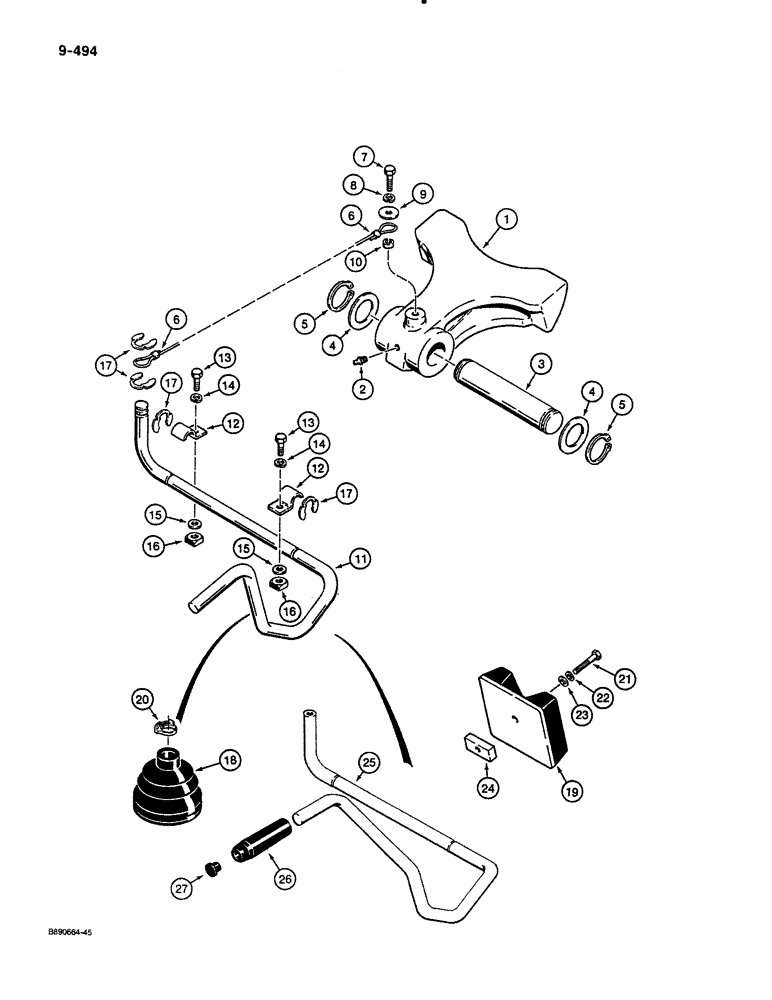

Запчасти Case 580K (09-494) - BOOM LATCH, WITH 5/8" OD ROD (09) - CHASSIS/ATTACHMENTS

1

D143296

ARRESTER

LATCH backhoe boom

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

3

D129227

PIN,40mm OD x 196mm L

- Boom latch to swing tower

1шт.

4

D127843

WASHER

flat, 1-5/8" (41 mm) ID x 2-1/2" (64 mm) OD x 1/8" (3 mm) thick

2шт.

5

800-50040

SNAP RING,M40, Ext

RING snap, pin retaining

2шт.

6

D129641

CABLE

latch control

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 3/8"

1шт.

10

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

13/32" (10 mm) ID x 5/8" (16 mm) OD x 1/4" (6 mm) long

1шт.

11

D142634

THREADED ROD

ROD boom latch control, not used on models with tilt backhoe controls, see Ref. 25 thru 27

1шт.

12

D143723

SHIN

CLAMP rod

2шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

16

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

2шт.

17

D143591

RING, SNAP,12.7mm ID, Ext

RETAINER clip ring

4шт.

18

D86664

BOOT

rod

1шт.

19

D141556

RUBBER BLOCK

BUMPER boom

1шт.

20

D143735

CLAMP,19.1mm - 22.2mm

boot

1шт.

21

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

195-525

WASHER,3/8", SAE

flat, 3/8", plated

1шт.

24

D143425

BAR

PLATE boom stop

1шт.

25

D139927

ROD

boom latch control, used with Ref. 26 and 27 on models with tilt backhoe controls

1шт.

26

D91439

TUBE

KNOB boom latch rod, used with Ref. 25

1шт.

27

353-406

PLUG,Dome, .625" hole, Nylon

P/N D91439 knob

1шт.
